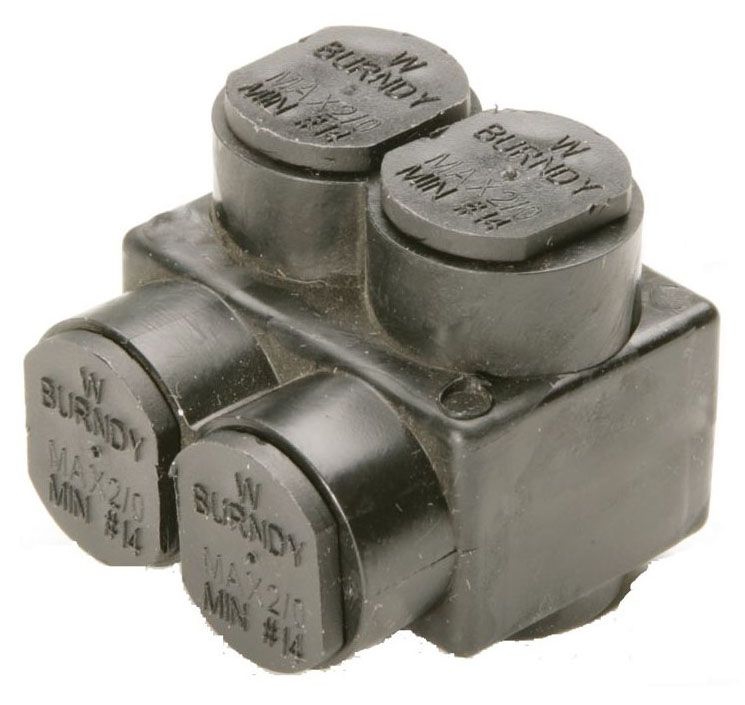

| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | 1PL42 |
| Additional Information | RoHS Compliant; Temperature Rating 90 Deg C; Size 1.08 Inch L x 1.16 Inch W x 1.25 Inch H; Installation Torque 45 Lb-Inch; Hex Key Size 1/8 Inch |
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
| Approval | UL 486B, CSA |
| Base Price | 0.0000 |
| Body Material | Plastisol Covered AL6061-T6 Aluminum |
| Brand Name | UNITAP |
| Cable Entry | 1-Side Entry |
| Catalog Number | 1PL42 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | No |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Aluminum/Copper |
| Conductor Size | 14-4 AWG |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | UV Rated UNITAP ,#14 - 4. |
| Description Short | UV Rated Black UNITAP Connector; PL = Single Sided Entry; PLO = Offset Entry |
| Description Slang | Black Insulation |
| Dimension Height Fraction | 1.25 in |
| Dimension Height Inch | 1.25 in |
| Dimension L Length Overall Mm | 27 mm |
| Dimension Length Overall Inch | 1.08 in |
| Dimension Screw Size Inch | 1/4 |
| Dimension Width Fraction | 1-4/25 in |
| Dimension Width Inch | 1.16 in |
| Dimension Width Mm | 29 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | UV Rated Covering over AL6061-T6 aluminum body saves time, lowering installation costs and eliminates taping;Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area;Range-taking capability reduces the number of connectors necessary to carry in inventory |
| FV BuyAmericanCompliant | Yes |
| FV Conductor AL Str Size Range | 14 AWG - 4 AWG |
| FV Conductor Copper Str Size Range | 14 AWG - 4 AWG |
| FV Product Family | MECHANICAL |
| FV Trade Name | UNITAP |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hex Key | 1/8 |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 45 in-lb |
| Insulation Type | Plastisol |
| InvoiceDescription | BLKTAP,SGL,2 PRTS, 14-4;SGL 2PORT 14-4 BLKTAP |
| Item Number | 28749 |
| Long Description | MECHANICAL MULTI TAP CONNECTOR, 8 AWG (ALUMINUM), 14 AWG STRANDED (COPPER) MIN. CONDUCTOR SIZE; 4 AWG (ALUMINUM), 4 AWG STRANDED (COPPER) MAX. CONDUCTOR SIZE; ALUMINUM/COPPER CONDUCTOR MATERIAL; UL 486B, CSA APPROVAL; 600 V VOLTAGE RATING |
| MSDS Form Number | * |
| Material | Aluminum |
| Material Hardware | Aluminum |
| Maximum Conductor Size | 4 AWG (Aluminum), 4 AWG Stranded (Copper) |
| Minimum Conductor Size | 8 AWG (Aluminum), 14 AWG Stranded (Copper) |
| Minimum Pack Quantity | 1 |
| Model | Type 1PL |
| Noun | * |
| Number Of Ports | 2 |
| Pallet Quantity | 16000 |
| Physical Attribute Number Of Screws | 2 |
| Physical Attribute Screw Type | Allen |
| Plated | N |
| Plating Type | Unplated | |
| Product Description | BLKTAP,SGL,2 PRTS, 14-4 |
| Product Keywords | WEBREADY |
| Product Name | Wiring taps |
| ProductLine | BUR |
| Special Features | Features: UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Wire Entry: Single, Conductor Size (run - Range): 14 - 4 AWG, Hex Size (key): 1/8 IN, Torque: 45 IN-LB, Type Of Insulation: UV Rated Plastisol, Number Of Ports: 2 |
| UNSPSC | 39121427 |
| UPC | 78181028749 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 V |
