| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | 1PLO2/02 |
| Additional Information | ROHS COMPATIBLE; HEX KEY SIZE 3/16 INCH; SIZE 1.52 INCH L X 1.56 INCH W X 1.38 INCH H; TORQUE RATING 120 LB-INCH; TEMPERATURE RATING 90 DEG C; FEATURES OXIDE INHIBITOR, RANGE TAKING CAPABILITY; APPLICATION INDOOR; TYPE OF INSULATION UV RATED PLASTISOL |
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
| Approval | UL |
| Base Price | 0.0000 |
| Body Material | Aluminum |
| Brand Name | UNITAP[TM] |
| Cable Entry | Offset Entry |
| Catalog Number | 1PLO2/02 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | No |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Aluminum/Copper |
| Conductor Size | 14-2/0 AWG |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

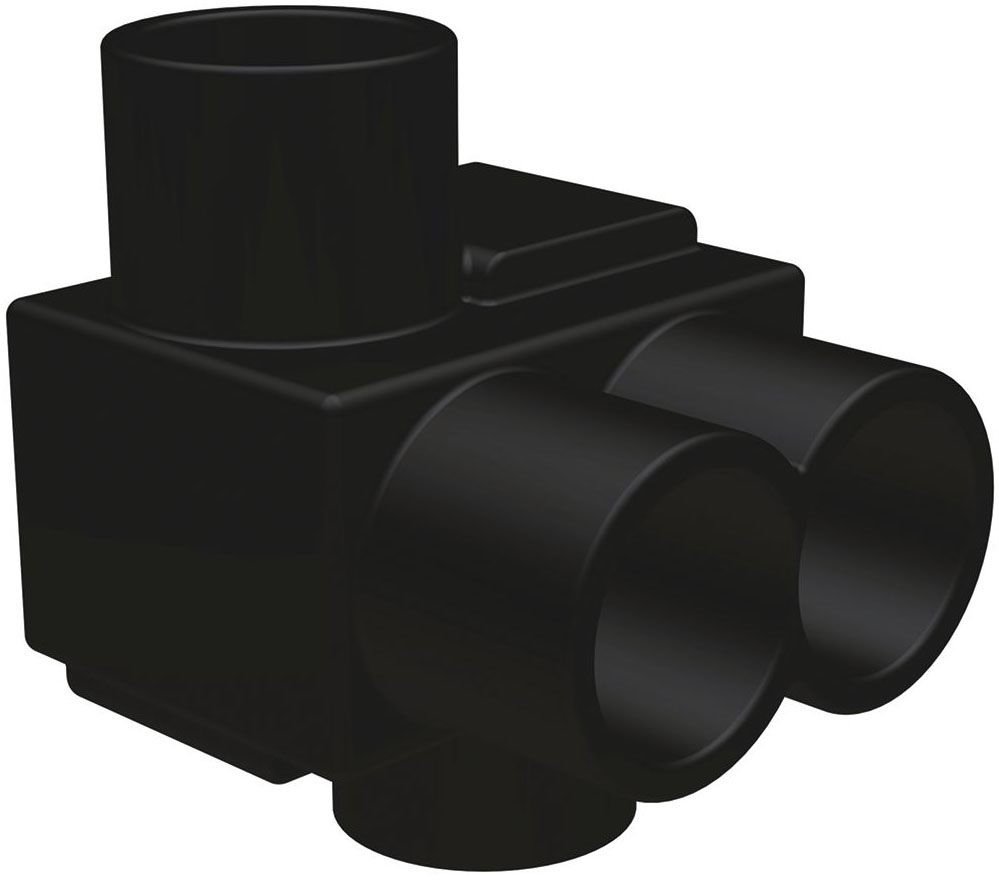

| Description Long | Al Distribution Tap Connectors, UV Black Plastisol Covered, 2 Ports, Offset Entry, #14-2/0 , 600 V, Torque 120 in/lbs, Temp Rating 90 Deg C. |
| Description Short | UV Rated, Black UNITAP; PL = Single Sided Entry; PLO = Offset Entry |
| Description Slang | Black Insulation |
| Dimension Height Fraction | 1.375 in |
| Dimension Height Inch | 1.38 in |
| Dimension L Length Overall Mm | 39 mm |
| Dimension Length Overall Inch | 1.52 in |
| Dimension Screw Size Inch | 5/8 |
| Dimension Width Fraction | 1-14/25 in |
| Dimension Width Inch | 1.56 in |
| Dimension Width Mm | 40 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | UV Rated Covering over AL6061-T6 aluminum body saves time, lowering installation costs and eliminates taping;Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area;Range-taking capability reduces the number of connectors necessary to carry in inventory |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Conductor AL Str Size Range | 8 AWG-2/0 AWG |
| FV Conductor Copper Str Size Range | 14 AWG - 2/0 AWG |
| FV Product Family | MECHANICAL |
| FV Trade Name | UNITAP |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hex Key | 3/16 |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 120 LBS/in |
| Insulation Type | Plastisol |
| InvoiceDescription | BLKTAP,OFF,2 PRTS 2/0-14;2P 2/0-14 O/SET BLKTAP |
| Item Number | 28751 |
| Long Description | MECHANICAL MULTI TAP CONNECTOR, 14 AWG STRANDED MIN. CONDUCTOR SIZE; 2/0 AWG STRANDED MAX. CONDUCTOR SIZE; ALUMINUM/COPPER CONDUCTOR MATERIAL; UL APPROVAL; 600 VOLT VOLTAGE RATING; ALUMINUM BODY MATERIAL; 2 PORT(S); OFFSET ENTRY CABLE ENTRY |
| MSDS Form Number | * |
| Material | Aluminum |
| Material Hardware | Aluminum |
| Maximum Conductor Size | 2/0 AWG Stranded |
| Minimum Conductor Size | 14 AWG Stranded |
| Minimum Pack Quantity | 1 |
| Model | 1PLO |
| Noun | * |
| Number Of Ports | 2 |
| Pallet Quantity | 9600 |
| Physical Attribute Number Of Screws | 2 |
| Physical Attribute Screw Type | Allen |
| Plated | N |
| Plating Type | Unplated | |
| Product Description | BLKTAP,OFF,2 PRTS 2/0-14 |
| Product Keywords | WEBREADY |
| Product Name | Wiring taps |
| ProductLine | BUR |
| Special Features | Features: UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Wire Entry: Offset, Hex Size (key): 3/16 IN, Conductor Size (run - Range): 14 - 2/0 AWG, Torque: 120 IN-LB, Number Of Ports: 2, Type Of Insulation: UV Rated Plastisol |
| UNSPSC | 39121427 |
| UPC | 78181028751 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 Volt |
