| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | 50X106BWSS |
| Additional Information | RoHS Compatible |
| Application | Belleville washers are designed to maintain substantial force when tightened to NEMA-recommended values and finely finished to avoid galling |
| Base Price | 0.0000 |
| Catalog Number | 50X106BWSS |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 65310 |
| Commodity Description | Screws,Nuts,Bolts,Washers |
| CountryOfOrigin | US |
| DDCATEGORY | 600 |

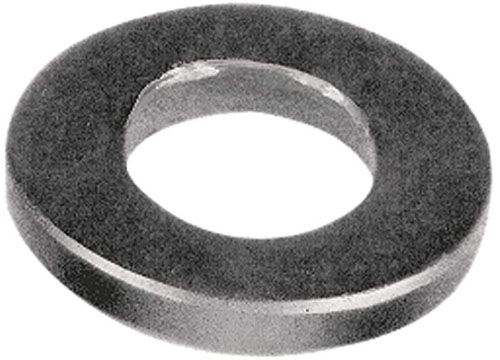

| Description Long | 1/2 x 1.06 Belleville Stainless Steel Washer |
| Description Short | 1/2 x 1.06 Belleville Stainless Steel Washer |
| Description Slang | Stainless Steel Belleville Washers |
| Dimension Bolt Size Fraction | 1/2 |
| Dimension Bolt Size Inch | 0.5 |
| Dimension Inside Diameter Inch | 0.52 |
| Dimension Outside Diameter Inch | 1.05 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Stainless Steel hardware is manufactured from 18-8 non-magnetic material;Nut surfaces and bolt heads have American National Coarse Series, Class #2 fit |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Dimension Bolt Size Fraction | 1/2 |
| FV Product Family | Hardware/Inhibitors/Sealants>Stainless Steel>Nuts, Bolts, Flat Washers, Lock Washers, Belleville Washers, Kits |
| Families | 600 |
| Family Description | Screws,Nuts,Bolts,Washers |
| Image Location | * Image |
| Industry | ELX |
| Inner Diameter | 0.53 Inch |
| InvoiceDescription | 1/2 SS BELLEVILLE WASHER;1/2IN SS WASHER |
| Item Number | 82004 |
| Long Description | BELLEVILLE WASHER, NON-SERRATED TYPE; STAINLESS STEEL MATERIAL; 0.53 INCH INNER DIAMETER; 1.06 INCH OUTER DIAMETER; 1/2 INCH NOMINAL SIZE; 0.1 INCH THICKNESS; ROHS COMPATIBLE |
| MSDS Form Number | * |
| Material | Stainless steel;Stainless Steel |
| Minimum Pack Quantity | 1 |
| Nominal Size | 1/2 Inch |
| Noun | * |
| Outer Diameter | 1.06 Inch |
| Product Description | 1/2 SS BELLEVILLE WASHER |
| Product Keywords | WEBREADY |
| Product Name | "50X106BWSS, 1/2"" x 1.06 Belleville Washer, Stainless Steel" |
| Product Type | BELLEVILLE WASHERS |
| ProductLine | BUR |
| Special Features | 3000 lbs capacity at flattened height |
| Standards RoHS Compliance Status | CM |
| Thickness | 0.1 Inch |
| Type | Washer;Non-Serrated |
| UL Listed | No |
| UNSPSC | 31161802 |
| UPC | 78181082004 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Width | 0.5 in |
