| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | AMS2 |
| Additional Information | RoHS Compliant; Installation Torque 50 Lb-Inch |
| Application | For Use With Copper And Aluminum Conductors |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Body Material | Tin Plated High Strength Aluminum |
| Brand Name | Burndy |
| Catalog Number | AMS2 |
| Certification CSA Approved | Yes |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Aluminum/Copper |
| Conductor Size | 14-2 AWG |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | "Aluminum Mechanical Splice, 2-14 AWG, 3/8"" Screw Dia, 2 Screws, Al/Cu Rated, Tin Plated." |
| Description Short | "Aluminum Mechanical Splice, 2-14 AWG, 3/8"" Screw Dia, 2 Screws, Al/Cu Rated, Tin Plated" |
| Description Slang | Universal Splices |
| Die Size | EEI 11A;Burndy WK840;Burndy 249;Kearney 840;T&B TX;T&B 76 |
| Dimension H1 Height Inch | 0.56 in |
| Dimension Height Fraction | 9/16 |
| Dimension L Length Overall Mm | 40 mm |
| Dimension Length Overall Inch | 1.59 in | |
| Dimension Width Fraction | 9/16 in |
| Dimension Width Inch | 0.56 in |
| Dimension Width Mm | 14 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Standard mounting hole diameter is .562? for 1/2? bolts;The end wall within the cable socket of this design is solid and pressure tight;Connectors are pre-filled and plugged with electrical joint compound;Marked with catalog number, conductor size and die reference;Meets performance requirements of ANSI C119.4 |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hex Size | Slot |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 50 LBS/in |
| Insulation Type | Non-Insulated |
| InvoiceDescription | 2-14 DUAL RATED SPLICE;14-2 2SCR SPLICE |
| Item Number | 24100 |
| Long Description | DUAL RATED SPLICER/REDUCER, IN-LINE WITH BARRIER TYPE; 1.59 INCH L X 0.56 INCH W X 1.56 INCH H SIZE; 12 AWG (ALUMINUM), 12 AWG SOLID (COPPER), 14 AWG STRANDED (COPPER) MIN. CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Aluminum |
| Material Hardware | Aluminum |
| Maximum Conductor Size | 2 AWG (Aluminum), 2 AWG Solid/Stranded (Copper) |
| Minimum Conductor Size | 12 AWG (Aluminum), 12 AWG Solid (Copper), 14 AWG Stranded (Copper) |
| Minimum Pack Quantity | 1 |
| Model | Type AMS |
| Noun | * |
| Number Of Screws | 2 |
| Physical Attribute Number Of Screws | 2 |
| Physical Attribute Screw Type | Slot |
| Plated | Y |
| Plating Type | Tin |
| Product Description | 2-14 DUAL RATED SPLICE |
| Product Keywords | WEBREADY |

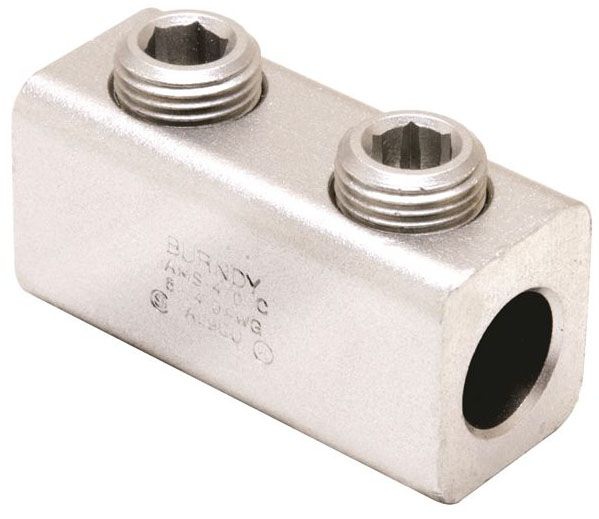

| Product Name | AMS2 Aluminum Set Screw Splice Reducer |
| Product Type | SPLICE REDUCER |
| ProductLine | BUR |
| Rating Minimum Voltage | 600 |
| Screw Size | 3/8 Inch Dia |
| Size | 1.59 Inch L x 0.56 Inch W x 1.56 Inch H |
| Special Features | Features: All Splicer/Reducers Are Dual Rated For Use With Aluminum And Copper Conductors And Are Constructed From High Strength, Tin Plated Aluminum, PENTROX Oxide Inhibiting Joint Compounds Are Recommended For All Aluminum Applications, All Connectors Are Tin-Plated: Provide Low Contact Resistance And Prevents Galvanic Corrosion, Connectors Feature Rounded Bottoms: Facilitates Taping, Solid Center Barrier: Prevents Contact Of Dissimilar Metals, Large Screw Diameters: Ensures Greater Surface Contact With Wires For Maximum Pullout Force, Large Cable Ranges: Each Splice Is Also An Effective Reducing Connector, Slotted Screws: H2 Measured With Maximum Conductors, Reference Only, Conductor Type: Copper, Aluminium, Number Of Screws: 2, Screw Diameter: 3/8 IN, Hex Size: S |
| Standard | ANSI C119.4 |
| Standards Industry Standards Met | UL467 |
| Standards RoHS Compliance Status | EX |
| Sub Brand | SPLICER/REDUCER |
| Temperature Rating | 194 F |
| Type | AMS, Dual Rated;In-Line with Barrier |
| UL Listed | Yes |
| UNSPSC | 39121458 |
| UPC | 78181024100 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
