| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | BIBD2/04 |
| Additional Information | RoHS Compliant; Type Insulated; Hex Key Size 3/16 Inch; Number of Screw 4; Temperature Rating 90 Deg C |
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
| Approval | UL 486B, CSA |
| Base Price | 0.0000 |
| Body Material | Clear Plastisol Covered 6061-T6 Aluminum |
| Brand Name | Burndy;UNITAP |
| Cable Entry | 2-Side Entry |
| Catalog Number | BIBD2/04 |
| Certification CSA Approved | Yes |
| Certification CULus | No | |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Copper/Aluminum |
| Conductor Size | 14-2/0 AWG |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

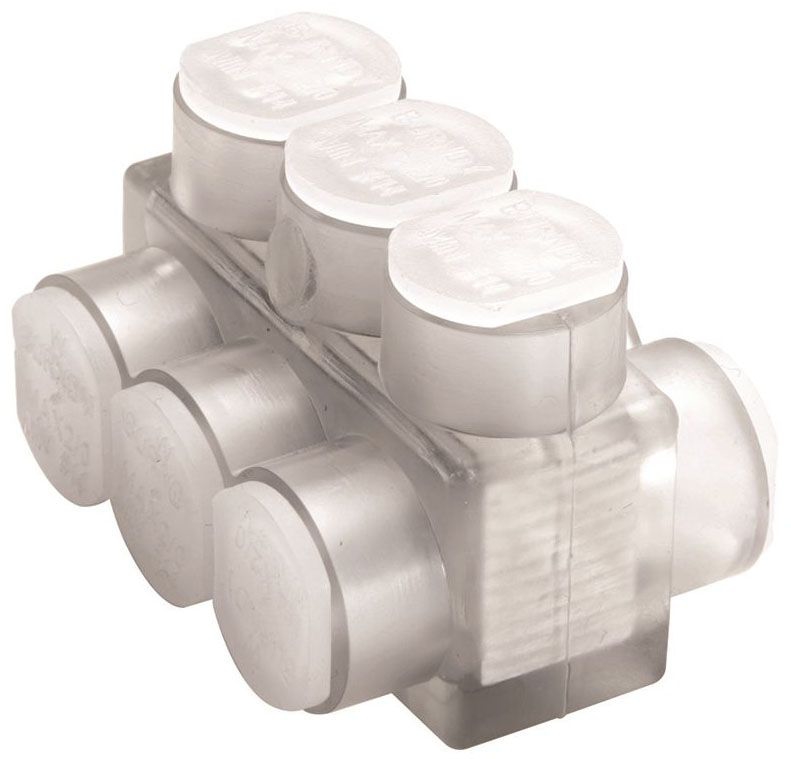

| Description Long | Aluminum Multiple Tap Connector, Clear Insulated, 4 Port, 2 Sided Entry, 14-2/0 AWG, Al/Cu Rated. |
| Description Short | Aluminum Multiple Tap Connector, Clear Insulated, 4 Port, 2 Sided Entry, 14-2/0 AWG, Al/Cu Rated |
| Description Slang | Clear Insulation |
| Dimension Height Fraction | 1.375 in |
| Dimension Height Inch | 1.38 in |
| Dimension L Length Overall Mm | 73 mm |
| Dimension Length Overall Inch | 2.86 in |
| Dimension Width Fraction | 1-14/25 in |
| Dimension Width Inch | 1.56 in |
| Dimension Width Mm | 40 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hex Key | 3/16 |
| Image Location | * Image |
| Industry | ELX |
| Insulation Type | Plastisol |
| InvoiceDescription | 2/0-14 TWO SIDED UNITAP,2.86 IN L;MULTIPLE WIRE TERM |
| Item Number | 22395 |
| Long Description | MULTIPLE TAP CONNECTOR, 14 AWG STRANDED MIN. CONDUCTOR SIZE; 2/0 AWG STRANDED MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL; UL 486B, CSA APPROVAL; 600 VOLT VOLTAGE RATING; CLEAR PLASTISOL COVERED 6061-T6 ALUMINUM BODY MATERIAL; 4 PORT(S) |
| MSDS Form Number | * |
| Material | Aluminum |
| Material Hardware | Aluminum |
| Maximum Conductor Size | 2/0 AWG Stranded |
| Minimum Conductor Size | 14 AWG Stranded |
| Minimum Pack Quantity | 1 |
| Model | BIBD |
| Noun | * |
| Number Of Ports | 4 |
| Physical Attribute Number Of Screws | 4 |
| Physical Attribute Screw Type | Allen |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 2/0-14 TWO SIDED UNITAP,2.86 IN L |
| Product Keywords | WEBREADY |
| Product Name | Double Sided Four Conductor Clear Insulated Mult-Tap Connector |
| Product Type | RUN/TAP |
| ProductLine | BUR |
| Rating Minimum Voltage | 600 |
| Special Features | Clear Plastisol covered AL6061-T6 aluminum body, Clear Plastisol |
| Standard | UL 486A-486B |
| Standards Industry Standards Met | UL 486A-486B |
| Standards RoHS Compliance Status | CM |
| Sub Brand | UNITAP |
| Temperature Rating | 194 |
| Trade Name | UNITAP |
| Type | BIBD, Multi-Port |
| UL Listed | Yes |
| UNSPSC | 39121427 |
| UPC | 78181022395 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 Volt |
