| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | BIBD42 |
| Additional Information | ROHS COMPATIBLE; HEX KEY SIZE 1/8 INCH; SIZE 1.16 INCH L X 1.5 INCH W X 1.25 INCH H; TEMPERATURE RATING 90 DEG C; FEATURES OXIDE INHIBITOR, RANGE TAKING CAPABILITY; APPLICATION INDOOR; TYPE OF INSULATION CLEAR PLASTISOL |
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Body Material | Aluminum |
| Brand Name | UNITAP[TM] |
| Cable Entry | 2-Sided Entry |
| Catalog Number | BIBD42 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | No |
| Certification UL Recognized | No |
| Certified Listed | BABA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Aluminum/Copper |
| Conductor Size | 14-4 AWG |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

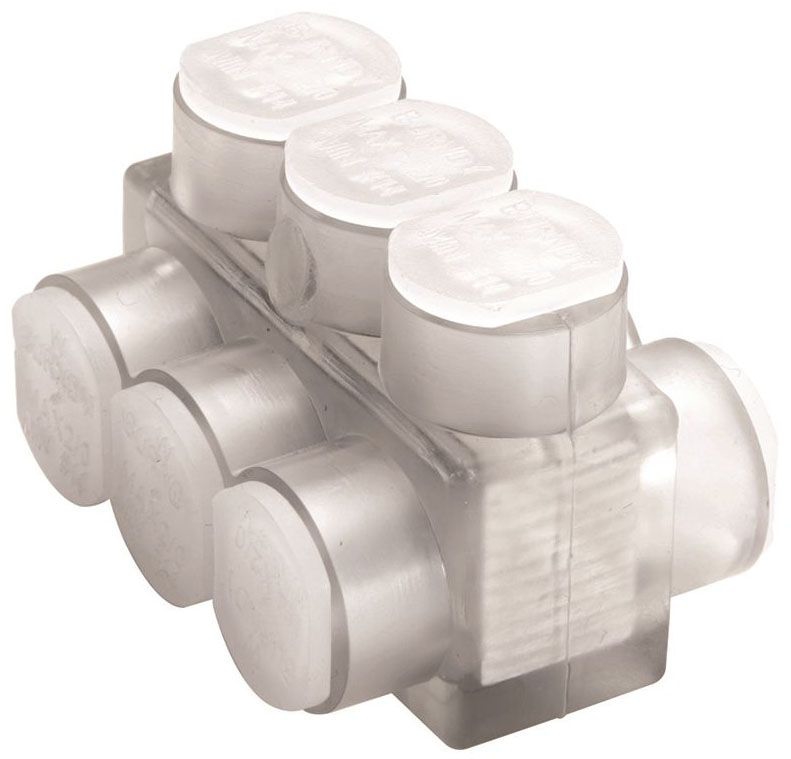

| Description Long | Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 2 Sided Entry, 14-4 AWG, Al/Cu Rated. |
| Description Short | Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 2 Sided Entry, 14-4 AWG, Al/Cu Rated |
| Description Slang | Clear Insulation |
| Dimension Height Fraction | 1.25 in |
| Dimension Height Inch | 1.25 in |
| Dimension L Length Overall Mm | 27 mm |
| Dimension Length Overall Inch | 1.08 in |
| Dimension Screw Size Inch | 1/4 |
| Dimension Width Fraction | 1-1/2 in |
| Dimension Width Inch | 1.50 in |
| Dimension Width Mm | 38 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Clear Plastisol covered AL6061-T6 aluminum body saves times and lowers installation costs and eliminates taping;Clear plastisol allows visual confirmation that conductor is properly inserted;Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area;Range-taking capability reduces number of connectors necessary to carry in inventory |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | BABA Compliant (All status valid till December 2024) |
| FV Conductor AL Str Size Range | 8 AWG-4 AWG |
| FV Conductor Copper Str Size Range | 14 AWG - 4 AWG |
| FV Product Family | MECHANICAL |
| FV Standards Industry Standards Met | UL 486A-486B |
| FV Trade Name | UNITAP |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hex Key | 1/8 |
| Image Location | * Image |
| Industry | ELX |
| Insulation Type | Plastisol |
| InvoiceDescription | 14-4 TWO SIDED UNITAP;MULTIPLE WIRE TERM |
| Item Number | 22381 |
| Long Description | MULTIPLE TAP CONNECTOR, 14 AWG STRANDED MIN. CONDUCTOR SIZE; 4 AWG STRANDED MAX. CONDUCTOR SIZE; ALUMINUM/COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 VOLT VOLTAGE RATING; ALUMINUM BODY MATERIAL; 2 PORT(S); 2-SIDED ENTRY CABLE ENTRY; UNITAP[TM] BRAND |
| MSDS Form Number | * |
| Material | Aluminum |
| Material Hardware | Aluminum |
| Maximum Conductor Size | 4 AWG Stranded |
| Minimum Conductor Size | 14 AWG Stranded |
| Minimum Pack Quantity | 1 |
| Model | BIBD |
| Noun | * |
| Number Of Ports | 2 |
| Pallet Quantity | 9600 |
| Physical Attribute Number Of Screws | 2 |
| Physical Attribute Screw Type | Allen | |
| Product Description | 14-4 TWO SIDED UNITAP |
| Product Keywords | WEBREADY |
| Product Name | Wiring taps |
| ProductLine | BUR |
| Special Features | Clear Plastisol covered AL6061-T6 aluminum body, Clear Plastisol |
| UNSPSC | 39121427 |
| UPC | 78181022381 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 Volt |
