| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | BIBS43FX |
| Additional Information | RoHS Compliant; Current Rating 95 Amp; Insulation Material Vinyl; Cap Material Brown Polyethylene; Hex Key Size 1/8 Inch; Overall Dimension 1.51 Inch Length x 1.16 Inch Width x 1.25 Inch Height; Temperature Rating -40 to 135 Deg C |
| Application | Tap connections and in-line splice/reductions are made quickly and easily with the UNITAP line of connectors |
| Approval | UL, UL 468A/B, CSA C22.2 |
| Base Price | 0.0000 |
| Body Material | Tin Plated AL6061-T6 Aluminum (Body), Clear Plastisol (Cover) |
| Brand Name | UNITAP[TM] |
| Cable Entry | 1-Side Entry |
| Catalog Number | BIBS43FX |
| Certification CSA Approved | Yes |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Color Code | Brown |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Aluminum |
| Conductor Size | 14-4 AWG |
| CountryOfOrigin | US |
| DDCATEGORY | 0 |
| Description Long | Aluminum UNITAP, Single Sided Entry, #14-#4 Class B & C ,#14-#6 Class G,H,I,K, DLO, 3 PORT |
| Description Short | Aluminum UNITAP, Single Sided Entry, #14-#4 Class B & C ,#14-#6 Class G,H,I,K, DLO, 3 PORT |
| Description Slang | Flex Rated |
| Dimension Height Inch | 1.25 in |
| Dimension L Length Overall Mm | 32.26 mm |
| Dimension Length Overall Inch | 1.27 in |
| Dimension Width Inch | 1.13 in |
| Dimension Width Mm | 29 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Clear Plastisol covered AL6061-T6 aluminum body saves times and lowers installation costs and eliminates taping;Clear plastisol allows visual confirmation that conductor is properly inserted;Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area;Range-taking capability reduces number of connectors necessary to carry in inventory;Suitable for Code and Flex Conductor;Color-coordinated conductor port caps display wire range and classes of conductor accepted;Screw port caps show installation torque information for easy reference |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Conductor Copper Str Size Range | 14 AWG - 4 AWG |
| FV Product Family | MECHANICAL |
| FV Standards Industry Standards Met | UL 486A-486B |
| FV Trade Name | UNITAP |
| Families | 0 |
| Family Description | UnCategorized |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 14-4 ONE SIDED UNITAP, 3 PORT;1.51X1.16X1.25 CONN |
| Item Number | 43975 |
| Long Description | MECHANICAL TAP CONNECTOR, 14 AWG CLASS B/C/G/H/I/K/DLO MIN. CONDUCTOR SIZE; 4 AWG CLASS B/C, 6 AWG CLASS G/H/I/K/DLO MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL; UL, UL 468A/B, CSA C22.2 APPROVAL; 600 VOLT VOLTAGE RATING |
| MSDS Form Number | * |
| Material | Aluminum |
| Maximum Conductor Size | 4 AWG Class B/C, 6 AWG Class G/H/I/K/DLO |
| Minimum Conductor Size | 14 AWG Class B/C/G/H/I/K/DLO |
| Minimum Pack Quantity | 1 |
| Model | BIBS |
| Noun | * |
| Number Of Ports | 3 |
| Operating Voltage | 600 V |
| Pallet Quantity | 9600 |
| Plated | Y |
| Plating Type | Tin Plated Aluminum |
| Product Description | 14-4 ONE SIDED UNITAP, 3 PORT |
| Product Keywords | WEBREADY |

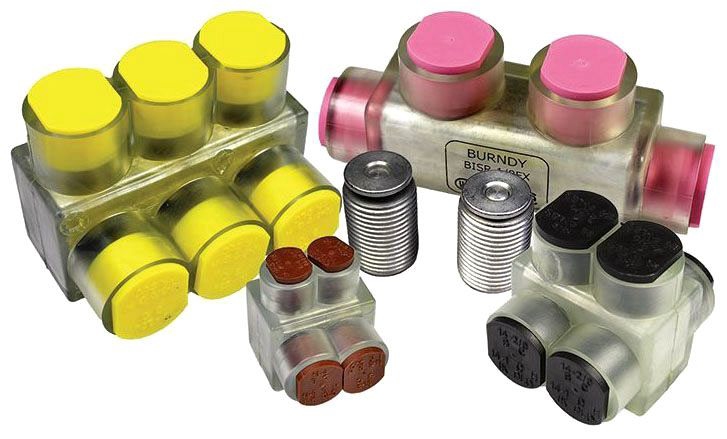

| Product Name | BIBS43FX, Single Sided Flex Rated Three Conductor Clear Insulated Mult-Tap Connector |
| Product Type | RUN/TAP |
| ProductLine | BUR |
| Rating Minimum Voltage | 600 |
| Special Features | Features: Clear Plastisol covered AL6061-T6 aluminum body, Saves time, lowers installation costs, eliminates taping, Oxide inhibitor pre-installed, Inhibits moisture and contaminants from entering the contact area |
| Standard | UL 486A-486B |
| Standards Industry Standards Met | UL 486A-486B |
| Standards RoHS Compliance Status | CM |
| Temperature Rating | 135C |
| Trade Name | UNITAP |
| Type | BIBS, Multi-Port | |
| UNSPSC | 39121427 |
| UPC | 62194543975 |
| Vendor Name | BURNDY INC. |
| Vendor Number | 621945 |
| Vendor Short Name | BUC |
| Voltage Rating | 600 Volt |
