| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | BIBS6003 |
| Additional Information | RoHS Compliant; Type Insulated; Hex Key Size 3/8 Inch; Number of Screw 3; Temperature Rating 90 Deg C |
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
| Approval | UL 486B, CSA |
| Base Price | 0.0000 |
| Body Material | Clear Plastisol Covered 6061-T6 Aluminum |
| Brand Name | UNITAP[TM] |
| Cable Entry | 1-Side Entry |
| Catalog Number | BIBS6003 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | No |
| Certification UL Recognized | No |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Copper/Aluminum |
| Conductor Size | 4 AWG-600 KCMIL |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | Aluminum Multiple Tap Connector, Clear Insulated, 3 Port, 1 Sided Entry, 4 AWG-600 kcmil, Al/Cu Rated. |
| Description Short | Aluminum Multiple Tap Connector, Clear Insulated, 3 Port, 1 Sided Entry, 4 AWG-600 kcmil, Al/Cu Rated |
| Description Slang | Clear Insulation |
| Dimension Height Inch | 2.75 in |
| Dimension L Length Overall Mm | 102 mm |
| Dimension Length Overall Inch | 4.00 in |
| Dimension Width Inch | 2.38 in |
| Dimension Width Mm | 60 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Clear Plastisol covered AL6061-T6 aluminum body saves times and lowers installation costs and eliminates taping;Clear plastisol allows visual confirmation that conductor is properly inserted;Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area;Range-taking capability reduces number of connectors necessary to carry in inventory |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Conductor AL Str Size Range | 4 AWG - 600 kcmil |
| FV Conductor Copper Str Size Range | 4 AWG - 600 kcmil |
| FV Product Family | MECHANICAL |
| FV Standards Industry Standards Met | UL 486A-486B |
| FV Trade Name | UNITAP |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hex Key | 3/8 |
| Image Location | * Image |
| Industry | ELX |
| Insulation Type | Plastisol |
| InvoiceDescription | 600-4 ONE SIDED UNITAP,4 IN L;MULTIPLE WIRE TERM |
| Item Number | 22410 |
| Long Description | MECHANICAL MULTIPLE TAP CONNECTOR, 4 AWG STRANDED MIN. CONDUCTOR SIZE; 600 KCMIL STRANDED MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL; UL 486B, CSA APPROVAL; 600 VOLT VOLTAGE RATING; CLEAR PLASTISOL COVERED 6061-T6 ALUMINUM BODY MATERIAL |
| MSDS Form Number | * |
| Material | Aluminum |
| Maximum Conductor Size | 600 KCMIL Stranded |
| Minimum Conductor Size | 4 AWG Stranded |
| Minimum Pack Quantity | 1 |
| Model | BIBS |
| Noun | * |
| Number Of Ports | 3 |
| Operating Voltage | 600 V |
| Pallet Quantity | 1280 |
| Physical Attribute Number Of Screws | 3 |
| Physical Attribute Screw Type | Allen |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 600-4 ONE SIDED UNITAP,4 IN L |
| Product Keywords | WEBREADY |

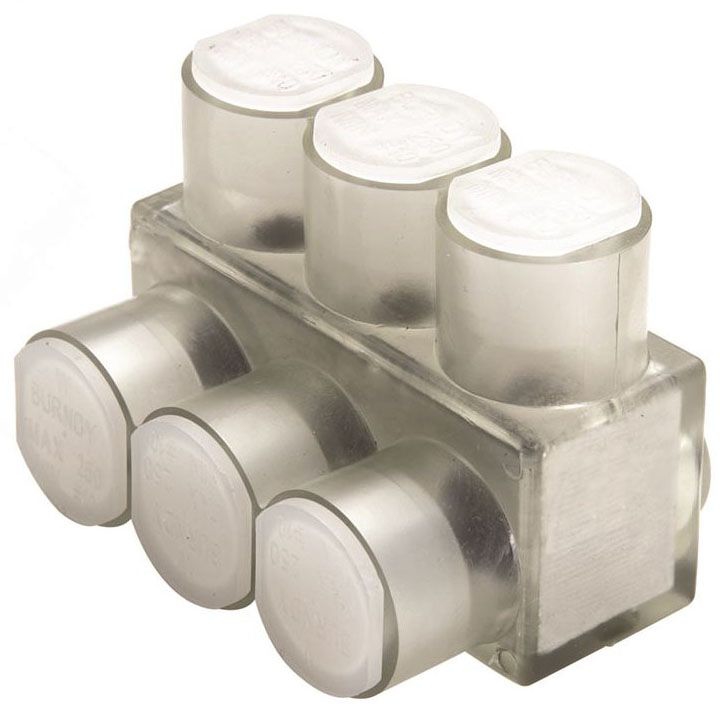

| Product Name | BIBS6003, Single Sided Three Conductor Clear Insulated Multi-Tap Connector | |
| ProductLine | BUR |
| Special Features | Features: UNITAP Rated For Code Conductor Only, Wire Entry: Single, Torque: 375 IN-LB, Hex Size (key): 3/8 IN, Conductor Size (run - Range): 4 AWG - 600 KCMIL, Number Of Ports: 3, Wire Strip Length: 1-1/8 IN, Type Of Insulation: Plastisol |
| UNSPSC | 39121427 |
| UPC | 78181022410 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 Volt |
