| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | BISR500 |
| Additional Information | RoHS Compliant; Application Indoor; Number of Ports 2; Wire Strip Length 1-1/2 Inch; Installation Torque 375 Lb-Inch; Temperature Rating 90 Deg C |
| Application | For Indoor Use Only |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Body Material | 6061-T6 Aluminum |
| Brand Name | UNITAP |
| Catalog Number | BISR500 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | No |
| Certification UL Recognized | No |
| Certified Listed | BABA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Aluminum/Copper |
| Conductor Size | 6 AWG-500 KCMIL |
| CountryOfOrigin | US |
| DDCATEGORY | 596 |

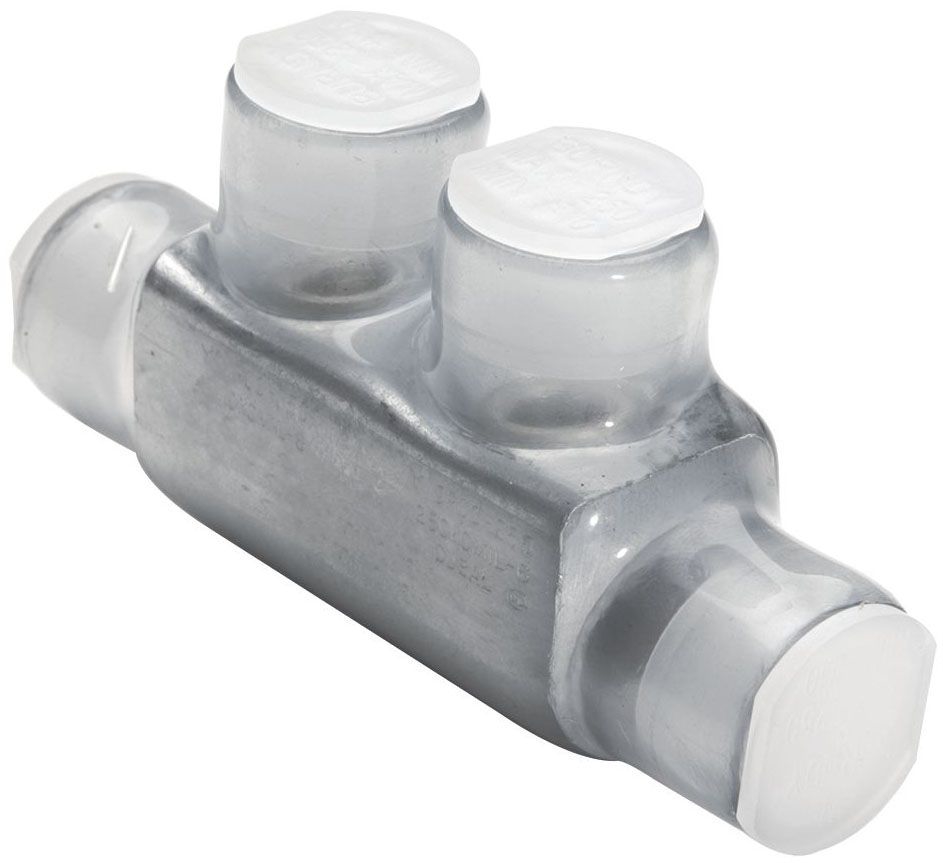

| Description Long | Aluminum In-Line Splice, 6 AWG-500 kcmil. |
| Description Short | Aluminum In-Line Splice, 6 AWG-500 kcmil |
| Description Slang | Clear Insulation |
| Dimension Height Fraction | 2.625 in |
| Dimension Height Inch | 2.62 in |
| Dimension L Length Overall Mm | 127 mm |
| Dimension Length Overall Inch | 5 in |
| Dimension Width Fraction | 1-31/50 in |
| Dimension Width Inch | 1.62 in |
| Dimension Width Mm | 41 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Type BISR In-Line Splice/Reducers are easily installed on code conductor;UL486B Listed, Dual rated AL9CU for any stranded copper or stranded aluminum applications |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | BABA Compliant (All status valid till December 2024) |
| FV Conductor AL Str Size Range | 6 AWG - 500 kcmil |
| FV Conductor Copper Str Size Range | 6 AWG - 500 kcmil |
| FV Product Family | MECHANICAL |
| FV Standards Industry Standards Met | UL 486A-486B |
| FV Trade Name | UNITAP |
| Families | 596 |
| Family Description | Small Terminals & Connectors |
| Hex Key | 5/16 in |
| Hex Size | 3/8 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 275 in-lb |
| Insulation Type | Plastisol;Clear Plastisol |
| InvoiceDescription | 500-6 IN-LINE SPLICE;500MCM IN-LINE SPLICE |
| Item Number | 13408 |
| Long Description | SPLICER/REDUCER, IN-LINE TYPE; 5 INCH L X 1.62 INCH W X 2.62 INCH H SIZE; 6 AWG (ALUMINUM), 6 AWG STRANDED (COPPER) MIN. CONDUCTOR SIZE; 500 KCMIL (ALUMINUM), 500 KCMIL STRANDED (COPPER) MAX. CONDUCTOR SIZE; ALUMINUM/COPPER CONDUCTOR MATERIAL |
| MSDS Form Number | * |
| Material | Aluminum |
| Material Hardware | Aluminum |
| Maximum Conductor Size | 500 KCMIL (Aluminum), 500 KCMIL Stranded (Copper) |
| Minimum Conductor Size | 6 AWG (Aluminum), 6 AWG Stranded (Copper) |
| Minimum Pack Quantity | 1 |
| Model | Type BISR |
| Noun | * |
| Number Of Screws | 2 |
| Operating Voltage | 600 V |
| Pallet Quantity | 900 |
| Physical Attribute Number Of Screws | 2 | |
| Product Description | 500-6 IN-LINE SPLICE |
| Product Keywords | WEBREADY |
| Product Name | Wiring taps |
| ProductLine | BUR |
| Size | 5 Inch L x 1.62 Inch W x 2.62 Inch H |
| Special Features | Features: Clear Plastisol Covered Al6061-T6 Aluminum Body: Saves Time, Lowers Installation Costs, Eliminates Taping, Clear Plastisol: Allows Visual Confirmation That Conductor Is Properly Inserted, Oxide Inhibitor Pre-Installed: Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking: Reduces Number Of Connectors Carried In Inventory, In-Line Splice/Reductions Are Made Quickly And Easily With The Unitap Line Of Connectors, UL486B Listed, Dual-Rated AL9CU For Any Stranded Copper Or Stranded Aluminum Applications, 600 Volt, 90 DEG C, Conductor Type: Run: Stranded Copper Or Stranded Aluminum, Conductor Size (run - Range): 6 AWG - 500 KCMIL, Wire Strip Length: 1-1/2 IN, Hex Size (key): 1/2 IN, Number Of Ports: 2, Type Of Insulation: Clear Plastisol, Torque: 375 IN-LB |
| Type | In-Line |
| UNSPSC | 39121427 |
| UPC | 78181013408 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 V |
