| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | BITO4 |
| Additional Information | RoHS Compliant; Temperature Rating 90 Deg C; Size 1.16 Inch L x 1.5 Inch W x 1.25 Inch H; Hex Key Size 1/8 Inch; Number of Screws 2 |
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
| Approval | UL 486B, CSA |
| Base Price | 0.0000 |
| Body Material | Clear Plastisol Covered AL6061-T6 Aluminum |
| Brand Name | Burndy;UNITAP |
| Cable Entry | 2-Side Entry |
| Catalog Number | BITO4 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | No | |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Aluminum/Copper |
| Conductor Size | 14-4 AWG |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 2 Sided Entry, 14-4 AWG, Al/Cu Rated, 1.16 IN L. |
| Description Short | Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 2 Sided Entry, 14-4 AWG, Al/Cu Rated, 1.16 IN L |
| Description Slang | Clear Insulation |
| Dimension Height Inch | 1.25 in |
| Dimension L Length Overall Mm | 27.44 mm |
| Dimension Length Overall Inch | 1.08 in |
| Dimension Width Inch | 1.50 in |
| Dimension Width Mm | 38 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hex Key | 1/8 |
| Image Location | * Image |
| Industry | ELX |
| Insulation Type | Plastisol |
| InvoiceDescription | 14-4 TWO SIDED UNITAP,1.08 IN L;4AWG 2-ENTRY TERM |
| Item Number | 13413 |
| Long Description | MECHANICAL MULTIPLE TAP CONNECTOR, 8 AWG (ALUMINUM), 14 AWG STRANDED (COPPER) MIN. CONDUCTOR SIZE; 4 AWG (ALUMINUM), 4 AWG STRANDED (COPPER) MAX. CONDUCTOR SIZE; ALUMINUM/COPPER CONDUCTOR MATERIAL; UL 486B, CSA APPROVAL; 600 V VOLTAGE RATING |
| MSDS Form Number | * |
| Material | Aluminum |
| Material Hardware | Aluminum |
| Maximum Conductor Size | 4 AWG (Aluminum), 4 AWG Stranded (Copper) |
| Minimum Conductor Size | 8 AWG (Aluminum), 14 AWG Stranded (Copper) |
| Minimum Pack Quantity | 1 |
| Model | Type BITO |
| Noun | * |
| Number Of Ports | 2 |
| Operating Voltage | 600 V |
| Physical Attribute Number Of Screws | 2 |
| Physical Attribute Screw Type | Allen |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 14-4 TWO SIDED UNITAP,1.08 IN L |
| Product Keywords | WEBREADY |

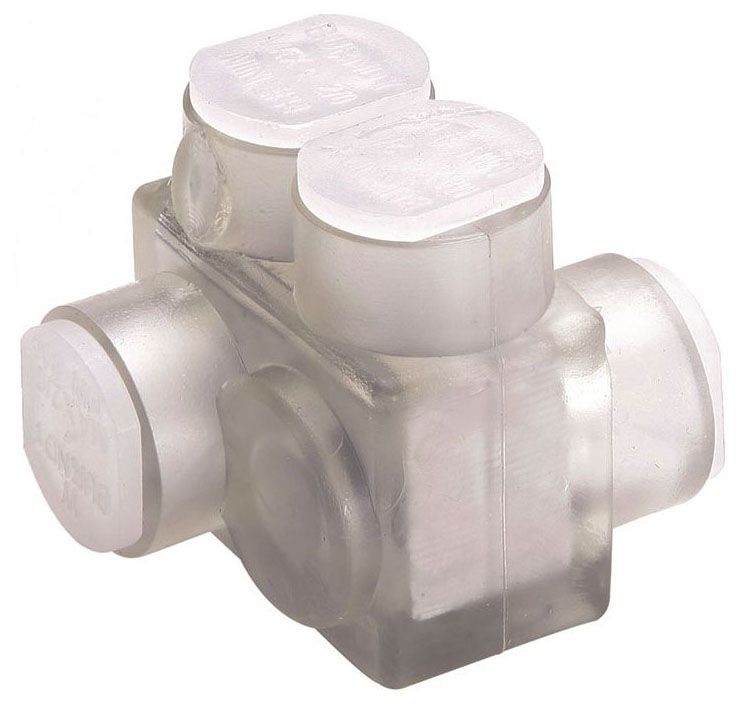

| Product Name | Opposite Side Two Conductor Clear Insulated Multi-Tap Connector |
| Product Type | RUN/TAP |
| ProductLine | BUR |
| Special Features | Features: Clear Plastisol Covered AL6061-T6 Aluminum Body: Saves Time, Lowers Installation Costs, Eliminates Taping, Clear Plastisol: Allows Visual Confirmation That Conductor Is Properly Inserted, Oxide Inhibitor Pre-Installed: Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking: Reduces Number Of Connectors Carried In Inventory, Wire Entry: Double, Torque: 45 IN-LB, Hex Size (key): 1/8 IN, Conductor Size (run - Range): 14 - 4 AWG, Type Of Insulation: Plastisol, Number Of Ports: 2, Wire Strip Length: 5/8 IN |
| Standard | UL 486A-486B |
| Standards Industry Standards Met | UL 486A-486B |
| Standards RoHS Compliance Status | CM |
| Sub Brand | UNITAP |
| Temperature Rating | 90C |
| Trade Name | UNITAP |
| Type | BIT |
| UL Listed | Yes |
| UNSPSC | 39121427 |
| UPC | 78181013413 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 V |
