| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | C11D |
| Additional Information | RoHS Compliant; Rebar Size 4# to #8; Installation Torque 50 Inch-Pound (Pipe/Wire Clamp) |
| Application | For Bare Wire, Connecting Grounding Conductor To Water Pipe Or Copper Tube, Direct Burial Applications In Earth And Concrete |
| Approval | UL 467, CSA |
| Base Price | 0.0000 |
| Catalog Number | C11D |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 92000 |
| Commodity Description | Ground Rods & Grounding Systems |
| Conductor Size | 10 to 2 AWG Solid/Stranded (Copper) |
| CountryOfOrigin | IN |
| DDCATEGORY | 395 |
| Description Long | "Cast Bronze Ground Clamp, Cable to Water Pipe or Copper Tube, 10 - 2 AWG, 1/2""- 1"" Water Pipe, #4 - #8 Rebar." |
| Description Short | "Cast Bronze Ground Clamp, Cable to Water Pipe or Copper Tube, 10 - 2 AWG, 1/2""- 1"" Water Pipe, #4 - #8 Rebar" |
| Dimension Height Inch | 1.81 in |
| Dimension Hole Size Inch | 0.31 in |
| Dimension Hole Size Mm | 8 mm |
| Dimension L Length Overall Mm | 57 mm |
| Dimension Length Overall Inch | 2.25 in |
| Dimension Pad Width Inch | 0.63 in |
| Dimension Width Inch | 0.63 in |
| Dimension Width Mm | 16 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Connects grounding conductor to water pipe or copper tube;D indicates UL467 Listed for Direct Burial in earth and concrete;Supplied with silicon bronze hardware |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Conductor Copper Solid Size Range | 10 AWG-2 AWG |
| FV Conductor Copper Str Size Range | 10 AWG - 2 AWG |
| FV Conductor Rebar Size Range | 4 -8 |
| FV Product Family | Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Ground Rod/Pipe/Tube (GAR/GD/GK)>LC Water Pipe Ground Clamps |
| FV Standards Industry Standards Met | UL467 |
| Families | 395 |
| Family Description | Ground Rods & Grounding Systems |
| IPS Size | 1/2 to 1 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | (2) Screw Connector to Pipe |
| InvoiceDescription | 1/2-1 BARE DIR. BURIAL |
| Item Number | 14234 |
| Long Description | GROUND CLAMP, SOLID CAST BRONZE ALLOY (BODY), DURIUM SILICON BRONZE (HARDWARE) MATERIAL; 2.25 INCH LENGTH X 0.63 INCH WIDTH X 1.81 INCH HEIGHT SIZE; GROUNDING CONDUCTOR TO WATER PIPE/COPPER TUBE, DIRECT BURIAL USED ON |
| MSDS Form Number | * |
| Material | Bronze Alloy;Solid Cast Bronze Alloy (Body), Durium Silicon Bronze (Hardware) |
| Material Hardware | DURIUM Silicon Bronze |
| Minimum Pack Quantity | 1 |
| Noun | * |
| Pallet Quantity | 10000 |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 1/2-1 BARE DIR. BURIAL |
| Product Keywords | WEBREADY |

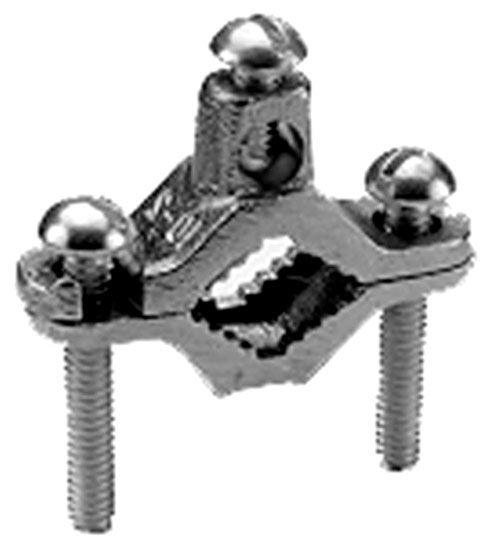

| Product Name | C11D, Cast Bronze Ground Clamp, Cable to Water Pipe, Tube or Rebar |
| Product Type | Mechanical |
| ProductLine | BUR |
| Size | 2.25 Inch Length x 0.63 Inch Width x 1.81 Inch Height |
| Special Features | Features: For Connecting Grounding Conductor To Water Pipe Or Copper Tube, D Indicates UL467 Listed For Direct Burial In Earth And Concrete And Are Supplied With Silicon Bronze Hardware, Rebar Size: #4 - #8, Water Pipe Size: 3/8 - 1 IN, Cross Flats: 0.63 IN, Installation Torque: 50 IN-LB For Pipe And Wire Clamp, Length: 2.25 IN, Width: 0.63 IN, Height: 1.81 IN, Armored Cable: No, Ground Strap: No |
| Standard | UL467 |
| Standards Industry Standards Met | UL467 |
| Standards RoHS Compliance Status | NC | |
| Type | Ground Clamp |
| UNSPSC | 39121408 |
| UPC | 78181014234 |
| Used On | Grounding Conductor to Water Pipe/Copper Tube, Direct Burial |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
