| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | C11N |
| Additional Information | RoHS Compliant; Installation Torque 50 Lb-Inch (Pipe Clamp, Wire Clamp) |
| Application | For Bare Wire, Connecting Grounding Conductor To Water Pipe Or Copper Tube |
| Approval | UL 467, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | C11N |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | No |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 92000 |
| Commodity Description | Ground Rods & Grounding Systems |
| Conductor Size | 10 to 2 AWG Solid/Stranded (Copper) |
| CountryOfOrigin | IN |
| DDCATEGORY | 395 |
| Description Long | "Cast Bronze Ground Clamp, Cable to Water Pipe or Copper Tube, 10 - 2 AWG, 1/2""- 1"" Water Pipe, pipe clamp:50 in-lb." |
| Description Short | "Cast Bronze Ground Clamp, Cable to Water Pipe or Copper Tube, 10 - 2 AWG, 1/2""- 1"" Water Pipe, pipe clamp:50 in-lb" |
| Dimension Height Inch | 1.81 in |
| Dimension Hole Size Inch | 0.31 in |
| Dimension Hole Size Mm | 8 mm |
| Dimension L Length Overall Mm | 57 mm |
| Dimension Length Overall Inch | 2.25 in |
| Dimension Pad Width Inch | 0.63 in |
| Dimension Width Inch | 0.63 in |
| Dimension Width Mm | 16 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Connects grounding conductor to water pipe or copper tube |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Conductor Copper Solid Size Range | 10 AWG-2 AWG |
| FV Conductor Copper Str Size Range | 10 AWG - 2 AWG |
| FV Product Family | Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Ground Rod/Pipe/Tube (GAR/GD/GK)>LC Water Pipe Ground Clamps |
| FV Standards Industry Standards Met | UL467 |
| Families | 395 |
| Family Description | Ground Rods & Grounding Systems |
| IPS Size | 1/2 to 1 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | (2) Screw Connector to Pipe |
| InvoiceDescription | GRD CL BARE WIRE 1/2-1IN;GRD CL BARE WIRE 1/2-1 |
| Item Number | 14228 |
| Long Description | GROUND CLAMP, SOLID CAST BRONZE BODY, ZINC PLATED STEEL HARDWARE MATERIAL; 2.25 INCH L X 0.63 INCH W X 1.81 INCH H SIZE; BARE WIRE, GROUNDING CONDUCTOR TO WATER PIPE/COPPER TUBE USED ON; (2) SCREW CONNECTOR TO PIPE INSTALLATION |
| MSDS Form Number | * |
| Material | Bronze Alloy;Solid Cast Bronze Body, Zinc Plated Steel Hardware |
| Material Hardware | Zinc Plated Steel |
| Minimum Pack Quantity | 1 |
| Noun | * |
| Pallet Quantity | 10000 |
| Plated | N |
| Plating Type | Unplated |
| Product Description | GRD CL BARE WIRE 1/2-1IN |
| Product Keywords | WEBREADY |

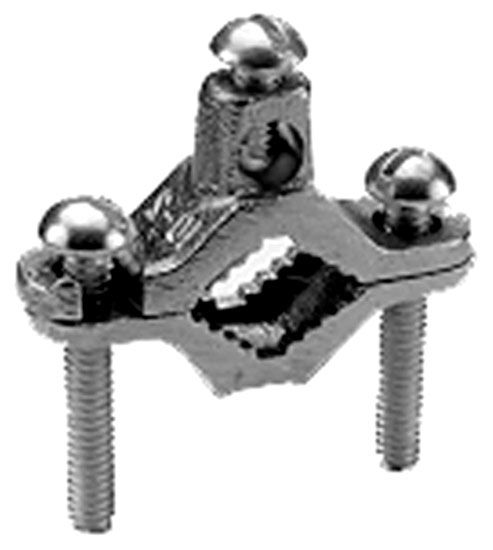

| Product Name | C11N, Cast Bronze Ground Clamp, Cable to Water Pipe or Tube |
| Product Type | Mechanical |
| ProductLine | BUR |
| Size | 2.25 Inch L x 0.63 Inch W x 1.81 Inch H |
| Special Features | Features: For Connecting Grounding Conductor To Water Pipe Or Copper Tube, Water Pipe Size: 3/8 - 1 IN, Installation Torque: 50 IN-LB For Pipe And Wire Clamp, Length: 2.25 IN, Cross Flats: 0.63 IN, Width: 0.63 IN, Height: 1.81 IN, Armored Cable: No, Ground Strap: No |
| Standard | UL467 |
| Standards Industry Standards Met | UL467 |
| Standards RoHS Compliance Status | NC |
| Type | Ground Clamp |
| UL Listed | Yes | |
| UNSPSC | 39121408 |
| UPC | 78181014228 |
| Used On | Bare Wire, Grounding Conductor to Water Pipe/Copper Tube |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
