| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | GAR1526 |
| Additional Information | RoHS Compliant; Rebar Size #9 to #10; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Inch-Pound |
| Application | For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube Fence Posts, Direct Burial Applications |
| Approval | UL 467, CSA |
| Base Price | 0.0000 |
| Brand Name | Burndy |
| Catalog Number | GAR1526 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No | |
| Commerce Sector | Construction Materials |
| Commodity Code | 92000 |
| Commodity Description | Ground Rods & Grounding Systems |
| Conductor Size | 4 to 3/0 AWG Solid (Copper), 5 to 1/0 AWG Stranded (Copper) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | "Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG (Sol.) - 2/0 AWG (Str.), #9 - #10 Rebar, 1-1 /8"" to 1-1/4"" Rod, 1"" Pipe, Bright Dipped." |
| Description Short | "Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG (Sol.) - 2/0 AWG (Str.), #9 - #10 Rebar, 1-1 /8"" to 1-1/4"" Rod, 1"" Pipe, Bright Dipped" |
| Dimension B Length Inch | 1.75 in |
| Dimension Height Fraction | 2-7/8 in |
| Dimension Height Inch | 2.88 in |
| Dimension L Length Overall Mm | 40 mm |
| Dimension Length Overall Inch | 1.56 in |
| Dimension Outside Diameter Inch | 1.31 in |
| Dimension Width Fraction | 2-5/8 in |
| Dimension Width Inch | 2.62 in |
| Dimension Width Mm | 67 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FV Conductor Rod Size Range | 1 1/8 in-1 1/4 in |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| IPS Size | 1 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | U-Bolt to Pipe/Rod |
| Installation Torque Recommended In Lb | 240 LBS/in |
| Installation Torque Recommended Run In Lb | 240 Lb in |
| InvoiceDescription | 4-2/0CU 1IPS;2/0AWG GRND CONN |
| Item Number | 23260 |
| Long Description | MECHANICAL GROUNDING CONNECTOR, BRIGHT DIPPED CAST HIGH COPPER ALLOY, DURIUM SILICON BRONZE (HARDWARE) MATERIAL; 2-5/8 INCH WIDTH X 2-7/8 INCH HEIGHT SIZE; PARALLEL/90 DEGREE COPPER CABLE TO PIPE/ROD, WIRE TO REBAR, FENCE POST, DIRECT BURIAL USED ON |
| MSDS Form Number | * |
| Material | Copper;Bright Dipped Cast High Copper Alloy, Durium Silicon Bronze (Hardware) |
| Material Hardware | DURIUM Silicon Bronze |
| Minimum Pack Quantity | 1 |
| Model | GAR |
| Noun | * |
| Plated | N |
| Plating Type | Bright Dipped |
| Product Description | 4-2/0CU 1IPS |
| Product Keywords | WEBREADY |

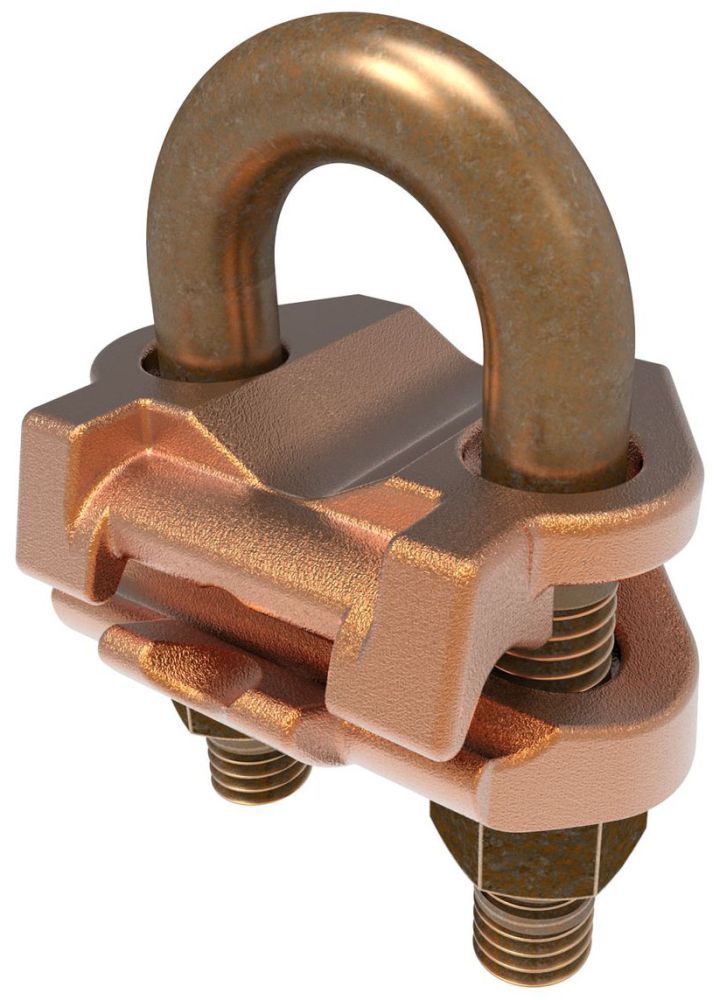

| Product Name | GAR1526, Mechanical Grounding Connector, Cable to Rod or Pipe |
| Product Type | Mechanical |
| ProductLine | BUR |
| Rod Size | 1-1/8 to 1-1/4 Inch |
| Size | 2-5/8 Inch Width x 2-7/8 Inch Height |
| Special Features | Features: High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Wire To Rebar, Fence Post Grounding Connector, Wire To Pipe, Ground Rod Size: 1-1/8 - 1-1/4 IN Outer-Diameter, Tube (ips) Size: 1 IN Outer-Diameter, Stud/bolt Size: 3/8 IN, Rebar Size: #9 - #10, Installation Torque: 240 IN-LB, Width: 2-5/8 IN, Height: 2-7/8 IN |
| Standard | UL467 |
| Standards Industry Standards Met | UL467 |
| Standards RoHS Compliance Status | EX |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GAR |
| U Bolt Type | 244 |
| UL Listed | Yes |
| UNSPSC | 39121408 |
| UPC | 78181023260 |
| Used On | Parallel/90 Degree Copper Cable to Pipe/Rod, Wire to Rebar, Fence Post, Direct Burial |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
