| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | GAR1529 |
| Additional Information | RoHS Compliant; Rebar Size #8 to #9; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Lb-Inch |
| Application | For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Approval | UL 467, UL (Canada and US), CSA |
| Base Price | 0.0000 |
| Catalog Number | GAR1529 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 92000 |
| Commodity Description | Ground Rods & Grounding Systems |
| Conductor Size | 2/0 to 4/0 AWG Solid (Copper), 1/0 AWG to 250 KCMIL Stranded (Copper) |
| CountryOfOrigin | MX |
| DDCATEGORY | 597 |

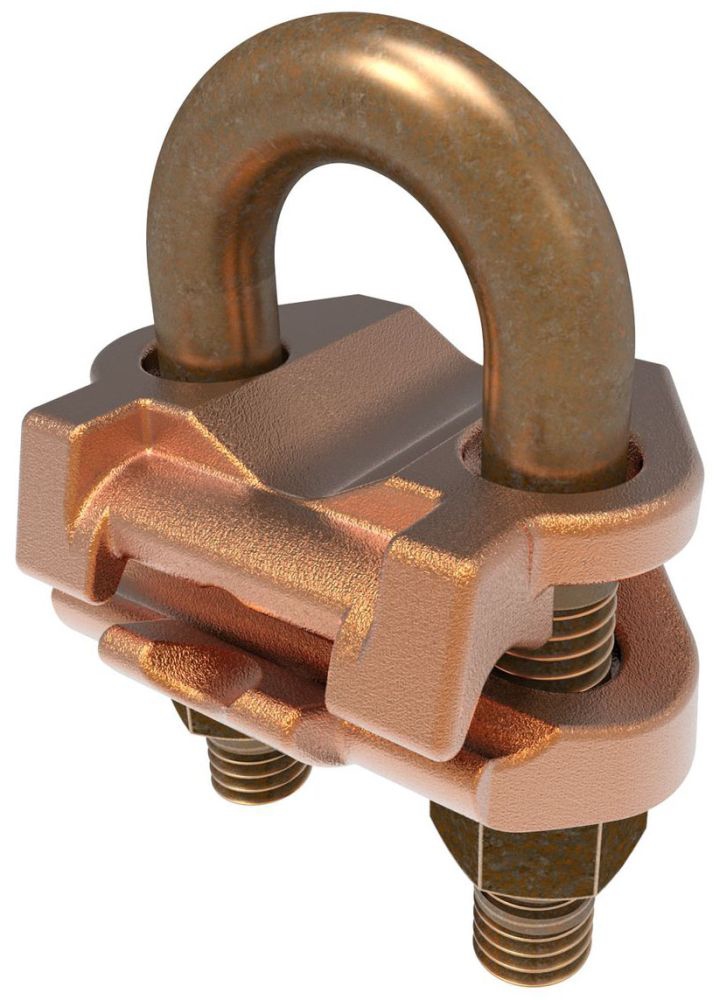

| Description Long | "Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 1"" Pipe, 1-1/8""-1-1/4"" Rod, #9-#10 Rebar, Bright Dipped." |
| Description Short | "Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 1"" Pipe, 1-1/8""-1-1/4"" Rod, #9-#10 Rebar, Bright Dipped" |
| Dimension B Length Inch | 1.75 in |
| Dimension Height Fraction | 3-3/8 in |
| Dimension Height Inch | 3.38 in |
| Dimension L Length Overall Mm | 46 mm |
| Dimension Length Overall Inch | 1.81 in |
| Dimension Outside Diameter Inch | 1.31 in |
| Dimension Width Fraction | 2-5/8 in |
| Dimension Width Inch | 2.62 in |
| Dimension Width Mm | 67 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | One-wrench installation;Parallel or 90 Copper Cable Connection;Rated for Direct Burial in earth or concrete |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Conductor Copper Solid Size Range | 2/0 AWG-4/0 AWG |
| FV Conductor Copper Str Size Range | 1/0 AWG - 250 kcmil |
| FV Conductor Copper Tube Std Size Range | 1 IPS IPS |
| FV Conductor Rebar Size Range | 9-10 |
| FV Conductor Rod Size Range | 1 1/8 in-1 1/4 in |
| FV Product Family | Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Ground Rod/Pipe/Tube (GAR/GD/GK)>Single Conductor(GAR) |
| FV Standards Industry Standards Met | UL467 |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| IPS Size | 1 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | U-Bolt to Pipe/Rod |
| Installation Torque Recommended In Lb | 240 LBS/in |
| Installation Torque Recommended Run In Lb | 240 Lb in |
| InvoiceDescription | 2/0-250CU 1IPS;250MCM GRND CONN |
| Item Number | 23280 |
| Long Description | MECHANICAL GROUNDING CONNECTOR, BRIGHT DIPPED CAST HIGH COPPER ALLOY BODY, DURIUM SILICON BRONZE HARDWARE MATERIAL; 2-5/8 INCH W X 3-3/8 INCH H SIZE; PARALLEL/90 DEGREE COPPER CABLE TO PIPE/ROD, WIRE TO REBAR, FENCE POST, DIRECT BURIAL USED ON |
| MSDS Form Number | * |
| Material | Copper;Bright Dipped Cast High Copper Alloy Body, Durium Silicon Bronze Hardware |
| Material Hardware | DURIUM Silicon Bronze |
| Minimum Pack Quantity | 1 | |
| Model | Type GAR |
| Noun | * |
| Product Description | 2/0-250CU 1IPS |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | BUR |
| Rod Size | 1-1/8 to 1-1/4 Inch |
| Size | 2-5/8 Inch W x 3-3/8 Inch H |
| Special Features | Features: High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Height: 3-3/8 IN, Tube (ips) Size: 1 IN, Ground Rod Size: 1-1/8 - 1-1/4 IN, Rebar Size: #9 (1-1/8 IN) - #10 (1-1/4 IN), Installation Torque: 240 IN-LB, Width: 2-5/8 IN |
| Standard | UL467 |
| Type | GAR |
| UNSPSC | 39121408 |
| UPC | 78181023280 |
| Used On | Parallel/90 Degree Copper Cable to Pipe/Rod, Wire to Rebar, Fence Post, Direct Burial |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
