| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | GAR3903BU |
| Additional Information | RoHS Compliant; Stud/Bolt Size 3/8 Inch-16 TPI; Installation Torque 200 Inch-Pound; Constructional Feature Corrosion Resistant |
| Application | For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes |
| Approval | UL 467, CSA |
| Base Price | 0.0000 |
| Brand Name | Burndy |
| Catalog Number | GAR3903BU |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 92000 |
| Commodity Description | Ground Rods & Grounding Systems |
| Conductor Size | 4 to 4/0 AWG Stranded (Copper) |
| CountryOfOrigin | MX |
| DDCATEGORY | 597 |
| Description Long | "Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 1-1/4""-2"" Pipe, 3/8"" Stud." |
| Description Short | "Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 1-1/4""-2"" Pipe, 3/8"" Stud" |
| Dimension B Length Inch | 1.75 in |
| Dimension Height Inch | 4.00 in |
| Dimension Length Overall Inch | 1.75 in |
| Dimension Outside Diameter Inch | 2.38 in |
| Dimension Width Inch | 4.25 in |
| Dimension Width Mm | 108 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FV Conductor Copper Solid Size Range | 4 AWG - 4/0 AWG |
| FV Conductor Copper Str Size Range | 4 AWG - 4/0 AWG |
| FV Conductor Copper Tube Std Size Range | 1 1/4-2 |
| FV Product Family | Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Ground Rod/Pipe/Tube (GAR/GD/GK)>Single Conductor(GAR) |
| FV Standards Industry Standards Met | UL467 |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| IPS Size | 1-1/4 to 2 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | U-Bolt to Pipe/Rod, Swivel Cable Clamp |
| Installation Torque Recommended In Lb | 200 LBS/in |
| InvoiceDescription | 4-4/0, 1-1/4 TO 2 IPS DIRECT BURIAL;1-1/4-2IN GRD CONN |
| Item Number | 00150 |
| Long Description | MECHANICAL GROUNDING CONNECTOR, HIGH COPPER ALLOY, DURIUM SILICON BRONZE (HARDWARE) MATERIAL; 4.25 INCH WIDTH X 4 INCH HEIGHT SIZE; PARALLEL/90 DEGREE COPPER GROUND CONDUCTOR TO WATER PIPE/ROD, DIRECT BURIAL USED ON |
| MSDS Form Number | * |
| Material | Copper Alloy;High Copper Alloy, Durium Silicon Bronze (Hardware) |
| Material Hardware | DURIUM Silicon Bronze |
| Minimum Pack Quantity | 1 |
| Model | GAR-BU |
| Noun | * |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 4-4/0, 1-1/4 TO 2 IPS DIRECT BURIAL |
| Product Keywords | WEBREADY |

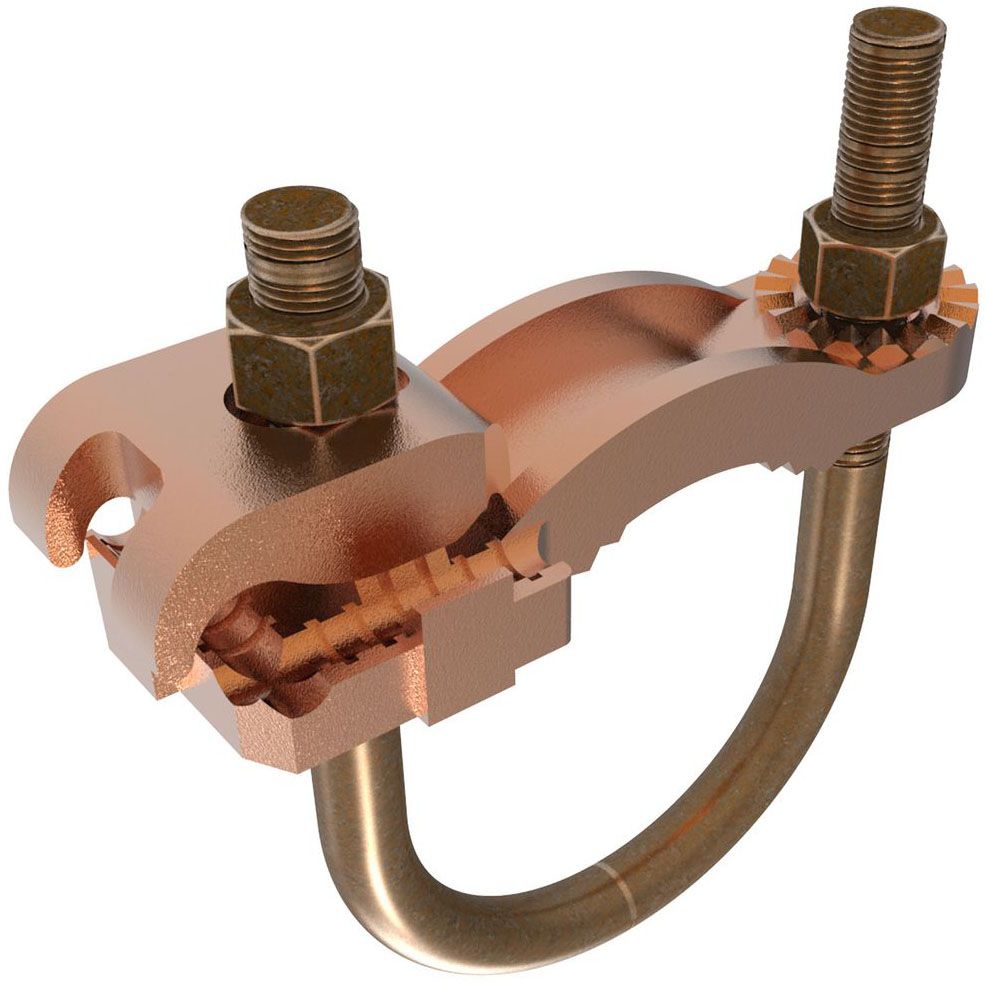

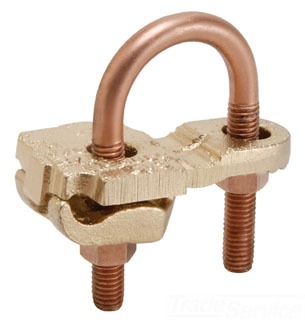

| Product Name | GAR3903BU, Mechanical Grounding Connector, Conductor to Water Pipe |
| Product Type | Mechanical |
| ProductLine | BUR |
| Rod Size | 1.66 to 2.38 Inch |
| Size | 4.25 Inch Width x 4 Inch Height |
| Special Features | Features: Type GAR-BU Is A High-Conductivity Copper Ground Connector For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Cable Clamp Swivels At 90 DEG, Permits Parallel Grounding Of One Pipe Or A 90 DEG Cable Run For Grounding Several Parallel Pipes, One-Wrench Installation, Simplified Installation, DURIUM Silicon Bronze Hardware (-BU Series), Long Lasting Corrosion Resistance And Acceptable For Direct Burial In Earth Or Concrete, UL467 Listed, Provides Quality Assurance To Recognized Industry NEC Standards From An Independent Party, Ground Rod Size: 1-1/4 - 2 IN, Tube (ips) Size: 1-1/4 - 2 IN, Height: 4 IN, Width: 4-1/4 IN, Installation Torque: 240 IN-LB |
| Standard | UL467 |
| Standards Industry Standards Met | UL467 |
| Standards RoHS Compliance Status | CM |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GAR-BU |
| U Bolt Type | 1032 |
| UNSPSC | 39121408 |
| UPC | 78181000150 |
| Used On | Parallel/90 Degree Copper Ground Conductor to Water Pipe/Rod, Direct Burial |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
