| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | GB26 |
| Additional Information | RoHS Compatible; Width 1-1/2 Inch; Installation Torque 240 Lb-Inch |
| Application | For Copper Cable To Bar, Direct Burial Cable |
| Approval | UL 467, CSA |
| Bar Thickness | 1/4 Inch |
| Bolt Size | 3/8 Inch |
| Catalog Number | GB26 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 92000 |
| Commodity Description | Ground Rods & Grounding Systems |
| Conductor Size | 4 AWG Solid to 2/0 AWG Stranded |
| CountryOfOrigin | MX |
| DDCATEGORY | 597 |
| Description Long | "Mechanical Grounding Connector, Cable to 1/4"" Thick Bar, 4 AWG (Sol)-2/0 AWG (Str), 3/8"" Stud, Silicon Bronze Hardware." |
| Description Short | "Mechanical Grounding Connector, Cable to 1/4"" Thick Bar, 4 AWG (Sol)-2/0 AWG (Str), 3/8"" Stud, 1-1/2 IN Width" |
| Dimension Height Inch | 1.74 in |
| Dimension L Length Overall Mm | 24 mm |
| Dimension Length Overall Inch | 0.94 in |
| Dimension Width Fraction | 1-3/7 in |
| Dimension Width Inch | 1.42 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | "High copper alloy ground connector for joining a range of cable to 1/4"" thick bar;One-wrench installation;Suitable for Direct Burial in earth or concrete;Type GB separates cable from bar;UL467 Listed" |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Conductor Copper Solid Size Range | 4 AWG-2/0 AWG |
| FV Conductor Copper Str Size Range | 4 AWG - 2/0 AWG |
| FV Product Family | Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Bar/Flat |
| FV Standards Industry Standards Met | UL467 |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Height | 2 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 240 lb-in |
| InvoiceDescription | 4-2/0 CU-BAR 1 PC GRD;2/0AWG GRND CONN |
| Item Number | 23121 |
| Long Description | GROUND CONNECTOR, CAST COPPER ALLOY BODY, DURIUM BOLT/NUT/LOCKWASHER MATERIAL; 2 INCH; CABLE TO BAR, DIRECT BURIAL USED ON; UL 467, CSA APPROVAL; 4 AWG SOLID TO 2/0 AWG STRANDED CONDUCTOR SIZE; 3/8 INCH BOLT SIZE; 1/4 INCH BAR THICKNESS; ROHS COMPATIBLE |
| MSDS Form Number | * |
| Material | Copper Alloy;Cast Copper Alloy Body, Durium Bolt/Nut/Lockwasher |
| Material Type Screw | DURIUM Silicon Bronze |
| Minimum Pack Quantity | 1 |
| Model | GB |
| Noun | * |
| Pallet Quantity | 6250 |
| Physical Attribute Screw Type | Hexagonal Bolt |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 4-2/0 CU-BAR 1 PC GRD |
| Product Keywords | WEBREADY |

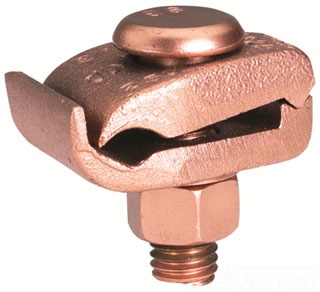

| Product Name | GB26, Mechanical Grounding Connector, Cable to Bar |
| Product Type | Mechanical |
| ProductLine | BUR |
| Special Features | Features: High Copper Alloy Ground Connector For Joining A Range Of Cable To 1/4 IN Thick Bar, Type GB Separates Cable From Bar, One-Wrench Installation, UL467 Listed, The High Copper Alloy Cast Body And DURIUM Bolts, Nuts, And Lockwashers Make The GB And GBM Suitable For Direct Burial In Concrete Or Ground, Width: 1-1/2 IN, Installation Torque: 240 IN-LB, Height: 2 IN, Bar Thickness: 1/4 IN |
| Standard | UL467 |
| Standards Industry Standards Met | UL467 |
| Standards RoHS Compliance Status | EX | |
| Type | GB |
| UNSPSC | 39121408 |
| UPC | 78181023121 |
| Used On | Cable to Bar, Direct Burial |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
