| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | GC15A |
| Additional Information | RoHS Compliant |
| Application | For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit |
| Approval | UL 467 |
| Base Price | 0.0000 |
| Catalog Number | GC15A |
| Certification ETL | No |
| Certification UL Listed Direct Burial | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 92000 |
| Commodity Description | Ground Rods & Grounding Systems |
| Conductor Size | 8 to 4/0 AWG (Aluminum), 14 to 1/0 AWG Solid/Stranded (Copper) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

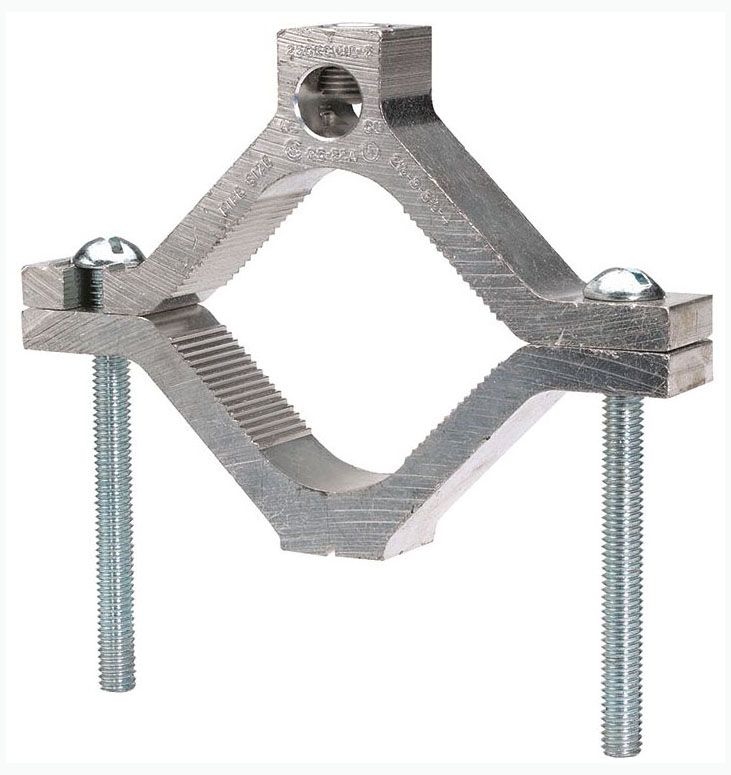

| Description Long | "Mechanical Grounding Connector, Cable to Water Pipe, 14 AWG - 1/0 AWG, 1/2"" - 1"" Pipe, Al/Cu Rated." |
| Description Short | Cable to Water Pipe;Mechanical Ground Connector |
| Dimension Hole Size Inch | 0.40 in |
| Dimension Hole Size Mm | 10 mm |
| Dimension L Length Overall Mm | 57 mm |
| Dimension Length Overall Inch | 2.25 in |
| Dimension Pad Width Inch | 0.69 in |
| Dimension Width Fraction | 11/16 in |
| Dimension Width Inch | 0.69 in |
| Dimension Width Mm | 18 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Clamps are range taking, only 3 catalog numbers cover the complete range of applications from 1/2 to 4 inches;Dual-rated for both copper and aluminum conductors providing maximum flexibility;Tin-plated to provide contact resistance and prevent galvanic corrosion;UL467 Listed |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Conductor Copper Solid Size Range | 14 AWG-1/0 AWG |
| FV Conductor Copper Str Size Range | 14 AWG - 1/0 AWG |
| FV Product Family | Grounding and Bonding Connectors>Aluminum Grounding Connectors |
| FV Standards Industry Standards Met | UL467 |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| IPS Size | 1/2 to 1 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | (2) Slotted Screw Wire Connector to Pipe |
| Installation Torque Recommended In Lb | 180 LBS/in |
| InvoiceDescription | 1/0-14, 1/2-3/4-1 PIPE;14-1/0 GROUND CLAMP |
| Item Number | 24000 |
| Long Description | GROUND CLAMP, HIGH-STRENGTH TIN PLATED EXTRUDED ALUMINUM ALLOY MATERIAL; 2-1/4 INCH LENGTH X 11/16 INCH WIDTH SIZE; COPPER/ALUMINUM CONDUCTOR TO COPPER WATER PIPE/CONDUIT USED ON; (2) SLOTTED SCREW WIRE CONNECTOR TO PIPE INSTALLATION; UL 467 APPROVAL |
| MSDS Form Number | * |
| Material | Aluminum;High-Strength Tin Plated Extruded Aluminum Alloy |
| Material Type Screw | Steel |
| Minimum Pack Quantity | 1 |
| Model | GC-A |
| Noun | * |
| Pallet Quantity | 6000 |
| Physical Attribute Screw Type | Slot |
| Plated | Y |
| Plating Type | Tin |
| Product Description | 1/0-14, 1/2-3/4-1 PIPE |
| Product Keywords | WEBREADY |
| Product Name | "GC15A, Mechanical Grounding Connector, Cable to Water Pipe, #14-1/0 AWG, 1/2""-1"" Pipe, Al/Cu Rated" |
| Product Type | Mechanical |
| ProductLine | BUR |
| Size | 2-1/4 Inch Length x 11/16 Inch Width |
| Special Features | Features: Ground Clamps Are UL Listed For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit, All Clamps Are Constructed From Tin-Plated High Strength Extruded Aluminum Alloy, PENETROX Oxide Inhibiting Compounds Are Recommended For All Aluminum, Clamps Are Dual Rated For Both Copper And Aluminum Conductors: Maximum Flexibility Of Application, All Connectors Are Tin Plated: Provide Low Contact Resistance And Prevents Galvanic Corrosion, All Clamps Are Range Taking: Only 3 Catalog Numbers Covers Complete Range Of Applications From 1/2 4 IN, Set Screw Type: Slot, Length: 2-1/4 IN, Hex Size: S, Width: 11/16 IN |
| Standard | UL467 |
| Standards Industry Standards Met | UL467 |
| Standards RoHS Compliance Status | CM |
| Temperature Rating | -0.4 |
| Type | GC-A, Dual Rated |
| UL Listed | Yes | |
| UNSPSC | 39121408 |
| UPC | 78181024000 |
| Used On | Copper/Aluminum Conductor to Copper Water Pipe/Conduit |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
