BUR GRC58

5/8 IN GRD ROD CLAMP

Page Loading...
BURNDY (FCI BURNDY)
5/8 IN GRD ROD CLAMP

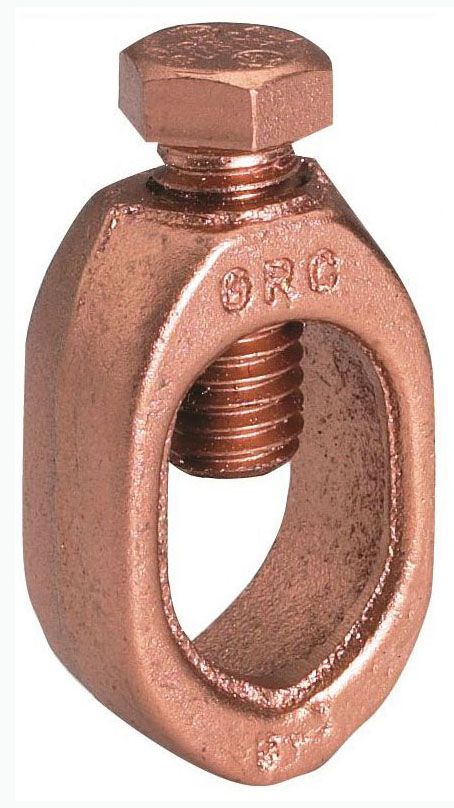

Mouse over image to zoom, click to enlarge

Description:
5/8 IN GRD ROD CLAMP

UPC:  78181023096

Part Number: GRC58

UNSPSC: 39121408

Status:  UNKNOWN

Retail Price:  $8.43 / EA
Your Price:  $2.39 / EA


Quantity  EA

Specifications

Manufacturer Name BURNDY (FCI BURNDY)
MfgPartNo GRC58
Additional Information RoHS Compliant; Stud/Bolt Size 3/8 Inch
Application For Joining A Range Of Cable To Copper Clad, Galvanized Steel, And Stainless Steel Ground Rods, Direct Burial Applications In Earth And Concrete
Approval UL 467, CSA
Base Price 0.0000
Brand Name Burndy
Catalog Number GRC58
Certification CSA Approved No
Certification CULus No
Certification ETL No
Certification UL Listed Direct Burial Yes
Certification UL Recognized No
Commerce Sector Construction Materials
Commodity Code 92000
Commodity Description Ground Rods & Grounding Systems
Conductor Size 10 AWG Solid (Copper), 12 to 1 AWG Stranded (Copper)
CountryOfOrigin MX
DDCATEGORY 597
Description Long "Mechanical Ground Rod Clamp, For Cable to Rod, High Strength, 10 AWG (Sol)- 1 AWG (Str), 5/8"" Drive Rod, 3/8"" Stud."
Description Short "Mechanical Ground Rod Clamp, For Cable to Rod, High Strength, 10 AWG (Sol)- 1 AWG (Str), 5/8"" Drive Rod, 3/8"" Stud"
Dimension B Length Inch 0.57 in
Dimension Height Inch 2.18 in
Dimension Length Side B Inch 0.63 in
Dimension Width Inch 0.95 in
Dimension Width Mm 24 mm
Directory CIS
EU RoHS Indicator Yes
FV Conductor Copper Solid Size Range 10 AWG
FV Conductor Copper Str Size Range 12 AWG-1 AWG
FV Product Family Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Ground Rod/Pipe/Tube (GAR/GD/GK)>Acorn Clamps (GRC/GRL)
FV Standards Industry Standards Met RUS
Families 597
Family Description Large Terminals & Connectors
Image Location * Image
Industry ELX
Installation (1) Hex Head Bolt
Installation Torque Recommended In Lb 170 in-lb
InvoiceDescription 5/8 IN GRD ROD CLAMP;5/8 GROUND ROD CLAMP
Item Number 23096
Long Description GROUND ROD CLAMP, HIGH-STRENGTH CAST COPPER ALLOY MATERIAL; 0.63 INCH LENGTH X 0.95 INCH WIDTH X 2.19 INCH HEIGHT SIZE; COPPER CABLE TO COPPER ROD, DIRECT BURIAL USED ON; (1) HEX HEAD BOLT INSTALLATION; UL 467, CSA APPROVAL
MSDS Form Number *
Material Copper Alloy;High-Strength Cast Copper Alloy
Minimum Pack Quantity 1
Model GRC
Noun *
Pallet Quantity 27,500
Plated N
Plating Type Unplated
Product Description 5/8 IN GRD ROD CLAMP
Product Keywords WEBREADY
Product Name GRC58, Mechanical Ground Rod Clamp, Cable to Rod
Product Type Mechanical
ProductLine BUR
Rod Size 5/8 Inch
Size 0.63 Inch Length x 0.95 Inch Width x 2.19 Inch Height
Special Features Features: High Copper Alloy Ground Connector For Joining A Range Of Cable To Copper Clad, Galvanized Steel, And Stainless Steel Ground Rods, Slips Over End Of Rod, One-Wrench Installation, UL467 Listed For Direct Burial In Earth And Concrete, Ground Rod Size: 5/8 IN, Stud/bolt Size: 3/8 IN, Width: 0.95 IN, Length: 0.63 IN, Height: 2.19 IN
Standard RUS
Standards Industry Standards Met RUS
Standards RoHS Compliance Status CM
Sub Brand MECHANICAL CONNECTOR
Type GRC, High Strength
UL Listed Yes
UNSPSC 39121408
UPC 78181023096
Used On Copper Cable to Copper Rod, Direct Burial
Vendor Name BURNDY PRODUCTS
Vendor Number 781810
Vendor Short Name BUR

Resources

CatalogNumber GRC58
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
