| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | K11A30U |
| Additional Information | RoHS Compliant; Overall Height 2.03 Inch; Temperature Rating 90 Deg C; Installation Torque 275 Inch-Pound; Number of Screw 2 |
| Application | For Aluminum And Copper Conductors |
| Approval | UL 468A/B, CSA |
| Base Price | 0.0000 |
| Brand Name | Burndy |
| Catalog Number | K11A30U |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Aluminum |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | "Aluminum Universal Terminal, 1 Hole, Two: 6 AWG (Str)-300 kcmil, 5/16"" Stud, 2 Screws, Al/Cu Rated, Tin Plated." |
| Description Short | Aluminum Universal Terminal, 1 Hole, 6 Str.- 300 Kcmil |
| Dimension Height Fraction | 2 in |
| Dimension Height Inch | 2.03 in |
| Dimension Hole Size Inch | 0.33 in |
| Dimension Hole Size Mm | 8 mm |
| Dimension L Length Overall Mm | 76 mm |
| Dimension Pad Width Inch | 1.02 in |
| Dimension Screw Size Inch | 11/16 |
| Dimension Stud Size Fraction | 5/16 |
| Dimension Stud Size Inch | 5/16 in |
| Dimension Thread Size | 5/16 in |
| Dimension Width Inch | 1.02 in |
| Dimension Width Mm | 25 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hex Key | 3/4 |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 275 LBS/in |
| InvoiceDescription | TWO:6 STR-300 DUAL RATED;300 ALCU 2H TERM LUG |
| Item Number | 37026 |
| Long Description | UNIVERSAL CONDUCTOR LUG, UNIVERSAL, DUAL RATED TYPE; ELECTRO TIN PLATED HIGH STRENGTH EXTRUDED ALUMINUM ALLOY MATERIAL; 3 INCH OVERALL LENGTH; 6 AWG STRANDED MIN. CONDUCTOR SIZE; 300 KCMIL STRANDED MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL |
| MSDS Form Number | * |
| Material | Aluminum;Electro Tin Plated High Strength Extruded Aluminum Alloy |
| Material Hardware | Aluminum |
| Maximum Conductor Size | 300 KCMIL Stranded |
| Minimum Conductor Size | 6 AWG Stranded |
| Minimum Pack Quantity | 1 |
| Model | K11A-U |
| Noun | * |
| Number Of Conductors | 2 |
| Number Of Conductors Ports Main Primary | 2 |
| Number Of Pad Holes | 1 |
| Overall Length | 3 Inch |
| Pad Size | 0.94 Inch Length x 1 Inch Width x 0.5 Inch Thickness |
| Physical Attribute Screw Type | Allen |
| Plated | Y |
| Plating Type | Tin plated |
| Product Description | TWO:6 STR-300 DUAL RATED |
| Product Keywords | WEBREADY |

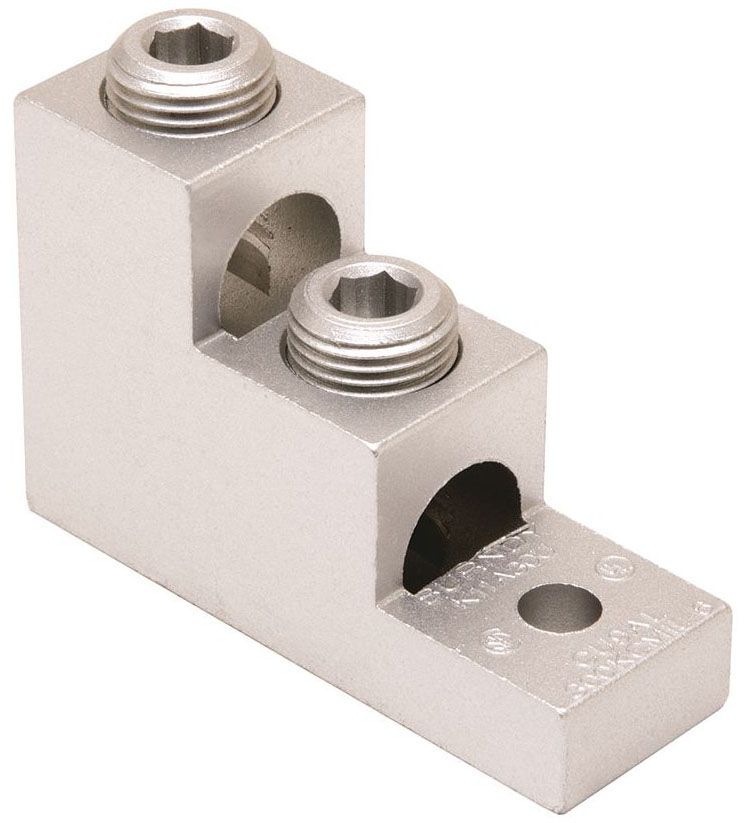

| Product Name | Two Conductor Stacked Aluminum Panel Board Set Screw Connector |
| Product Type | TERMINAL |
| ProductLine | BUR |
| Rating Minimum Voltage | 600 |
| Special Features | Features: Dual-Rated Panelboard Lugs Are Constructed From High Strength Extruded Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Dimension T: 0.31 IN, Dimension N: 0.47 IN, Dimension D: 0.94 IN, Length: 3 IN, Installation Torque: 275 IN-LB, Width: 1 IN, Stud/bolt Hole Size: 5/16 IN, Height: 2 IN |
| Standard | UL 486A-486B |
| Standards Industry Standards Met | UL 486A-486B |
| Standards RoHS Compliance Status | EX | |
| Stud Size | 5/16 Inch |
| Sub Brand | UNIVERSAL TERM |
| Temperature Rating | 194 |
| Type | Bolted Lugs & Terminals;Universal, Dual Rated |
| UNSPSC | 39121408 |
| UPC | 78181037026 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
