BUR K2A26U

TWO:14 STR-2/0 STR DUAL

Page Loading...
BURNDY (FCI BURNDY)
TWO:14 STR-2/0 STR DUAL

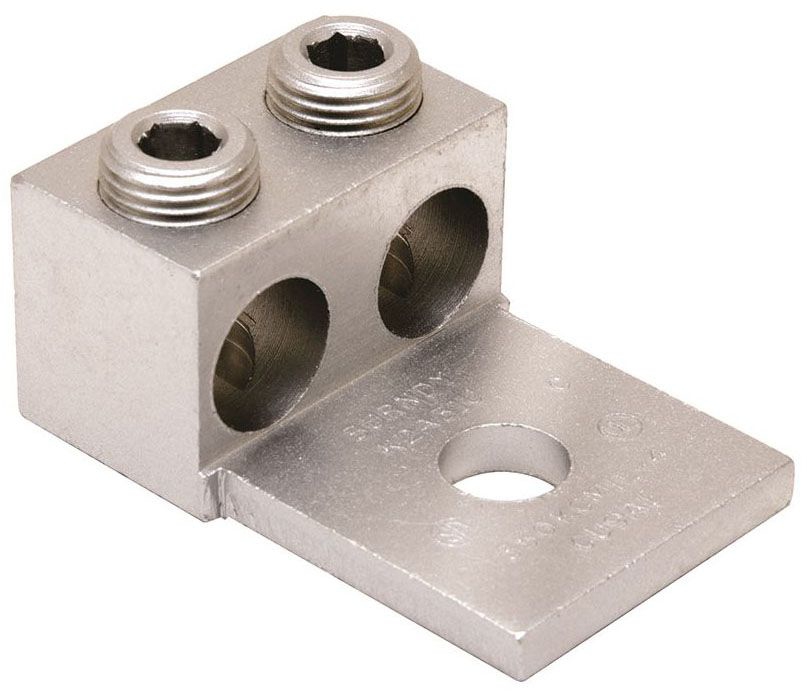

Mouse over image to zoom, click to enlarge

Description:
TWO:14 STR-2/0 STR DUAL

UPC:  78181060005

Part Number: K2A26U

UNSPSC: 39121408

Status:  UNKNOWN

Retail Price:  $9.83 / EA
Your Price:  $3.48 / EA


Quantity  EA

Specifications

Manufacturer Name BURNDY (FCI BURNDY)
MfgPartNo K2A26U
Additional Information RoHS Compliant; Overall Height 0.8 Inch; Temperature Rating 90 Deg C; Installation Torque 120 Inch-Pound; Number of Screw 2
Application For Aluminum And Copper Conductors
Approval UL 468A/B, CSA
Base Price 0.0000
Brand Name Burndy
Catalog Number K2A26U
Commerce Sector Construction Materials
Commodity Code 64120
Commodity Description Large Terminals & Connectors
Conductor Material Copper/Aluminum
CountryOfOrigin MX
DDCATEGORY 597
Description Long "Aluminum Universal Terminal, 2 Conductor, 1 Hole, 14-2/0 AWG (Str), 1/4"" Stud, 2 Screws, Al/Cu Rated, Tin Plated."
Description Short Aluminum Universal Terminal, 2 Conductor, 1 Hole, 14-2/0 AWG
Description Slang 2 Cables to Flat
Dimension Bolt Hole Size Inch 0.25 in |
Dimension Height Fraction 4/5 in
Dimension Height Inch 0.80 in
Dimension Hole Size Inch 0.27 in
Dimension Hole Size Mm 7 mm
Dimension L Length Overall Mm 37 mm
Dimension Pad Width Inch 1.27 in
Dimension Screw Size Inch 3/8
Dimension Stud Size Inch 1/4 in
Dimension Width Fraction 1-1/4 in
Dimension Width Inch 1.27 in
Dimension Width Mm 32 mm
Directory CIS
EU RoHS Indicator No
Families 597
Family Description Large Terminals & Connectors
Image Location * Image
Industry ELX
Installation Torque Recommended In Lb 120 LBS/in
InvoiceDescription TWO:14 STR-2/0 STR DUAL;2/0 ALCU 2H TERM LUG
Item Number 60005
Long Description UNIVERSAL CONDUCTOR LUG, UNIVERSAL, DUAL RATED TYPE; ELECTRO TIN PLATED HIGH STRENGTH ALUMINUM ALLOY MATERIAL; 1.47 INCH OVERALL LENGTH; 14 AWG STRANDED MIN. CONDUCTOR SIZE; 2/0 AWG STRANDED MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL
MSDS Form Number *
Material Aluminum;Electro Tin Plated High Strength Aluminum Alloy
Material Hardware Aluminum
Maximum Conductor Size 2/0 AWG Stranded
Minimum Conductor Size 14 AWG Stranded
Minimum Pack Quantity 1
Model K2A-U
Noun *
Number Of Conductors 2
Number Of Conductors Ports Main Primary 2
Number Of Pad Holes 1
Overall Length 1.47 Inch
Pad Size 0.81 Inch Length x 1.25 Inch Width x 0.19 Inch Thickness
Physical Attribute Screw Type Slot
Plated N
Plating Type Tin plated
Product Description TWO:14 STR-2/0 STR DUAL
Product Keywords WEBREADY
Product Name Two Conductor Aluminum Set Screw Connector
Product Type TERMINAL
ProductLine BUR
Rating Minimum Voltage 600
Special Features Features: These Dual-Rated Two-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Dimension T: 0.19 IN, Dimension D: 0.81 IN, Stud/bolt Hole Size: 1/4 IN, Dimension N: 0.44 IN, Number Of Screws: 1, Set Screw Type: Slot, Installation Torque: 50 IN-LB, Width: 1-1/4 IN, Length: 1.47 IN, Height: 0.79 IN
Standard UL 486A-486B
Standards Industry Standards Met UL 486A-486B
Standards RoHS Compliance Status EX
Stud Size 1/4 Inch
Sub Brand UNIVERSAL TERM
Temperature Rating 194
Type Bolted Lugs & Terminals;Universal, Dual Rated
UNSPSC 39121408
UPC 78181060005
Vendor Name BURNDY PRODUCTS
Vendor Number 781810
Vendor Short Name BUR

Resources

CatalogNumber K2A26U
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
