| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | K2A29U |
| Additional Information | RoHS Compliant; Overall Height 1.2 Inch; Temperature Rating 90 Deg C; Installation Torque 275 Inch-Pound; Number of Screw 2 |
| Application | For Aluminum And Copper Conductors |
| Approval | UL 468A/B, CSA |
| Base Price | 0.0000 |
| Catalog Number | K2A29U |
| Certification CSA Approved | Yes |
| Certification UL Listed Direct Burial | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Aluminum |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

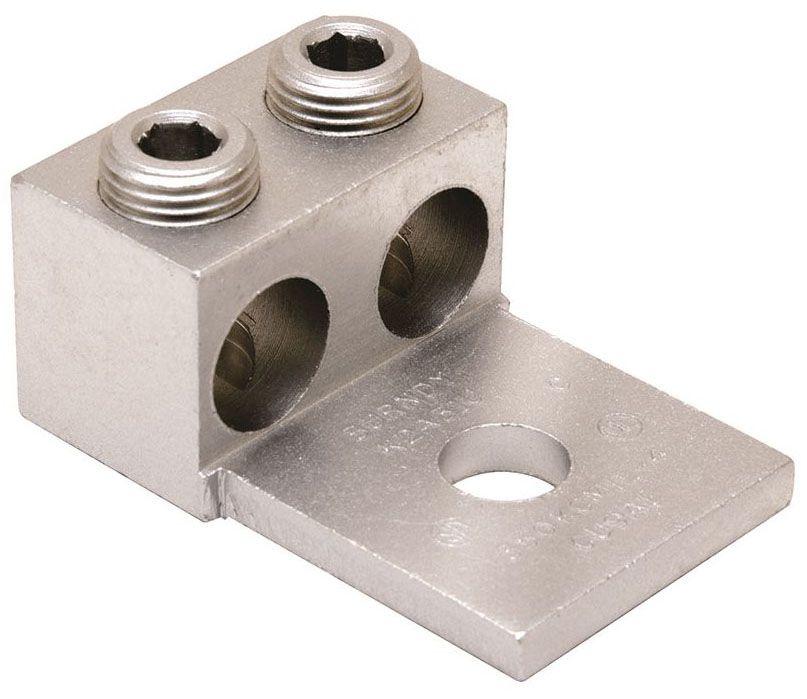

| Description Long | "Aluminum Universal Terminal, 2 Conductor, 1 Hole, 6 AWG (Str)-250 kcmil, 3/8"" Stud, 2 Screws, Al/Cu Rated, Tin Plated." |
| Description Short | Aluminum Universal Terminal, 2 Conductor, 1 Hole, 6 AWG (Str)-250 kcmil |
| Description Slang | 2 Cables to Flat |
| Dimension Bolt Hole Size Inch | 0.38 in |
| Dimension Bolt Size Fraction | 3/8 |
| Dimension D Inch | 1.50 in |
| Dimension Height Fraction | 1.2 in |
| Dimension Height Inch | 1.20 in |
| Dimension Hole Size Inch | 0.40 in |
| Dimension Hole Size Mm | 10 mm |
| Dimension L Length Overall Mm | 65 mm |
| Dimension Length Overall Inch | 2.56 in |
| Dimension N Inch | 0.5 in |
| Dimension Pad Width Inch | 1.66 in |
| Dimension Screw Size Inch | 3/8 |
| Dimension Stud Size Inch | 3/8 in |
| Dimension Width Fraction | 1-33/50 in |
| Dimension Width Inch | 1.66 in |
| Dimension Width Mm | 42 mm |
| Directory | CIS |
| EU RoHS Indicator | No |
| FEATURES Bullets | Constructed from high strength, extruded aluminum alloy;Dual rated panelboard lugs;Electro tin-plated to provide low contact resistance |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Product Family | MECHANICAL |
| FV Standards Industry Standards Met | UL 486A-486B |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hardware Type | 3/8 UNC Slotted Set Screw | |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | TWO:6STR-250 DUAL RATED;250 ALCU 2H TERM LUG |
| Item Number | 60010 |
| Long Description | UNIVERSAL CONDUCTOR LUG, UNIVERSAL, DUAL RATED TYPE; ELECTRO TIN PLATED HIGH STRENGTH ALUMINUM ALLOY MATERIAL; 2.56 INCH OVERALL LENGTH; 6 AWG STRANDED MIN. CONDUCTOR SIZE; 250 KCMIL STRANDED MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL |
| MSDS Form Number | * |
| Material | Aluminum;Electro Tin Plated High Strength Aluminum Alloy |
| Maximum Conductor Size | 250 KCMIL Stranded |
| Minimum Conductor Size | 6 AWG Stranded |
| Model | K2A-U |
| Noun | * |
| Number Of Conductors | 2 |
| Number Of Conductors Ports Main Primary | 2 |
| Number Of Pad Holes | 1 |
| Overall Length | 2.56 Inch |
| Pad Size | 1.5 Inch Length x 1.66 Inch Width x 0.25 Inch Thickness |
| Product Description | TWO:6STR-250 DUAL RATED |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | BUR |
| Special Features | Features: These Dual-Rated Two-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Number Of Screws: 1, Dimension T: 0.25 IN, Stud/bolt Hole Size: 3/8 IN, Dimension D: 1.5 IN, Dimension N: 0.5 IN, Set Screw Type: Allen Key, Installation Torque: 275 IN-LB, Width: 1.66 IN, Length: 2.56 IN, Height: 1.2 IN |
| Standard | UL 486A-486B |
| Stud Size | 3/8 Inch |
| Temperature Rating | 194 |
| Type | Bolted Lugs & Terminals;Universal, Dual Rated |
| UNSPSC | 39121408 |
| UPC | 78181060010 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
