| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | K2A36U |
| Additional Information | RoHS Compliant; Overall Height 1.58 Inch; Temperature Rating 90 Deg C; Installation Torque 375 Inch-Pound; Number of Screw 2 |
| Application | For Aluminum And Copper Conductors |
| Approval | UL 468A/B, CSA |
| Base Price | 0.0000 |
| Catalog Number | K2A36U |
| Certification CSA Approved | Yes |
| Certification UL Listed Direct Burial | No |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Aluminum |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

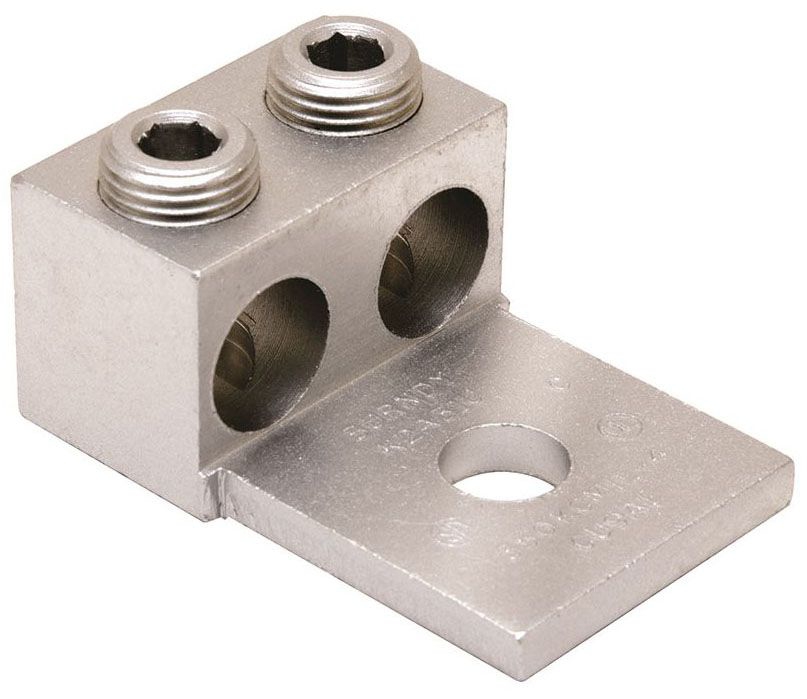

| Description Long | "Aluminum Universal Terminal, 2 Conductor, 1 Hole, 2 AWG (Str)-600 kcmil, 1/2"" Stud, 2 Screws, Al/Cu Rated, Tin Plated." |
| Description Short | Aluminum Universal Terminal, 2 Conductor, 2 Hole, 2 AWG (Str)-600 kcmil |
| Description Slang | 2 Cables to Flat |
| Dimension Bolt Hole Size Inch | 0.50 in |
| Dimension Bolt Size Fraction | 1/2 |
| Dimension D Inch | 1.75 in |
| Dimension Height Fraction | 1.5714285714285714 in |
| Dimension Height Inch | 1.58 in |
| Dimension Hole Size Inch | 0.53 in |
| Dimension Hole Size Mm | 13 mm |
| Dimension L Length Overall Mm | 81 mm |
| Dimension Length Overall Inch | 3.20 in |
| Dimension N Inch | 0.63 in |
| Dimension Pad Width Inch | 2.42 in |
| Dimension Screw Size Inch | 3/8 |
| Dimension Stud Size Inch | 1/2 in |
| Dimension Width Fraction | 2-41/100 in |
| Dimension Width Inch | 2.42 in |
| Dimension Width Mm | 61 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Constructed from high strength, extruded aluminum alloy;Dual rated panelboard lugs;Electro tin-plated to provide low contact resistance |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Product Family | MECHANICAL |
| FV Standards Industry Standards Met | UL 486A-486B | |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | TWO:2 STR-600 DUAL RTD,1/2 IN Bolt Hole;600 ALCU 2H TERM LUG |
| Item Number | 60020 |
| Long Description | UNIVERSAL CONDUCTOR LUG, UNIVERSAL, DUAL RATED TYPE; ELECTRO TIN PLATED HIGH STRENGTH ALUMINUM ALLOY MATERIAL; 3.2 INCH OVERALL LENGTH; 2 AWG STRANDED MIN. CONDUCTOR SIZE; 600 KCMIL STRANDED MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL |
| MSDS Form Number | * |
| Material | Aluminum;Electro Tin Plated High Strength Aluminum Alloy |
| Maximum Conductor Size | 600 KCMIL Stranded |
| Minimum Conductor Size | 2 AWG Stranded |
| Model | K2A-U |
| Noun | * |
| Number Of Conductors | 2 |
| Number Of Conductors Ports Main Primary | 2 |
| Number Of Pad Holes | 1 |
| Overall Length | 3.2 Inch |
| Pad Size | 1.75 Inch Length x 2.41 Inch Width x 0.44 Inch Thickness |
| Product Description | TWO:2 STR-600 DUAL RTD,1/2 IN Bolt Hole |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | BUR |
| Special Features | Features: These Dual-Rated Two-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Dimension N: 0.63 IN, Dimension D: 1.75 IN, Number Of Screws: 1, Dimension T: 0.44 IN, Stud/bolt Hole Size: 1/2 IN, Set Screw Type: Allen Key, Installation Torque: 275 IN-LB, Length: 3.2 IN, Width: 2.41 IN, Height: 1.58 IN |
| Standard | UL 486A-486B |
| Stud Size | 1/2 Inch |
| Temperature Rating | 194 |
| Type | Bolted Lugs & Terminals;Universal, Dual Rated |
| UNSPSC | 39121408 |
| UPC | 78181060020 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 35000 V |
