| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | K2C20B1 |
| Additional Information | RoHS Compatible; Height 7/8 Inch |
| Application | For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Body Hex Size | 1/2 Inch |
| Brand Name | SERVIT POST[TM] |
| Catalog Number | K2C20B1 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Size | 10 to 4 AWG Solid, 10 to 5 AWG Stranded (Copper) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | "Mechanical Grounding Connector, 2 Cables to Flat, 10 - 5 AWG (Str) / 10 - 4 AWG (Sol), 5/16"" Stud." |

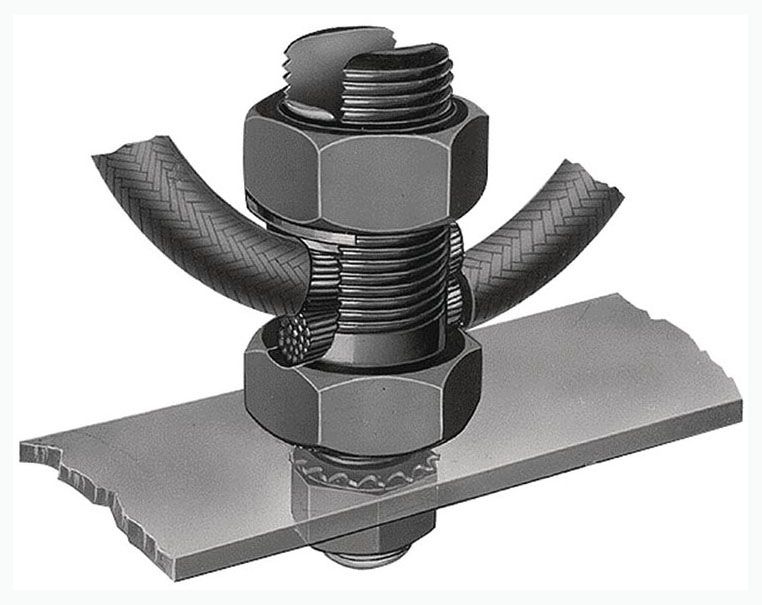

| Description Short | SERVIT POST Mechanical Connector, 2 Cables to Flat |
| Dimension B Length Fraction | 27/32 in |
| Dimension B Length Inch | 0.85 in |
| Dimension Body Width Inch | 0.50 in |
| Dimension Bolt Size Fraction | 5/16 |
| Dimension D Inch | 1.00 in |
| Dimension Height Fraction | 7/8 |
| Dimension Height Inch | 0.86 in |
| Dimension L Length Overall Mm | 48.8 mm |
| Dimension Length Overall Inch | 1.92 in |
| Dimension Nut Width Inch | 0.69 in |
| Dimension P Inch | 0.22 in |
| Dimension Threads Per Inch | 18 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | 1-Wrench installation;Also used to tap 1 or 2 cables from bus bar;SERVIT POST mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Product Family | Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Bar/Flat |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 10-5 STR 27/32 POST 2 CO;5STR SPLIT BOLT CONN |
| Item Number | 25705 |
| Long Description | MECHANICAL GROUNDING CONNECTOR, LEADED BRONZE ALLOY MATERIAL; CABLE TO FLAT SURFACE/STEEL STRUCTURE/FENCE POST/TRANSFORMER USED ON; 27/32 INCH STUD LENGTH; UL, CSA APPROVAL; 2 CONDUCTOR(S); 10 TO 4 AWG SOLID, 10 TO 5 AWG STRANDED (COPPER) CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Bronze Alloy, Leaded;Leaded Bronze Alloy |
| Minimum Pack Quantity | 1 |
| Model | K2C |
| Noun | * |
| Number Of Conductors | 2 |
| Nut Hex Size | 11/16 Inch |
| Pallet Quantity | 19800 |
| Physical Attribute Number Of Conductors Accommodated Total | 2 |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 10-5 STR 27/32 POST 2 CO |
| Product Keywords | WEBREADY |
| Product Name | K2C20B1, SERVIT POST Mechanical Connector, 2 Cables to Flat |
| Product Type | Mechanical |
| ProductLine | BUR |
| Special Features | Features: SERVIT POST Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar, One-Wrench Installation, Conductor Type: Run: Commercial Stranded Copper, Commercial Solid Copper, Cross Flats: 11/16, 1/2 IN, Height: 2-1/8 IN, Stud Size: 5/16-18, Dimension B: 27/32 IN |
| Standard | UL467 |
| Standards Industry Standards Met | UL467 |
| Standards RoHS Compliance Status | EX | |
| Stud Diameter | 5/16 Inch-18 TPI |
| Stud Length | 27/32 Inch |
| Type | KC and K2C Series |
| UNSPSC | 39121408 |
| UPC | 78181025705 |
| Used On | Cable to Flat Surface/Steel Structure/Fence Post/Transformer |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
