| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | K2C22B1 |
| Additional Information | RoHS Compatible; Height 1 Inch |
| Application | For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Body Hex Size | 5/8 Inch |
| Brand Name | Burndy;SERVIT POST[TM] |
| Catalog Number | K2C22B1 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Size | 10 to 2 AWG Solid, 10 to 3 AWG Stranded (Copper) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

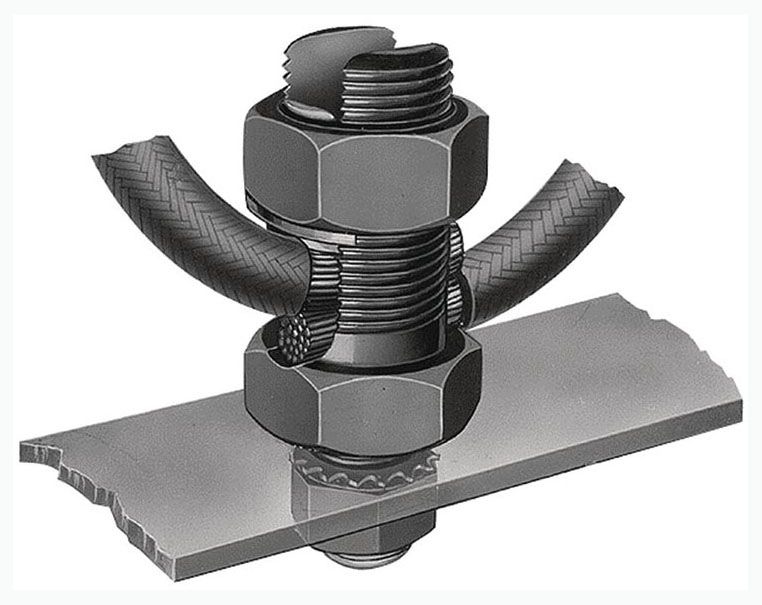

| Description Long | Mechanical Grounding Connector, 2 Cables to Flat, 10 - 3 AWG (Str) / 10 - 2 AWG (Sol). |
| Description Short | SERVIT POST Mechanical Connector, 2 Cables to Flat |
| Dimension B Length Fraction | 31/32 in |
| Dimension B Length Inch | 0.96 in |
| Dimension Body Width Inch | 0.62 in |
| Dimension Bolt Size Fraction | 3/8 |
| Dimension D Inch | 1.12 in | |
| Dimension Height Fraction | 1 |
| Dimension Height Inch | 1.00 in |
| Dimension L Length Overall Mm | 53.8 mm |
| Dimension Length Overall Inch | 2.12 in |
| Dimension Nut Width Inch | 0.75 in |
| Dimension P Inch | 0.26 in |
| Dimension Threads Per Inch | 16 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 10-3 STR 31/32 POST 2 CO;3STR SPLIT BOLT CONN |
| Item Number | 25715 |
| Long Description | MECHANICAL GROUNDING CONNECTOR, LEADED BRONZE ALLOY MATERIAL; CABLE TO FLAT SURFACE/STEEL STRUCTURE/FENCE POST/TRANSFORMER USED ON; 31/32 INCH STUD LENGTH; UL, CSA APPROVAL; 2 CONDUCTOR(S); 10 TO 2 AWG SOLID, 10 TO 3 AWG STRANDED (COPPER) CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Bronze Alloy, Leaded;Leaded Bronze Alloy |
| Minimum Pack Quantity | 1 |
| Model | K2C |
| Noun | * |
| Number Of Conductors | 2 |
| Nut Hex Size | 3/4 Inch |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 10-3 STR 31/32 POST 2 CO |
| Product Keywords | WEBREADY |
| Product Name | K2C22B1, SERVIT POST Mechanical Connector, 2 Cables to Flat |
| Product Type | Mechanical |
| ProductLine | BUR |
| Special Features | Features: SERVIT POST Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar, One-Wrench Installation, Conductor Type: Run: Commercial Stranded Copper, Commercial Solid Copper, Cross Flats: 3/4, 5/8 IN, Height: 2-3/8 IN, Dimension B: 31/32 IN, Stud Size: 3/8-16 |
| Standard | UL467 |
| Standards Industry Standards Met | UL467 |
| Standards RoHS Compliance Status | EX |
| Stud Diameter | 3/8 Inch-16 TPI |
| Stud Installation Torque Inch Pounds | 280 LBS/in |
| Stud Length | 31/32 Inch |
| Sub Brand | SERVIT POST |
| Trade Name | SERVIT POST |
| Type | KC and K2C Series |
| UL Listed | Yes |
| UNSPSC | 39121408 |
| UPC | 78181025715 |
| Used On | Cable to Flat Surface/Steel Structure/Fence Post/Transformer |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
