| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | K2C23 |
| Additional Information | Overall Dimension 1.97 Inch Length x 1.05 Inch Height |
| Application | For Direct Burial Applications And Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Body Hex Size | 5/8 Inch |
| Brand Name | SERVIT POST[TM] |
| Catalog Number | K2C23 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Size | 10 to 1 AWG Solid, 8 to 2 AWG Stranded |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | "Mechanical Grounding Connector, Cable to Flat, 8-2 AWG (Str) / 10-1 AWG (Sol), 3/8"" Stud,cross base flat :.62." |
| Description Short | SERVIT POST Mechanical Connector, 2 Cables to Flat |
| Dimension B Length Fraction | 15/32 in |
| Dimension B Length Inch | 0.46 in |
| Dimension Body Width Inch | 0.62 in |
| Dimension Bolt Size Fraction | 3/8 |
| Dimension D Inch | 0.62 in |
| Dimension Height Fraction | 1 |
| Dimension Height Inch | 1.34 in |
| Dimension L Length Overall Mm | 56 mm |
| Dimension Length Overall Inch | 2.19 in |
| Dimension Nut Width Inch | 0.81 in |
| Dimension P Inch | 0.32 in |
| Dimension Threads Per Inch | 16 |
| Dimension Width Inch | 34 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | 1-Wrench installation;Also used to tap 1 or 2 cables from bus bar;SERVIT POST mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Product Family | Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Bar/Flat |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 8-2 STR 15/32 POST 2 CON;2STR SPLIT BOLT CONN |
| Item Number | 25720 |
| Long Description | MECHANICAL GROUNDING CONNECTOR, LEADED BRONZE ALLOY MATERIAL; CABLE TO FLAT/STEEL STRUCTURE/FENCE POST/TRANSFORMER USED ON; 15/32 INCH STUD LENGTH; UL, CSA APPROVAL; 2 CONDUCTOR(S); 10 TO 1 AWG SOLID, 8 TO 2 AWG STRANDED CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Bronze Alloy, Leaded;Leaded Bronze Alloy |
| Minimum Pack Quantity | 1 |
| Model | K2C |
| Noun | * |
| Number Of Conductors | 2 |
| Nut Hex Size | 13/16 Inch |
| Pallet Quantity | 14850 |
| Physical Attribute Number Of Conductors Accommodated Total | 2 |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 8-2 STR 15/32 POST 2 CON |
| Product Keywords | WEBREADY |

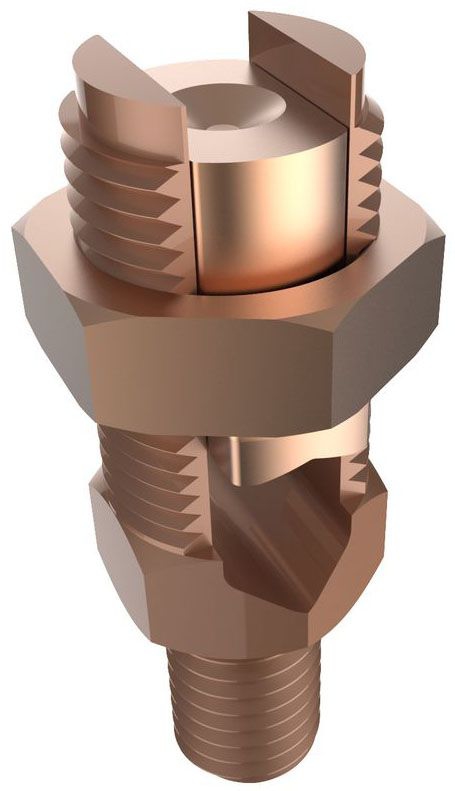

| Product Name | K2C23, SERVIT POST Mechanical Connector, 2 Cables to Flat |
| Product Type | Mechanical |
| ProductLine | BUR |
| Special Features | Features: SERVIT POST Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar, One-Wrench Installation, For 1 Or 2 Conductors, Conductor Type: Run: Commercial Stranded Copper, Commercial Solid Copper, Stud/bolt Size: 3/8-16 Diameter, 15/32 IN Length, Height: 2 IN, Cross Flats: 13/16, 5/8 IN |
| Standard | UL467 |
| Standards Industry Standards Met | UL467 | |
| Stud Diameter | 3/8 Inch-16 TPI |
| Stud Length | 15/32 Inch |
| Type | KC and K2C Series |
| UNSPSC | 39121408 |
| UPC | 78181025720 |
| Used On | Cable to Flat/Steel Structure/Fence Post/Transformer |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
