| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | K3A25U2 |
| Additional Information | RoHS Compliant; Overall Height 0.88 Inch; Stud Hole Spacing Size 1 Inch; Temperature Rating 90 Deg C; Installation Torque 50 Inch-Pound; Number of Screw 3 |
| Application | For Aluminum and Copper Conductors |
| Approval | UL 468A/B, CSA |
| Base Price | 0.0000 |
| Catalog Number | K3A25U2 |
| Certification CSA Approved | Yes |
| Certification UL Listed Direct Burial | No |
| Certified Listed | BABA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Aluminum |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

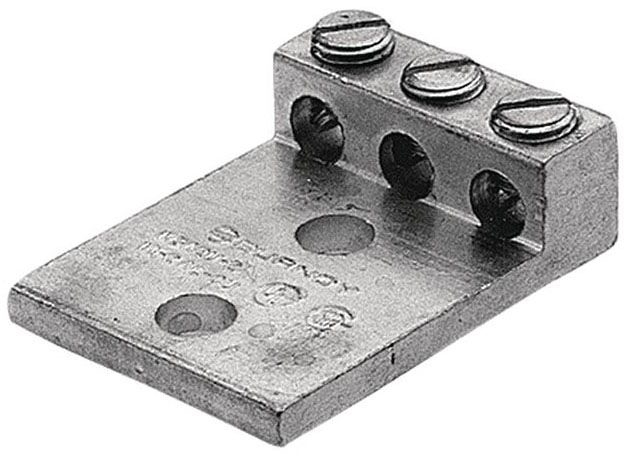

| Description Long | "Aluminum Universal Terminal, 3 Conductor, 2 Hole, 14-1/0 AWG (Str), 3/8"" Stud, 1"" Stud Hole Spacing, 3 Screws, Al/Cu Rated, Tin Plated." |
| Description Short | Aluminum Universal Terminal, 3 Conductor, 14-1/0 AWG (Str) |
| Description Slang | 3 Cables to Flat |
| Dimension Bolt Hole Size Inch | 0.44 in |
| Dimension Bolt Size Fraction | 3/8 |
| Dimension D Inch | 2.09 in |
| Dimension Height Fraction | 7/8 in |
| Dimension Height Inch | 0.88 in |
| Dimension Hole Size Fraction | 7/16 |
| Dimension Hole Size Inch | 0.45 in |
| Dimension Hole Size Mm | 11 mm |
| Dimension L Length Overall Mm | 56 mm |
| Dimension Length Overall Inch | 2.19 in |
| Dimension N Inch | 0.34 in |
| Dimension Pad Width Inch | 2.02 in |
| Dimension Stud Size Inch | 3/8 in |
| Dimension Width Fraction | 1-47/50 in |
| Dimension Width Inch | 1.64 in |
| Dimension Width Mm | 49 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Constructed from high strength aluminum alloy;Dual rated lugs;Electro tin plating proving low contact resistance |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | BABA Compliant (All status valid till December 2024) |
| FV Product Family | MECHANICAL |
| FV Standards Industry Standards Met | UL 486A-486B | |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | THREE:14STR-1/0STR DUAL;1/0 ALCU 2H TERM LUG |
| Item Number | 37053 |
| Long Description | UNIVERSAL CONDUCTOR LUG, UNIVERSAL, DUAL RATED TYPE; ELECTRO TIN PLATED HIGH STRENGTH ALUMINUM ALLOY MATERIAL; 2.91 INCH OVERALL LENGTH; 14 AWG STRANDED MIN. CONDUCTOR SIZE; 1/0 AWG STRANDED MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL |
| MSDS Form Number | * |
| Material | Aluminum;Electro Tin Plated High Strength Aluminum Alloy |
| Maximum Conductor Size | 1/0 AWG Stranded |
| Minimum Conductor Size | 14 AWG Stranded |
| Model | K3A-U |
| Noun | * |
| Number Of Conductors | 3 |
| Number Of Conductors Ports Main Primary | 3 |
| Number Of Pad Holes | 2 |
| Number Of Ports | 3 |
| Overall Length | 2.91 Inch |
| Pad Size | 2.09 Inch Length x 1.94 Inch Width x 0.25 Inch Thickness |
| Product Description | THREE:14STR-1/0STR DUAL |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | BUR |
| Screw Type | Slotted Head |
| Special Features | Universal terminal, Dual-rated three conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance |
| Standard | UL 486A-486B |
| Stud Size | 3/8 Inch |
| Temperature Rating | 194 |
| Type | Bolted Lugs & Terminals;Universal, Dual Rated |
| UNSPSC | 39121408 |
| UPC | 78181037053 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
