| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | K3A36U4N |
| Additional Information | RoHS Compliant; Installation Torque 375 Lb-Inch; Stud Hole Spacing Size 1.75 Inch |
| Application | For Aluminum and Copper Conductors |
| Approval | UL 468A/486B, CSA |
| Base Price | 0.0000 |
| Catalog Number | K3A36U4N |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | No |
| Certification UL Recognized | No |
| Certified Listed | BABA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Aluminum/Copper |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

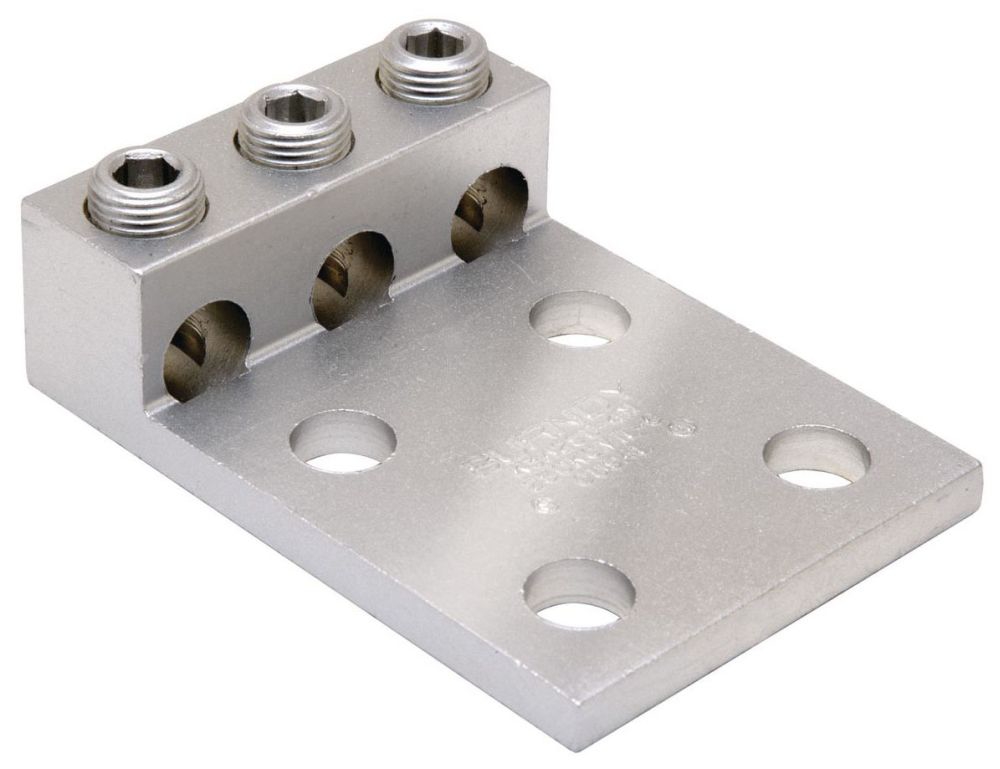

| Description Long | "Aluminum Universal Terminal, 3 Conductor, 4 Hole, 2 AWG (Str)-600 kcmil, 1/2"" Stud, 1.75"" Stud Hole Spacing, 3 Screws, Al/Cu Rated, Tin Plated." |
| Description Short | Aluminum Universal Terminal, 3 Conductor, 2 AWG (Str)-600 kcmil |
| Description Slang | 3 Cables to Flat |
| Dimension Bolt Hole Size Inch | 0.57 in |
| Dimension Bolt Size Fraction | 1/2 |
| Dimension D Inch | 3.22 in |
| Dimension F Width Center To Center Inch | 1.75 in |
| Dimension Height Fraction | 1.5555555555555556 in |
| Dimension Height Inch | 1.56 in |
| Dimension Hole Size Fraction | 9/16 |
| Dimension Hole Size Inch | 0.56 in |
| Dimension Hole Size Mm | 14 mm |
| Dimension L Length Overall Mm | 119.12 mm |
| Dimension Length Overall Inch | 4.69 in |
| Dimension N Inch | 0.63 in |
| Dimension Pad Width Inch | 3.64 in |
| Dimension Stud Size Inch | 1/2 in |
| Dimension Width Fraction | 3-63/100 in |
| Dimension Width Inch | 3.64 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Constructed from high strength aluminum alloy;Dual rated lugs;Electro tin plating proving low contact resistance |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | BABA Compliant (All status valid till December 2024) | |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | THREE:2STR-600 NEMA,9/16 IN Bolt Hole;600 ALCU 4H TERM |
| Item Number | 60122 |
| Long Description | UNIVERSAL CONDUCTOR LUG, ELECTRO TIN PLATED ALUMINUM ALLOY MATERIAL; 4.69 INCH OVERALL LENGTH; 2 AWG STRANDED ALUMINUM/COPPER MIN. CONDUCTOR SIZE; 600 KCMIL ALUMINUM, 600 KCMIL STRANDED COPPER MAX. CONDUCTOR SIZE; ALUMINUM/COPPER CONDUCTOR MATERIAL |
| MSDS Form Number | * |
| Material | Aluminum;Electro Tin Plated Aluminum Alloy |
| Maximum Conductor Size | 600 KCMIL Aluminum, 600 KCMIL Stranded Copper |
| Minimum Conductor Size | 2 AWG Stranded Aluminum/Copper |
| Model | Type K3A-U |
| Noun | * |
| Number Of Conductors | 3 |
| Number Of Conductors Ports Main Primary | 3 |
| Number Of Pad Holes | 4 NEMA |
| Overall Length | 4.69 Inch |
| Pad Size | 3.22 Inch L x 3.64 Inch W x 0.44 Inch Thk |
| Product Description | THREE:2STR-600 NEMA,9/16 IN Bolt Hole |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | BUR |
| Special Features | Universal terminal, These dual-rated three conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance |
| Standard | UL 486A-486B |
| Stud Size | 1/2 Inch |
| Temperature Rating | 194 |
| Type | Bolted Lugs & Terminals |
| UNSPSC | 39121408 |
| UPC | 78181060122 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
