| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | K4A29U4N |
| Additional Information | RoHS Compliant; Overall Height 1.19 Inch; Stud Hole Spacing Size 1.75 Inch; Temperature Rating 90 Deg C; Installation Torque 275 Inch-Pound; Number of Screw 4 |
| Application | For Aluminum and Copper Conductors |
| Approval | UL 467, CSA |
| Base Price | 0.0000 |
| Catalog Number | K4A29U4N |
| Certification CSA Approved | Yes |
| Certification UL Listed Direct Burial | No |
| Certified Listed | BABA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Aluminum |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

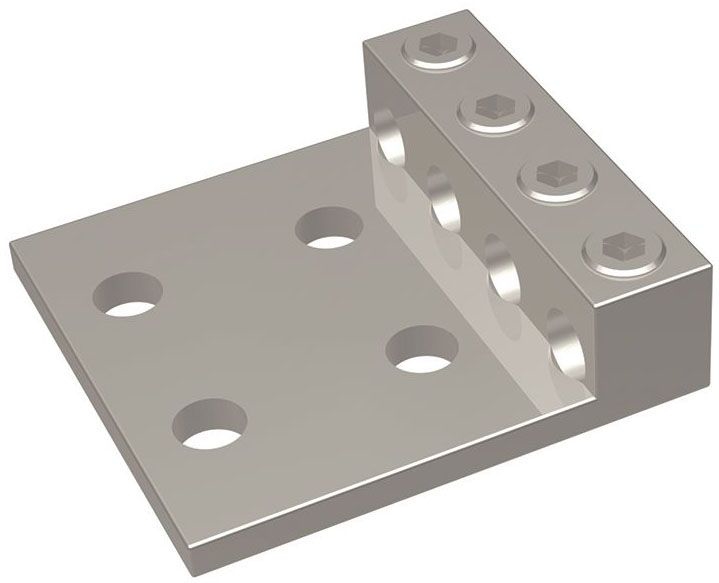

| Description Long | "Aluminum Universal Terminal, 4 Conductor, 4 Hole, 6 AWG (Str)-250 kcmil, 1/2"" Stud, 1.75"" Stud Hole Spacing, 4 Screws, Al/Cu Rated, Tin Plated." |
| Description Short | Aluminum Universal Terminal, 4 Conductor, 4 Hole, 6 AWG (Str)-250 kcmil |
| Description Slang | 4 Cables to Flat |
| Dimension Bolt Hole Size Inch | 0.56 in |
| Dimension Bolt Size Fraction | 1/2 |
| Dimension D Inch | 3.16 in |
| Dimension F Width Center To Center Inch | 1.75 in |
| Dimension Height Fraction | 1.19 in |
| Dimension Height Inch | 1.19 in |
| Dimension Hole Size Inch | 0.56 in |
| Dimension Hole Size Mm | 14 mm |
| Dimension L Length Overall Mm | 108 mm |
| Dimension Length Overall Inch | 4.25 in |
| Dimension N Inch | 0.63 in |
| Dimension Pad Width Inch | 4.00 in |
| Dimension Stud Size Inch | 1/2 in |
| Dimension Width Fraction | 3-69/100 in |
| Dimension Width Inch | 3.69 in |
| Dimension Width Mm | 94 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Constructed from high strength aluminum alloy;Dual rated lugs;Electro tin plating proving low contact resistance |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | BABA Compliant (All status valid till December 2024) |
| FV Product Family | MECHANICAL |
| FV Standards Industry Standards Met | UL467 |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 275 LBS/in | |
| InvoiceDescription | FOUR:6STR-250 DUAL RATED;250 ALCU 4H TERM |
| Item Number | 60106 |
| Long Description | UNIVERSAL CONDUCTOR LUG, UNIVERSAL, DUAL RATED TYPE; ELECTRO TIN PLATED HIGH STRENGTH ALUMINUM ALLOY MATERIAL; 4.25 INCH OVERALL LENGTH; 6 AWG STRANDED MIN. CONDUCTOR SIZE; 250 KCMIL STRANDED MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL |
| MSDS Form Number | * |
| Material | Aluminum;Electro Tin Plated High Strength Aluminum Alloy |
| Maximum Conductor Size | 250 KCMIL Stranded |
| Minimum Conductor Size | 6 AWG Stranded |
| Model | K4A-U |
| Noun | * |
| Number Of Conductors | 4 |
| Number Of Conductors Ports Main Primary | 4 |
| Number Of Pad Holes | 4 NEMA |
| Overall Length | 4.25 Inch |
| Pad Size | 3.16 Inch Length x 3.69 Inch Width x 0.31 Inch Thickness |
| Product Description | FOUR:6STR-250 DUAL RATED |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | BUR |
| Special Features | Universal terminal, These dual-rated four conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance |
| Standard | UL467 |
| Stud Size | 1/2 Inch |
| Temperature Rating | 194 |
| Type | Bolted Lugs & Terminals;Universal, Dual Rated |
| UNSPSC | 39121408 |
| UPC | 78181060106 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
