| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KA34 |
| Additional Information | RoHS Compliant; Overall Height 2-3/32 Inch; Installation Torque 375 Inch-Pound; Number of Screw 1 |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks |
| Approval | UL 468A/B |
| Base Price | 0.0000 |
| Brand Name | KA-LUG |
| Catalog Number | KA34 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| CountryOfOrigin | MX |
| DDCATEGORY | 597 |

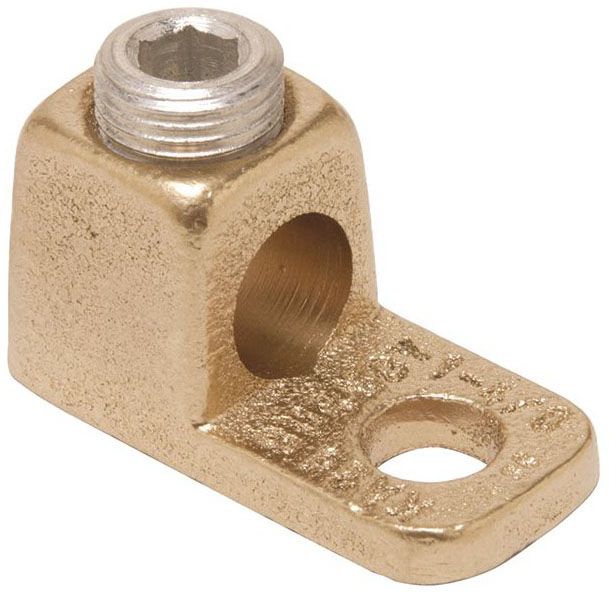

| Description Long | "Copper Terminal, 1 Hole, 4/0 AWG (Str)-500 kcmil, 1/2"" Stud, 1 Screw." |
| Description Short | "Copper Terminal, 1 Hole, 4/0 AWG (Str)-500 kcmil, 1/2"" Stud, 1 Screw" |
| Description Slang | Mechanical terminal for copper |
| Dimension B Length Fraction | 1-3/25 in |
| Dimension B Length Inch | 1.12 in |
| Dimension Bolt Size Fraction | 1/2 |
| Dimension Height Fraction | 2-3/32 |
| Dimension Height Inch | 2.09 in |
| Dimension Hole Size Fraction | 9/16 |
| Dimension Hole Size Inch | 0.56 in |
| Dimension Hole Size Mm | 14 mm |
| Dimension L Length Overall Mm | 65 mm |
| Dimension Length Overall Inch | 2.55 in |
| Dimension Mounting Hardware Bolt Size Inch | 13/16 in |
| Dimension N Inch | 0.56 in |
| Dimension Pad Width Inch | 1.38 in |
| Dimension Stud Size Inch | 1/2 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Compact, high copper alloy terminal for joining cable to equipment pads or terminal blocks |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Product Family | MECHANICAL |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hardware Type | "13 /16 """ |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 375 LBS/in |
| InvoiceDescription | 4/0-500 CU LUG ST SCR 1H;500 COP 1H TERM LUG |
| Item Number | 36585 |
| Long Description | CONDUCTOR TERMINAL LUG, SOCKET SET SCREW TYPE; HIGH COPPER ALLOY MATERIAL; 2-9/16 INCH OVERALL LENGTH; 4/0 AWG STRANDED MIN. CONDUCTOR SIZE; 500 KCMIL STRANDED MAX. CONDUCTOR SIZE; COPPER CONDUCTOR MATERIAL; UL 468A/B APPROVAL; 1 CONDUCTOR(S) |
| MSDS Form Number | * |
| Material | Copper;High Copper Alloy |
| Maximum Conductor Size | 500 KCMIL Stranded |
| Minimum Conductor Size | 4/0 AWG Stranded |
| Minimum Pack Quantity | 1 |
| Model | KA |
| Noun | * |
| Number Of Conductors | 1 |
| Number Of Pad Holes | 1 |
| Overall Length | 2-9/16 Inch |
| Pad Size | 1-3/8 Inch Width x 9/32 Inch Thickness |
| Pad Type | Equipment |
| Pallet Quantity | 1944 | |
| Product Description | 4/0-500 CU LUG ST SCR 1H |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | BUR |
| Screw Type | 13/16 Inch Allen Head |
| Special Features | Features: Compact, Economical, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Dimension N: 9/16 IN, Dimension K: 9/16 IN, Dimension T: 9/32 IN, Tongue Width: 1-3/8 IN, Installation Torque: 375 IN-LB, Length: 2-9/16 IN, Stud/bolt Hole Size: 1/2 IN, Height: 2-3/32 IN |
| Standard | UL 486A-486B |
| Stud Size | 1/2 Inch |
| Temperature Rating | 194 |
| Type | Bolted Lugs & Terminals;Socket Set Screw |
| UNSPSC | 39121408 |
| UPC | 78181036585 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
