| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KA36U2N |
| Additional Information | RoHS Compliant; Installation Torque 500 Inch-Pound; Temperature Rating 90 Deg C |
| Application | For Aluminum and Copper Conductors |
| Approval | UL 468A/B, CSA |
| Base Price | 0.0000 |
| Catalog Number | KA36U2N |
| Certification CSA Approved | Yes |
| Certification UL Listed Direct Burial | No |
| Certified Listed | BABA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Aluminum |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

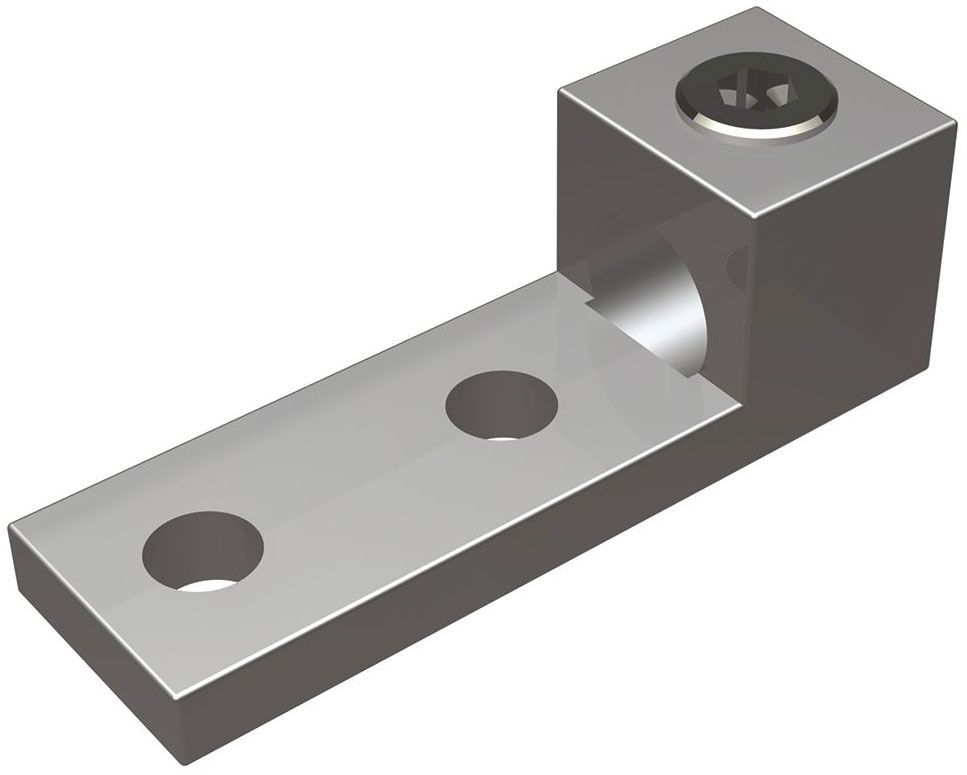

| Description Long | "Aluminum Universal Terminal, 2 Hole, 2 AWG (Str)-600 kcmil, 1/2"" Stud, 1.75"" Stud Hole Spacing, 1 Screw, Al/Cu Rated, Tin Plated." |
| Description Short | "Aluminum Universal Terminal, 2 Hole, 2 AWG (Str)-600 kcmil, 1/2"" Stud, 1.75"" Stud Hole Spacing, 1 Screw, Al/Cu Rated, Tin Plated" |
| Description Slang | 1 Cable to Flat |
| Dimension Bolt Hole Size Inch | 0.50 in |
| Dimension Bolt Size Fraction | 1/2 |
| Dimension D Inch | 3.22 in |
| Dimension Height Fraction | 1.5714285714285714 in |
| Dimension Height Inch | 1.57 in |
| Dimension Hole Size Inch | 0.56 in |
| Dimension Hole Size Mm | 14 mm |
| Dimension L Length Overall Mm | 119 mm |
| Dimension Length Overall Inch | 4.69 in |
| Dimension N Inch | 0.63 in |
| Dimension Pad Width Inch | 1.52 in |
| Dimension Stud Size Inch | 1/2 |
| Dimension Width Fraction | 1-1/2 in |
| Dimension Width Inch | 1.50 in |
| Dimension Width Mm | 38 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Dual Rated Panelboard Lugs;Electro tin-plated for low contact resistance;High strength extruded aluminum alloy;Rated to 35kV |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | BABA Compliant (All status valid till December 2024) |
| FV Product Family | MECHANICAL |
| FV Standards Industry Standards Met | UL 486A-486B |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 500 LBS/in |
| InvoiceDescription | 2STR-600 NEMA;600 ALCU 2H TERM |
| Item Number | 37040 |
| Long Description | UNIVERSAL CONDUCTOR LUG, UNIVERSAL TYPE; ELECTRO-TIN PLATED ALUMINUM ALLOY MATERIAL; 4.69 INCH OVERALL LENGTH; 2 AWG STRANDED MIN. CONDUCTOR SIZE; 600 KCMIL STRANDED MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL; UL 468A/B, CSA APPROVAL |
| MSDS Form Number | * |
| Material | Aluminum;Electro-Tin Plated Aluminum Alloy |
| Material Hardware | Aluminum | |
| Maximum Conductor Size | 600 KCMIL Stranded |
| Minimum Conductor Size | 2 AWG Stranded |
| Model | KA-U |
| Noun | * |
| Number Of Conductors | 1 |
| Number Of Conductors Ports Main Primary | 1 |
| Number Of Pad Holes | 2 |
| Overall Length | 4.69 Inch |
| Pad Size | 3.22 Inch Length x 1.52 Inch Width x 0.44 Inch Thickness |
| Product Description | 2STR-600 NEMA |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | BUR |
| Screw Type | Allen Head Bolt |
| Special Features | Universal terminal, These dual-rated one conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance |
| Standard | UL 486A-486B |
| Stud Size | 1/2 Inch |
| Temperature Rating | 194 |
| Type | Bolted Lugs & Terminals;Universal |
| UNSPSC | 39121408 |
| UPC | 78181037040 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
