| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KA4C |
| Additional Information | RoHS Compliant; Installation Torque 45 Inch-Pound; Temperature Rating 90 Deg C |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks |
| Approval | UL 468A/B, CSA |
| Base Price | 0.0000 |
| Brand Name | KA-LUG |
| Catalog Number | KA4C |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| CountryOfOrigin | IN |
| DDCATEGORY | 597 |

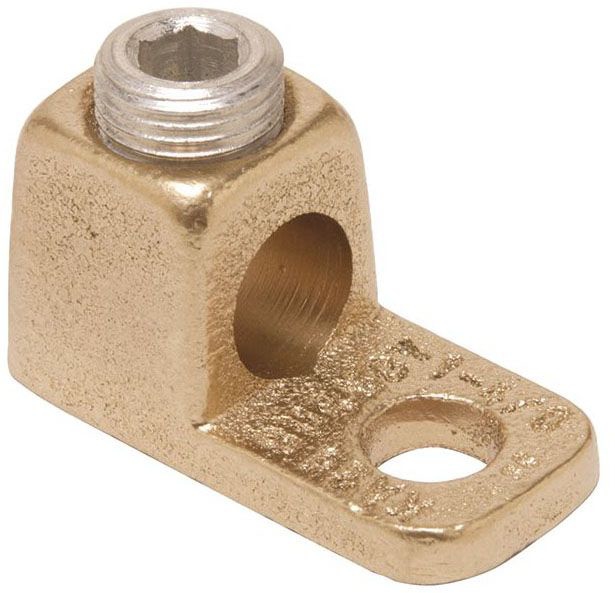

| Description Long | "Copper Terminal, 1 Hole, 14 AWG (Sol)-4 AWG (Str), 1/4"" Stud, 1 Screw." |
| Description Short | "Copper Terminal, 1 Hole, 14 AWG (Sol)-4 AWG (Str), 1/4"" Stud, 1 Screw" |
| Description Slang | Mechanical terminal for copper |
| Dimension B Length Fraction | 8/17 in |
| Dimension B Length Inch | 0.47 in |
| Dimension Bolt Size Fraction | 1/4 |
| Dimension Height Fraction | 3/4 |
| Dimension Height Inch | 0.77 in |
| Dimension Hole Size Fraction | 9/32 |
| Dimension Hole Size Inch | 0.28 in |
| Dimension Hole Size Mm | 7 mm |
| Dimension L Length Overall Mm | 28 mm |
| Dimension Length Overall Inch | 1.11 in |
| Dimension N Inch | 0.25 in |
| Dimension Pad Width Inch | 0.54 in |
| Dimension Stud Size Inch | 1/4 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Compact, high copper alloy terminal for joining cable to equipment pads or terminal blocks |
| FV BuyAmericanCompliant | No |
| FV Product Family | MECHANICAL |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hardware Type | "5 / 16 """ |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 45 LBS/in |
| InvoiceDescription | 14-4 CU LUG ST SCR 1H;4STR COP 1H TERM LUG |
| Item Number | 36140 |
| Long Description | CONDUCTOR TERMINAL LUG, COPPER ALLOY MATERIAL; 1.11 INCH OVERALL LENGTH; 14 AWG SOLID/STRANDED MIN. CONDUCTOR SIZE; 4 AWG SOLID/STRANDED MAX. CONDUCTOR SIZE; COPPER CONDUCTOR MATERIAL; UL 468A/B, CSA APPROVAL; 1 CONDUCTOR(S); 1/4 INCH STUD SIZE |
| MSDS Form Number | * |
| Material | Copper;Copper Alloy |
| Material Hardware | Steel |
| Maximum Conductor Size | 4 AWG Solid/Stranded |
| Minimum Conductor Size | 14 AWG Solid/Stranded |
| Minimum Pack Quantity | 1 |
| Model | KA |
| Noun | * |
| Number Of Conductors | 1 |
| Number Of Pad Holes | 1 |
| Overall Length | 1.11 Inch |
| Pad Size | 0.54 Inch Width x 7/64 Inch Thickness |
| Pad Type | Equipment |
| Pallet Quantity | 48000 |
| Physical Attribute Number Of Screws | 1 |
| Physical Attribute Screw Type | Slot |
| Plated | N | |
| Product Description | 14-4 CU LUG ST SCR 1H |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | BUR |
| Screw Type | 5/16 Inch Slot Head Bolt |
| Special Features | Features: Compact, Economical, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Dimension N: 1/4 IN, Dimension K: 9/32 IN, Dimension T: 7/64 IN, Tongue Width: 9/16 IN, Installation Torque: 45 IN-LB, Stud/bolt Hole Size: 1/4 IN, Length: 1-1/8 IN, Height: 3/4 IN |
| Standard | UL 486A-486B |
| Stud Size | 1/4 Inch |
| Type | Bolted Lugs & Terminals |
| UNSPSC | 39121408 |
| UPC | 78181036140 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
