| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KA8C |
| Additional Information | RoHS Compliant; Overall Height 5/8 Inch; Installation Torque 25 Inch-Pound; Number of Screw 1 |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks |
| Approval | UL 468A/B, CSA |
| Base Price | 0.0000 |
| Brand Name | KA-LUG |
| Catalog Number | KA8C |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| CountryOfOrigin | IN |
| DDCATEGORY | 597 |

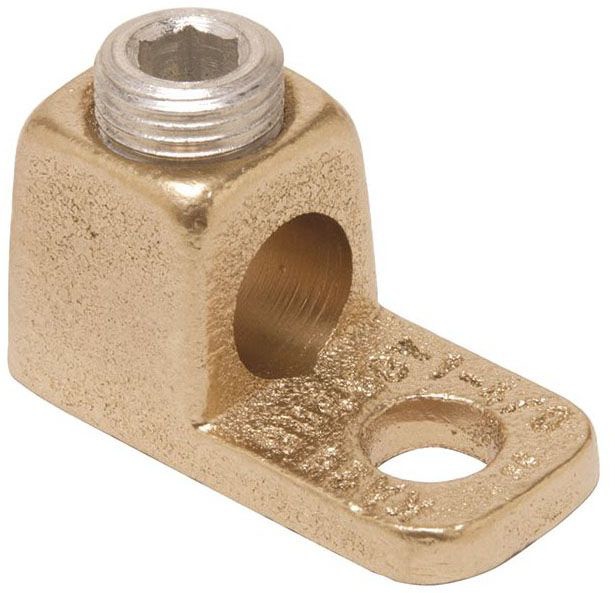

| Description Long | Copper Terminal, 1 Hole, 14 AWG (Sol)-8 AWG (Str), #10 Stud, 1 Screw. |
| Description Short | Copper Terminal, 1 Hole, 14 AWG (Sol)-8 AWG (Str), #10 Stud, 1 Screw |
| Description Slang | Mechanical terminal for copper |
| Dimension Bolt Size Fraction | #10 |
| Dimension Height Inch | 15.42 in |
| Dimension Hole Size Fraction | 7/32 |
| Dimension Hole Size Inch | 0.21 in |
| Dimension Hole Size Mm | 5.3 mm |
| Dimension L Length Overall Mm | 20.6 mm |
| Dimension Length Overall Inch | 0.81 in |
| Dimension Mounting Hardware Bolt Size Inch | 12.24 UNC |
| Dimension N Inch | 0.19 in |
| Dimension Pad Width Inch | 0.38 in |
| Dimension Width Inch | 0.38 in |
| Dimension Width Mm | 9.70 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Compact, high copper alloy terminal for joining cable to equipment pads or terminal blocks |
| FV BuyAmericanCompliant | No |
| FV Product Family | MECHANICAL |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hardware Type | #12 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 14-8 CU LUG ST SCR 1H;8STR COP 1H TERM LUG |
| Item Number | 36205 |
| Long Description | CONDUCTOR TERMINAL LUG, SET SCREW TYPE; HIGH COPPER ALLOY MATERIAL; 13/16 INCH OVERALL LENGTH; 14 AWG SOLID/STRANDED MIN. CONDUCTOR SIZE; 8 AWG SOLID/STRANDED MAX. CONDUCTOR SIZE; COPPER CONDUCTOR MATERIAL; UL 468A/B, CSA APPROVAL; 1 CONDUCTOR(S) |
| MSDS Form Number | * |
| Material | Copper;High Copper Alloy |
| Material Hardware | Steel |
| Maximum Conductor Size | 8 AWG Solid/Stranded |
| Minimum Conductor Size | 14 AWG Solid/Stranded |
| Minimum Pack Quantity | 1 |
| Model | KA |
| Noun | * |
| Number Of Conductors | 1 |
| Number Of Pad Holes | 1 |
| Overall Length | 13/16 Inch |
| Pad Size | 3/8 Inch Width x 3/32 Inch Thickness |
| Pad Type | Equipment |
| Pallet Quantity | 96000 |
| Physical Attribute Screw Type | Flat head round tip |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 14-8 CU LUG ST SCR 1H |
| Product Keywords | WEBREADY |
| Product Name | KA8C, Copper Terminal, 1 Hole, 14 AWG (Sol)-8 AWG (Str), #10 Stud, 1 Screw. |
| Product Type | TERMINAL | |
| ProductLine | BUR |
| Screw Type | #12 Slotted Head |
| Special Features | Features: Compact, Economical, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Dimension T: 3/32 IN, Dimension N: 3/16 IN, Dimension K: 7/32 IN, Tongue Width: 3/8 IN, Installation Torque: 25 IN-LB, Length: 13/16 IN, Stud/bolt Hole Size: #10, Height: 5/8 IN |
| Standard | UL 486A-486B |
| Stud Size | #10 |
| Type | Bolted Lugs & Terminals;Set Screw |
| UNSPSC | 39121408 |
| UPC | 78181036205 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
