| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KC25 |
| Additional Information | Overall Dimension 1.94 Inch Length x 1.19 Inch Height |
| Application | For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Body Hex Size | 3/4 Inch |
| Brand Name | SERVIT POST[TM] |
| Catalog Number | KC25 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Size | 2 to 2/0 AWG Solid, 2 to 1/0 AWG Stranded |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | "Mechanical Grounding Connector, Cable to Flat, 2-1/0 AWG (Str) / 2-2/0 AWG (Sol), Stud: 1/2""" |
| Description Short | Cable to Flat;Mechanical SERVIT POST Connector |
| Dimension B Length Fraction | 9/16 in |
| Dimension Body Width Inch | 0.75 in |
| Dimension Bolt Size Fraction | 1/2 |
| Dimension D Inch | 0.75 in |
| Dimension Height Fraction | 1-1/8 |
| Dimension Length Overall Inch | 1.94 in |
| Dimension Nut Width Inch | 0.93 in |
| Dimension P Inch | 0.39 in |
| Dimension Threads Per Inch | 13 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | 1-Wrench installation;Also used to tap 1 or 2 cables from bus bar;SERVIT POST mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Product Family | Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Bar/Flat |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 2-1/0 STR 9/16 POST 1 CO;1/0 POST SPLIT BOLT |
| Item Number | 25565 |
| Long Description | MECHANICAL GROUNDING CONNECTOR, LEADED BRONZE ALLOY MATERIAL; CABLE TO FLAT/STEEL STRUCTURE/FENCE POST/TRANSFORMER USED ON; 9/16 INCH STUD LENGTH; UL, CSA APPROVAL; 1 CONDUCTOR(S); 2 TO 2/0 AWG SOLID, 2 TO 1/0 AWG STRANDED CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Bronze, Leaded, Commercial;Leaded Bronze Alloy |
| Minimum Pack Quantity | 1 |
| Model | KC |
| Noun | * |
| Number Of Conductors | 1 |
| Nut Hex Size | 15/16 Inch |
| Pallet Quantity | 29700 |
| Physical Attribute Number Of Conductors Accommodated Total | 1 |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 2-1/0 STR 9/16 POST 1 CO |
| Product Keywords | WEBREADY |

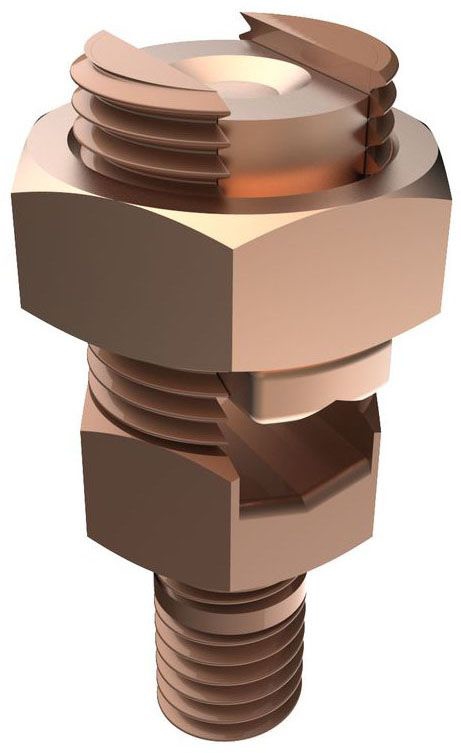

| Product Name | KC25, SERVIT POST Mechanical Connector, Cable to Flat |
| Product Type | Mechanical |
| ProductLine | BUR |
| Special Features | Features: SERVIT POST Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar, One-Wrench Installation, Conductor Type: Run: Commercial Stranded Copper, Commercial Solid Copper, Cross Flats: 15/16, 3/4 IN, Dimension B: 9/16 IN, Height: 1-7/8 IN, Stud Size: 1/2-13 |
| Standard | UL467 |
| Standards Industry Standards Met | UL467 |
| Standards RoHS Compliance Status | EX |
| Stud Diameter | 1/2 Inch-13 TPI |
| Stud Installation Torque Inch Pounds | 480 LBS/in | |
| Stud Length | 9/16 Inch |
| Type | KC and K2C Series |
| UNSPSC | 39121408 |
| UPC | 78181025565 |
| Used On | Cable to Flat/Steel Structure/Fence Post/Transformer |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
