| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KC28 |
| Additional Information | RoHS Compliant; Height 1-3/4 Inch |
| Application | For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Body Hex Size | 1-3/16 Inch |
| Brand Name | Burndy;SERVIT POST[TM] |
| Catalog Number | KC28 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Size | 1 to 4/0 AWG Solid/Stranded (Copper) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | "Mechanical Grounding Connector, Cable to Flat, 1-4/0 AWG, 5/8"" Stud, 1-3/4"" Height, B=3/4""" |
| Description Short | Mechanical SERVIT POST Connector; Cable to Flat |
| Dimension B Length Fraction | 3/4 in |
| Dimension Body Width Inch | 1.18 in |
| Dimension Bolt Size Fraction | 5/8 |
| Dimension D Inch | 1.00 in |
| Dimension Height Fraction | 1-3/4 |
| Dimension Length Overall Inch | 2.95 in |
| Dimension Nut Width Inch | 1.35 in |
| Dimension P Inch | 0.55 in |
| Dimension Threads Per Inch | 11 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FV Product Family | Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Bar/Flat |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1-4/0 STR 3/4 POST 1 CON;4/0 POST SPLIT BOLT |
| Item Number | 25625 |
| Long Description | MECHANICAL GROUNDING CONNECTOR, CAST COPPER ALLOY MATERIAL; CABLE TO FLAT SURFACE/STEEL STRUCTURE/FENCE POST/TRANSFORMER USED ON; 3/4 INCH STUD LENGTH; UL, CSA APPROVAL; 1 CONDUCTOR(S); 1 TO 4/0 AWG SOLID/STRANDED (COPPER) CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Copper Alloy, Cast;Cast Copper Alloy |
| Minimum Pack Quantity | 1 |
| Model | KC |
| Noun | * |
| Number Of Conductors | 1 |
| Nut Hex Size | 1-1/2 Inch |
| Physical Attribute Number Of Conductors Accommodated Total | 1 |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 1-4/0 STR 3/4 POST 1 CON |
| Product Keywords | WEBREADY |

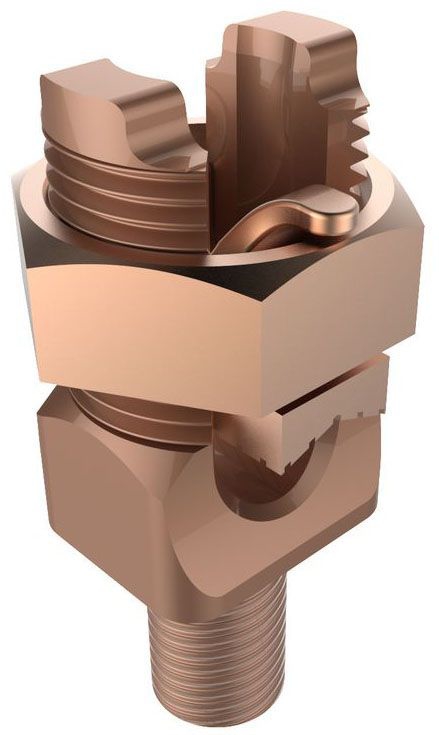

| Product Name | KC28, SERVIT POST Mechanical Connector, Cable to Flat |
| Product Type | Mechanical |
| ProductLine | BUR |
| Special Features | Features: SERVIT POST Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar, One-Wrench Installation, Cross Flats: 1-1/2, 1-3/16 IN, Conductor Type: Run: Commercial Stranded Copper, Commercial Solid Copper, Dimension B: 3/4 IN, Stud Size: 5/8-11, Height: 2-3/4 IN |
| Standard | UL467 |
| Standards Industry Standards Met | UL467 |
| Standards RoHS Compliance Status | EX |
| Stud Diameter | 5/8 Inch-11 TPI |
| Stud Installation Torque Inch Pounds | 660 LBS/in |
| Stud Length | 3/4 Inch |
| Sub Brand | SERVIT POST |
| Trade Name | SERVIT POST |
| Type | KC and K2C Series |
| UL Listed | Yes |
| UNSPSC | 39121408 |
| UPC | 78181025625 |
| Used On | Cable to Flat Surface/Steel Structure/Fence Post/Transformer |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
