| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KPA25 |
| Additional Information | RoHS Compliant; Overall Height 1.25 Inch; Installation Torque 180 Inch-Pound; Number of Screw 1 |
| Application | For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Burndy;SCRULUG |
| Catalog Number | KPA25 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | "Copper Terminal, 1 Hole, 4-1/0 AWG (Str), 5/16"" Stud, 1 Screw, Tin Plated." |
| Description Short | "Copper Terminal, 1 Hole, 4-1/0 AWG (Str), 5/16"" Stud, 1 Screw, Tin Plated" |
| Description Slang | SCRULUG KPA |
| Dimension Bolt Size Fraction | 5/16 |
| Dimension D Inch | 0.81 in | |
| Dimension Height Fraction | 1-1/4 in |
| Dimension Height Inch | 1.25 in |
| Dimension Hole Size Inch | 0.33 in |
| Dimension Hole Size Mm | 8 mm |
| Dimension L Length Overall Mm | 46 mm |
| Dimension Length Overall Inch | 1.82 in |
| Dimension Pad Width Inch | 0.75 in |
| Dimension Stud Size Inch | 5/16 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 180 |
| InvoiceDescription | SCRULUG 4-1/0, 5/16 STUD;1/0STR COP 1H TERM LUG |
| Item Number | 35485 |
| Long Description | TERMINAL LUG, TIN PLATED HIGH COPPER ALLOY MATERIAL; 1.82 INCH OVERALL LENGTH; 4 AWG STRANDED MIN. CONDUCTOR SIZE; 1/0 AWG STRANDED MAX. CONDUCTOR SIZE; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 1 CONDUCTOR(S); 5/16 INCH STUD SIZE |
| MSDS Form Number | * |
| Material | Copper;Tin Plated High Copper Alloy |
| Maximum Conductor Size | 1/0 AWG Stranded |
| Minimum Conductor Size | 4 AWG Stranded |
| Minimum Pack Quantity | 1 |
| Model | KPA |
| Noun | * |
| Number Of Conductors | 1 |
| Number Of Pad Holes | 1 |
| Overall Length | 1.82 Inch |
| Pad Size | 0.81 Inch Length x 0.75 Inch Width x 0.1 Inch Thickness |
| Pad Type | Equipment |
| Physical Attribute Number Of Screws | 1 |
| Physical Attribute Screw Type | Hexagonal Bolt |
| Plated | Y |
| Plating Type | Tin |
| Product Description | SCRULUG 4-1/0, 5/16 STUD |
| Product Keywords | WEBREADY |

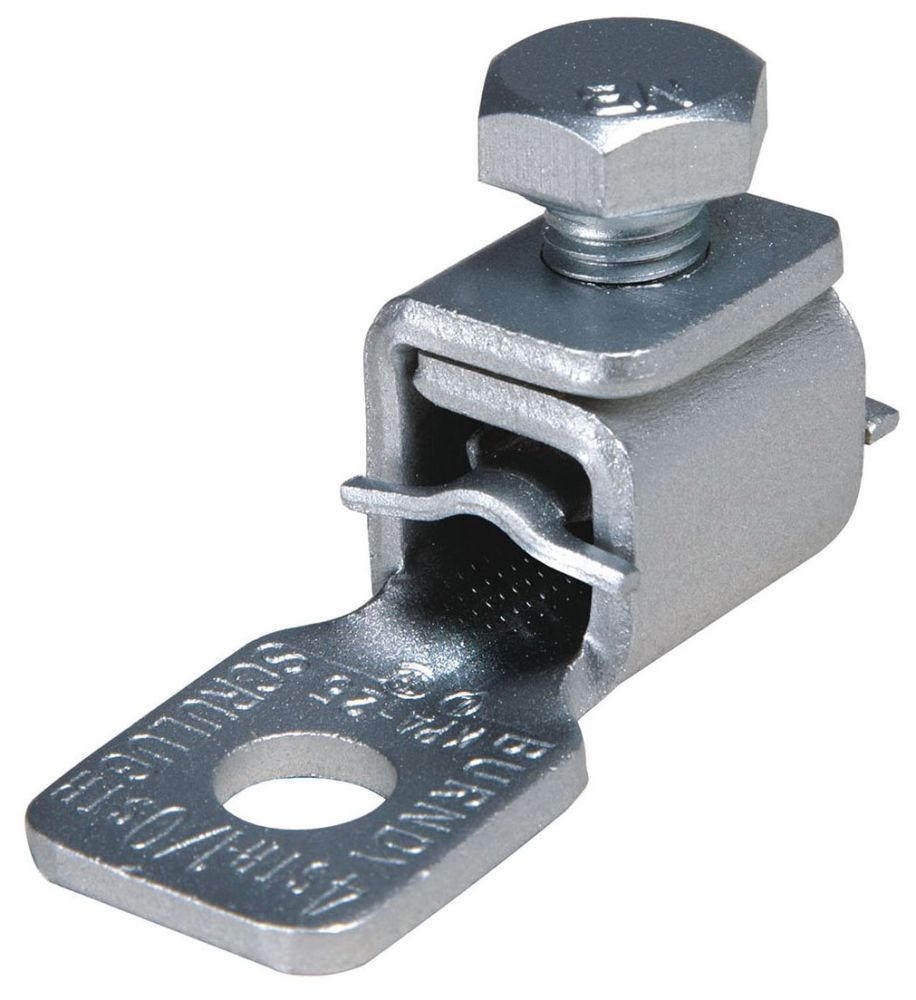

| Product Name | Pressure Bar Style Copper Lug Connector |
| Product Type | TERMINAL |
| ProductLine | BUR |
| Screw Type | Hex Head |
| Special Features | Features: High Copper Alloy Tin-Plated Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications, The Tongue And Body Are A One-Piece Design, The Pressure Bar Equalizes Pressure Over The Conductor And Prevents The Screw From Cutting Into The Cable, Stud/bolt Size: 3/8 IN, Stud/bolt Hole Size: 5/16 IN, Set Screw Type: Slot Robertson, Dimension N: 0.41 IN, Installation Torque: 180 IN-LB, Length: 1.7 IN, Width: 0.75 IN, Height: 1.25 IN, Tongue Width : 0.62 IN, Dimension D: 0.81 IN, Dimension K: 0.33 IN, Dimension T: 0.1 IN |
| Standard | UL 486A-486B |
| Standards Industry Standards Met | UL 486A-486B |
| Standards RoHS Compliance Status | CM |
| Stud Size | 5/16 Inch |
| Sub Brand | SCRULUG |
| Trade Name | SCRULUG |
| Type | Bolted Lugs & Terminals |
| UL Listed | Yes |
| UNSPSC | 39121408 |
| UPC | 78181035485 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
