| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KPA4CTP |
| Additional Information | RoHS Compatible; Strip Length 9/16 Inch; Installation Torque 45 Lb-Inch |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks |
| Approval | UL 468-A, UL 468-B, CSA |
| Base Price | 0.0000 |
| Brand Name | Burndy;SCRULUG[TM] |
| Catalog Number | KPA4CTP |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No | |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| CountryOfOrigin | MX |
| DDCATEGORY | 597 |

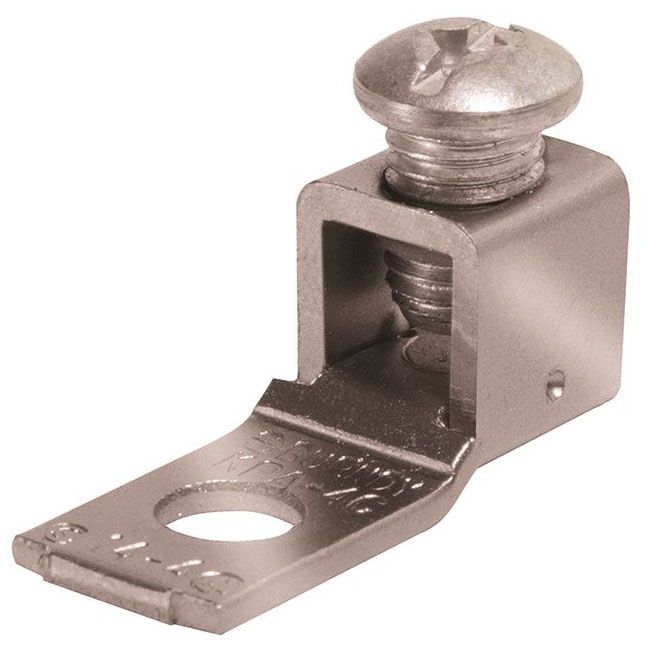

| Description Long | "Copper Terminal, 1 Hole, 14 AWG (Sol)-4 AWG (Str), 1/4"" Stud." |
| Description Short | "Copper Terminal, 1 Hole, 14 AWG (Sol)-4 AWG (Str), 1/4"" Stud" |
| Description Slang | SCRULUG KPA |
| Dimension Bolt Size Fraction | 1/4 |
| Dimension Height Fraction | 1 in |
| Dimension Height Inch | 1.00 in |
| Dimension Hole Size Inch | 0.28 in |
| Dimension Hole Size Mm | 7 mm |
| Dimension L Length Overall Mm | 33 mm |
| Dimension Length Overall Inch | 1.28 in |
| Dimension Pad Width Inch | 0.50 in |
| Dimension Strip Length Inch | 9/16 |
| Dimension Stud Size Inch | 1/4 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hardware Type | 5/16 Dia.Slot Robertson |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 45 LBS/in |
| InvoiceDescription | SCRULUG,#14 Sol-#4 Str;14 TO 6 SCRULUG |
| Item Number | 80273 |
| Long Description | TERMINAL LUG, 1-PIECE TYPE; TIN PLATED COPPER ALLOY MATERIAL; 1.28 INCH OVERALL LENGTH; 14 AWG SOLID MIN. CONDUCTOR SIZE; 4 AWG STRANDED MAX. CONDUCTOR SIZE; COPPER CONDUCTOR MATERIAL; UL 468-A, UL 468-B, CSA APPROVAL; 1/4 INCH STUD SIZE |
| MSDS Form Number | * |
| Material | Copper;Tin Plated Copper Alloy |
| Maximum Conductor Size | 4 AWG Stranded |
| Minimum Conductor Size | 14 AWG Solid |
| Minimum Pack Quantity | 1 |
| Model | KPA |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 1.28 Inch |
| Pad Size | 0.71 Inch L x 0.5 Inch W x 0.07 Inch Thk |
| Pad Type | Equipment |
| Physical Attribute Number Of Screws | 1 |
| Physical Attribute Screw Type | Slot |
| Plated | Y |
| Plating Type | Tin |
| Product Description | SCRULUG,#14 Sol-#4 Str |
| Product Keywords | WEBREADY |
| Product Name | Tin Plated Copper Lug Connector |
| Product Type | TERMINAL |
| ProductLine | BUR |
| Screw Type | 5/16 Inch Slot Robertson |
| Special Features | Features: High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, One Piece Design, Superior Torque And Pull Out Performance, Convenient Range Taking Design, Reduces Catalog Numbers, One Catalog Number Accommodates Several Conductor Sizes, High Conductivity Copper Alloy, Long Lasting, Reliable Contact, Compact Design, Easy To Use, Slot Robertson Screw, Hex Head, Hex Socket Bolt, No Special Installation Tools Required, Eliminates Over-Torquing/Potential Conductor Damage, Dimension K: 0.28 IN, Stud/bolt Hole Size: 1/4 IN, Dimension D: 0.71 IN, Dimension N: 0.33 IN, Dimension T: 07 IN, Set Screw Type: Slot Robertson, Tongue Width: 0.5 IN, Installation Torque: 45 IN-LB, Height: 1 IN, Length: 1.28 IN |
| Standard | UL 486A-486B |
| Standards Industry Standards Met | UL 486A-486B |
| Standards RoHS Compliance Status | CM |
| Stud Size | 1/4 Inch |
| Sub Brand | SCRULUG |
| Trade Name | SCRULUG |
| Type | Bolted Lugs & Terminals;1-Piece |
| UL Listed | Yes |
| UNSPSC | 39121408 |
| UPC | 78181080273 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
