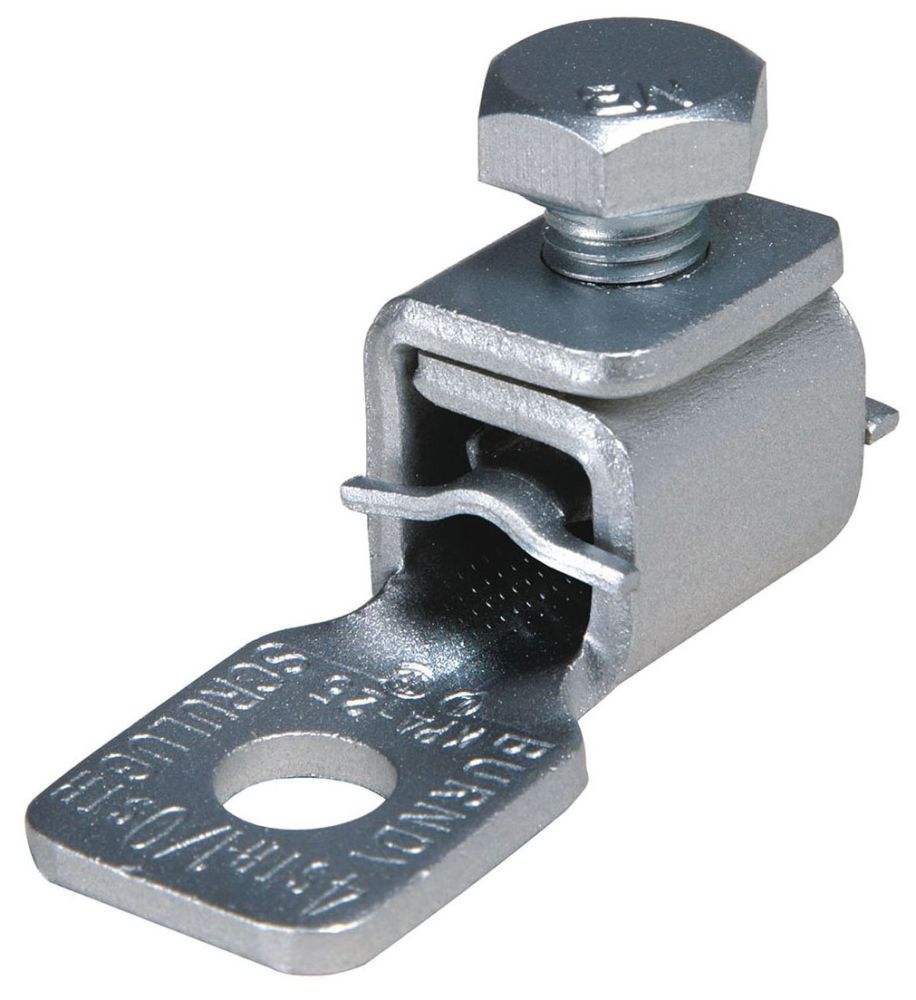

| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KPA8C |
| Additional Information | RoHS Compatible; Installation Torque 25 Lb-Inch |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks |
| Approval | UL 468-A, UL 468-B, CSA |
| Base Price | 0.0000 |
| Brand Name | SCRULUG[TM] |
| Catalog Number | KPA8C |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | No |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | "Copper Terminal, 1 Hole, 14 AWG (Sol)-8 AWG (Str), .10"" Stud, 1 Screw." |
| Description Short | "Copper Terminal, 1 Hole, 14 AWG (Sol)-8 AWG (Str), .10"" Stud, 1 Screw" |
| Description Slang | SCRULUG KPA |
| Dimension Bolt Size Fraction | #10 |
| Dimension D Inch | 0.47 in |
| Dimension Height Fraction | 18/25 in |
| Dimension Height Inch | 0.72 in |
| Dimension Hole Size Inch | 0.21 in |
| Dimension Hole Size Mm | 5 mm |
| Dimension L Length Overall Mm | 25 mm |
| Dimension Length Overall Inch | 0.97 in |
| Dimension N Inch | 0.22 in |
| Dimension Pad Width Inch | 0.38 in |
| Dimension Stud Size Inch | #10 |
| Dimension Width Inch | 0.38 in |
| Dimension Width Mm | 10 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | High copper alloy terminal (tin-plated) for joining a wide range of cable to equipment pads or terminal blocks;Tongue and body are 1-piece design, pressure bar equalizes pressure over the conductor and prevents the screw from cutting into the cable |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Product Family | MECHANICAL |
| FV Trade Name | SCRULUG |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 25 LBS/in |
| InvoiceDescription | SCRULUG,#8 Str-#14 Sol;8STR COP 1H TERM LUG |
| Item Number | 35345 |
| Long Description | TERMINAL LUG, 1-PIECE TYPE; TIN PLATED COPPER ALLOY MATERIAL; 0.97 INCH OVERALL LENGTH; 14 AWG SOLID MIN. CONDUCTOR SIZE; 8 AWG STRANDED MAX. CONDUCTOR SIZE; COPPER CONDUCTOR MATERIAL; UL 468-A, UL 468-B, CSA APPROVAL; #10 STUD SIZE |
| MSDS Form Number | * |
| Material | Copper;Tin Plated Copper Alloy |
| Maximum Conductor Size | 8 AWG Stranded |
| Minimum Conductor Size | 14 AWG Solid |
| Minimum Pack Quantity | 1 |
| Model | KPA |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 0.97 Inch |
| Pad Size | 0.47 Inch L x 0.38 Inch W x 0.06 Inch Thk |
| Pad Type | Equipment |
| Physical Attribute Number Of Screws | 1 |
| Physical Attribute Screw Type | Slot |
| Plated | Y |
| Plating Type | Tin | |
| Product Description | SCRULUG,#8 Str-#14 Sol |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | BUR |
| Screw Type | Slot |
| Special Features | Features: High Copper Alloy Tin-Plated Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications, The Tongue And Body Are A One-Piece Design, The Pressure Bar Equalizes Pressure Over The Conductor And Prevents The Screw From Cutting Into The Cable, Dimension K: 0.21 IN, Stud/bolt Hole Size: #10, Dimension D: 0.47 IN, Dimension N: 0.22 IN, Dimension T: 06 IN, Set Screw Type: Slot Robertson, Tongue Width: 0.38 IN, Installation Torque: 35 IN-LB, Length: 0.95 IN, Height: 0.72 IN |
| Standard | UL 486A-486B |
| Stud Size | #10 |
| Type | Bolted Lugs & Terminals;1-Piece |
| UNSPSC | 39121408 |
| UPC | 78181035345 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
