| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KS17 |
| Additional Information | RoHS Compliant; Torque Rating 165 Inch-Pound; Cross Flat 0.63 Inch |
| Application | For Direct Burial Applications In Earth Or Concrete, Copper |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | SERVIT [R] |
| Catalog Number | KS17 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Certified Listed | Buy America Compliant, Buy American Act Compliant, BABA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Copperweld |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | Copper Split Bolt, Cu: 8 AWG (Str)-6 AWG (Sol) (Run & Tap),Length:1.14. |
| Description Short | Copper Split Bolt, Cu: 8 AWG (Str)-6 AWG (Sol) (Run & Tap), Length:1.14 |
| Dimension B Length Fraction | 29/50 in |
| Dimension B Length Inch | .58 in |
| Dimension Cross Flats Inch | 0.63 in |
| Dimension L Length Overall Mm | 29 mm |
| Dimension Length Overall Inch | 1.14 |
| Dimension Width Fraction | 9/20 in |
| Dimension Width Inch | 0.45 in |
| Dimension Width Mm | 11 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Compact, high-strength, copper alloy with free-running threads and easy to grip wrench flats;Highly resistant to cracking and corrosion;UL467 Listed for Direct Burial applications in earth or concrete |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | Buy America Compliant, Buy American Act Compliant, BABA Compliant (All status valid till December 2024) |
| FV Product Family | Power Connectors>Split Bolts>KS |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| Installation | Split Bolt |
| Installation Torque Recommended In Lb | 165 in |
| InvoiceDescription | SERVIT 8STR - 6SOL;6SOL SPLIT BOLT CONN |
| Item Number | 01150 |
| Long Description | MECHANICAL CONNECTOR, HIGH COPPER ALLOY MATERIAL; 8 AWG STRANDED (COPPER) MIN. RUN CONDUCTOR SIZE; 6 AWG SOLID (COPPER), 6 AWG SOLID, (3) 12 AWG STRANDED (COPPERWELD), 8 AWG TYPE A (COPPERWELD), 9-1/2 AWG TYPE D (COPPERWELD) MAX. RUN CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Copper;High Copper Alloy |
| Maximum Run Conductor Size | 6 AWG Solid (Copper), 6 AWG Solid, (3) 12 AWG Stranded (Copperweld), 8 AWG Type A (Copperweld), 9-1/2 AWG Type D (Copperweld) |
| Maximum Tap Conductor Size | 6 AWG Solid (Copper), 6 AWG Solid, (3) 12 AWG Stranded (Copperweld), 8 AWG Type A (Copperweld), 9-1/2 AWG Type D (Copperweld) |
| Minimum Pack Quantity | 100 |
| Minimum Run Conductor Size | 8 AWG Stranded (Copper) |
| Minimum Tap Conductor Size | 14 AWG Stranded (Copper) |
| Model | KS |
| Noun | * |
| Operating Temperature Celcius Max | 90 C |
| Operating Temperature Celcius Min | 0 C |
| Operating Temperature Range Celcius | 0 - 90 |
| Operating Temperature Range Fahrenheit | 32 - 194 |
| Pallet Quantity | 99000 |
| Plated | N |
| Plating Type | Unplated |
| Product Description | SERVIT 8STR - 6SOL |
| Product Keywords | WEBREADY |

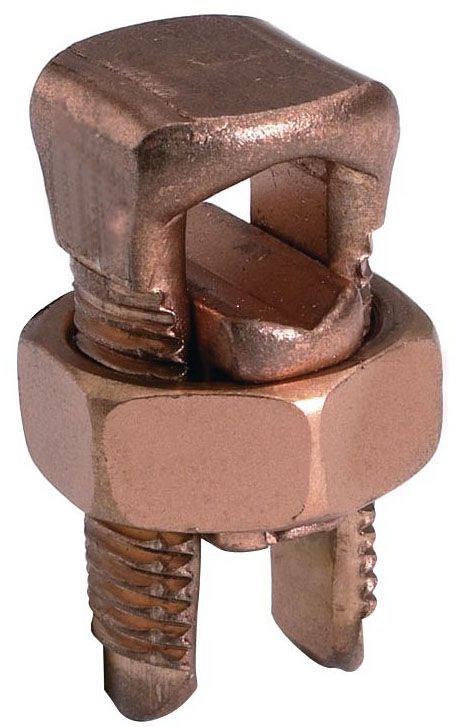

| Product Name | KS17, Split Bolt Connector, Run/Tap: #8 AWG Str-#6 AWG Sol |
| Product Type | Mechanical | |
| ProductLine | BUR |
| Special Features | Features: UL467 Listed For Direct Burial Applications In Earth Or Concrete, Compact, High-Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Cracking And Corrosion, Conductor Type: Run And Tap: Solid Copperweld, Commercial Stranded And Solid Copper, Type D Copperweld, Stranded Copperweld, Type A Copperweld, Installation Torque: 165 IN-LB, Length: 1.14 IN, Cross Flats: 0.63 IN, Width: 0.45 IN |
| Standard | RUS |
| Type | KS, Compact |
| UNSPSC | 39121408 |
| UPC | 78181001150 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
