| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KS22 |
| Additional Information | RoHS Compliant; Overall Dimension 0.69 Inch Length x 0.6 Inch Width; Installation Torque 275 Inch-Pound; Cross Flat 0.75 Inch |
| Application | For Direct Burial Applications In Earth Or Concrete, Copper |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Burndy;SERVIT [R] |
| Catalog Number | KS22 |
| Certification CSA Approved | No |
| Certification ETL | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Copperweld |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | Copper Split Bolt, Cu: 8 AWG (Str)-6 AWG (Sol) (Run & Tap),Length:1.50. |
| Description Short | Copper Split Bolt Connectors |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FV Product Family | Power Connectors>Split Bolts>KS |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| Installation | Split Bolt |
| InvoiceDescription | SERVIT 6 STR - 2 SOL;3STR SPLIT BOLT CONN |
| Item Number | 01250 |
| Long Description | MECHANICAL CONNECTOR, HIGH COPPER ALLOY MATERIAL; 6 AWG STRANDED (COPPER) MIN. RUN CONDUCTOR SIZE; 2 AWG SOLID, (3) 8 AWG STRANDED, 4 AWG TYPE A, 6 AWG TYPE D (COPPERWELD) MAX. RUN CONDUCTOR SIZE; 14 AWG STRANDED (COPPER) MIN. TAP CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | High Copper Alloy |
| Maximum Run Conductor Size | 2 AWG Solid, (3) 8 AWG Stranded, 4 AWG Type A, 6 AWG Type D (Copperweld) |
| Maximum Tap Conductor Size | 2 AWG Solid (Copper), 2 AWG Solid, (3) 8 AWG Stranded, 4 AWG Type A, 6 AWG Type D (Copperweld) |
| Minimum Pack Quantity | 1 |
| Minimum Run Conductor Size | 6 AWG Stranded (Copper) |
| Minimum Tap Conductor Size | 14 AWG Stranded (Copper) |
| Model | KS |
| Noun | * |
| Pallet Quantity | 52,800 |
| Product Description | SERVIT 6 STR - 2 SOL |
| Product Keywords | WEBREADY |

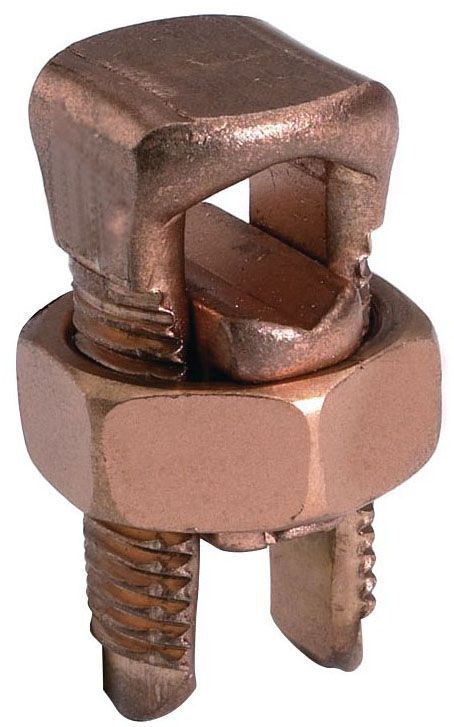

| Product Name | KS22, Split Bolt Connector |
| ProductLine | BUR |
| Special Features | Features: UL467 Listed For Direct Burial Applications In Earth Or Concrete, Compact, High-Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Cracking And Corrosion, Conductor Type: Run And Tap: Solid Copperweld, Commercial Stranded And Solid Copper, Type D Copperweld, Stranded Copperweld, Type A Copperweld, Installation Torque: 275 IN-LB, Length: 1.5 IN, Cross Flats: 0.75 IN, Width: 0.6 IN |
| Standards RoHS Compliance Status | CM |
| Sub Brand | SERVIT |
| Type | KS, Compact |
| UL Listed | Yes |
| UNSPSC | 39121408 |
| UPC | 78181001250 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
