| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KS223 |
| Additional Information | RoHS Compatible; Size 1.33 Inch L x 0.84 Inch W; Installation Torque 275 Lb-Inch; Cross Flat 0.74 Inch |
| Application | For Direct Burial Applications, Copper, Copperweld |
| Base Price | 0.0000 |
| Brand Name | SERVIT[R] |
| Catalog Number | KS223 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | BABA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Copperweld |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | Copper Split Bolt, Cu: 6 AWG (Str)-2 AWG (Sol) (Run & Tap). |
| Description Short | Copper Split Bolt, Cu: 6 AWG (Str)-2 AWG (Sol) (Run & Tap) |
| Dimension Cross Flats Inch | .74 in |
| Dimension L Length Overall Mm | 34 mm |
| Dimension Length Overall Inch | 1.5 |
| Dimension Width Inch | 0.84 in |
| Dimension Width Mm | 21 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Compact, high-strength, copper alloy with free-running threads and easy to grip wrench flats;Highly resistant to cracking and corrosion |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | BABA Compliant (All status valid till December 2024) |
| FV Product Family | Power Connectors>Split Bolts>KS |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| Installation | Split Bolt |
| Installation Torque Recommended In Lb | 275 LBS/in |
| InvoiceDescription | SERVIT 6 STR - 2 SOL, 1.33 IN L;3STR SPLIT BOLT CONN |
| Item Number | 02250 |
| Long Description | MECHANICAL CONNECTOR, COPPER ALLOY MATERIAL; 14 AWG STRANDED (COPPER), 2 AWG SOLID, (3) 8 AWG STRANDED, 4 A, 6 D (COPPERWELD) MAX. RUN CONDUCTOR SIZE; 14 AWG STRANDED (COPPER) MIN. TAP CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Copper;Copper Alloy |
| Maximum Run Conductor Size | 14 AWG Stranded (Copper), 2 AWG Solid, (3) 8 AWG Stranded, 4 A, 6 D (Copperweld) |
| Maximum Tap Conductor Size | 2 AWG Solid, (3) 8 AWG Stranded, 4 A, 6 D (Copperweld) |
| Minimum Pack Quantity | 1 |
| Minimum Tap Conductor Size | 14 AWG Stranded (Copper) |
| Model | KS-3 |
| Noun | * |
| Pallet Quantity | 17400 |
| Plated | N |
| Plating Type | Unplated |
| Product Description | SERVIT 6 STR - 2 SOL, 1.33 IN L |
| Product Keywords | WEBREADY |

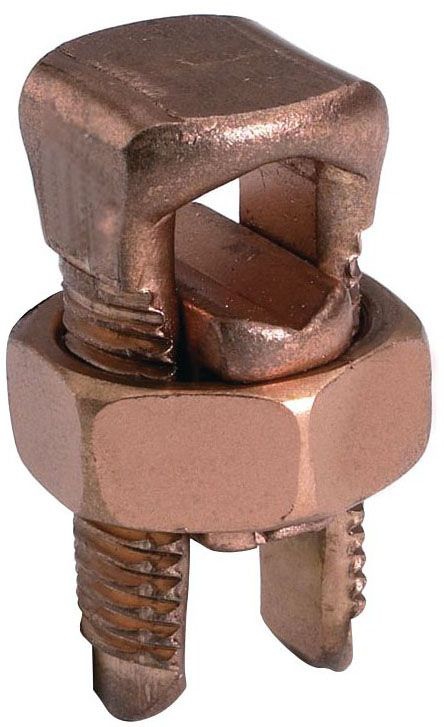

| Product Name | KS223, Split Bolt Connector, Run/Tap: #6 AWG Str-#2 AWG Sol |
| Product Type | Mechanical |
| ProductLine | BUR |
| Special Features | Features: Compact, High Strength, High Copper Alloy SERVIT Split-Bolt Has Free running Threads And Easy To Grip Wrench Flats, Highly Resistant To Season Cracking And Corrosion, The SERVIT Provides Maximum Pressure And Assures A Secure Connection On All Combinations Of Run And Tap Conductors, Type KS-3 Accommodates 3 Maximum Size Conductors, Conductor Type: Run And Tap: Solid Copperweld, Commercial Stranded And Solid Copper, Type D Copperweld, Stranded Copperweld, Type A Copperweld, Installation Torque: 275 IN-LB, Length: 1.5 IN, Cross Flats: 0.75 IN, Width: 0.6 IN |
| Standard | RUS |
| Standards Industry Standards Met | RUS |
| Standards RoHS Compliance Status | CM |
| Trade Name | SERVIT |
| Type | KS-3, Compact |
| UL Listed | No |
| UNSPSC | 39121408 |
| UPC | 78181002250 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
