| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KS25 |
| Additional Information | RoHS Compliant; Overall Dimension 0.83 Inch Length x 0.73 Inch Width; Installation Torque 385 Inch-Pound; Cross Flat 0.94 Inch |
| Application | For Direct Burial Applications In Earth Or Concrete, Copper |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | SERVIT [R] |
| Catalog Number | KS25 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Copperweld |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | Copper Split Bolt, Cu: 4 AWG-1/0 AWG (Str) (Run & Tap). |
| Description Short | Copper Split Bolt, Cu: 4 AWG-1/0 AWG (Str) (Run & Tap) |
| Dimension B Length Fraction | 83/100 in |
| Dimension B Length Inch | .83 in |
| Dimension Cross Flats Inch | 0.94 in |
| Dimension L Length Overall Mm | 45 mm |
| Dimension Length Overall Inch | 1.77 |
| Dimension Width Fraction | 73/100 in |
| Dimension Width Inch | 0.73 in |
| Dimension Width Mm | 19 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Compact, high-strength, copper alloy with free-running threads and easy to grip wrench flats;Highly resistant to cracking and corrosion;UL467 Listed for Direct Burial applications in earth or concrete |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Product Family | Power Connectors>Split Bolts>KS |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| Installation | Split Bolt |
| Installation Torque Recommended In Lb | 385 in |
| InvoiceDescription | SERVIT 4 STR - 1/0 STR;1/0STR SPLIT BOLT CONN |
| Item Number | 01310 |
| Long Description | MECHANICAL CONNECTOR, HIGH COPPER ALLOY MATERIAL; 4 AWG STRANDED (COPPER) MIN. RUN CONDUCTOR SIZE; 1/0 AWG STRANDED (COPPER), 2/0 AWG SOLID, (3) 5 AWG STRANDED, 2 AWG TYPE A, 4 AWG TYPE D (COPPERWELD) MAX. RUN CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Copper;High Copper Alloy |
| Maximum Run Conductor Size | 1/0 AWG Stranded (Copper), 2/0 AWG Solid, (3) 5 AWG Stranded, 2 AWG Type A, 4 AWG Type D (Copperweld) |
| Maximum Tap Conductor Size | 1/0 AWG Stranded (Copper), 2/0 AWG Solid, (3) 5 AWG Stranded, 2 AWG Type A, 4 AWG Type D (Copperweld) |
| Minimum Pack Quantity | 50 |
| Minimum Run Conductor Size | 4 AWG Stranded (Copper) |
| Minimum Tap Conductor Size | 14 AWG Stranded (Copper) |
| Model | KS |
| Noun | * |
| Pallet Quantity | 11600 |
| Plated | N |
| Plating Type | Unplated |
| Product Description | SERVIT 4 STR - 1/0 STR |
| Product Keywords | WEBREADY |

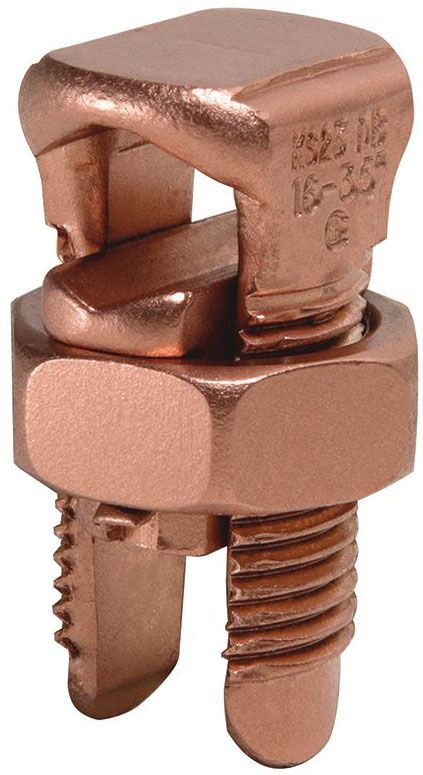

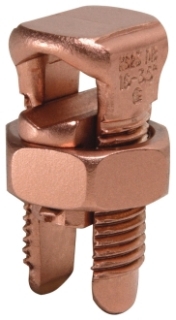

| Product Name | KS25, Split Bolt Connector, Run/Tap: #4 AWG-1/0 AWG Str |
| Product Type | Mechanical |
| ProductLine | BUR |
| Special Features | Features: UL467 Listed For Direct Burial Applications In Earth Or Concrete, Compact, High-Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Cracking And Corrosion, Conductor Type: Run And Tap: Solid Copperweld, Commercial Stranded And Solid Copper, Type D Copperweld, Stranded Copperweld, Type A Copperweld, Installation Torque: 385 IN-LB, Length: 1.77 IN, Cross Flats: 0.94 IN, Width: 0.73 IN |
| Standard | RUS |
| Standards Industry Standards Met | RUS |
| Standards RoHS Compliance Status | CM |
| Trade Name | SERVIT |
| Type | KS, Compact |
| UL Listed | Yes | |
| UNSPSC | 39121408 |
| UPC | 78181001310 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
