| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KSA1/0 |
| Additional Information | RoHS Compliant; Temperature Rating 90 Deg C; Size 1.33 Inch L x 0.75 Inch W x 0.85 Inch H; Stud/Bolt Size 3/4 Inch; Installation Torque 385 Lb-Inch |
| Application | For All Combinations of Aluminum to Aluminum, Aluminum to Copper and Copper to Copper, Aluminum Alloy Tin Plated |
| Approval | UL 486B, CSA |
| Base Price | 0.0000 |
| Brand Name | SERVIT [R] |
| Catalog Number | KSA1/0 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | No |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Aluminum/Copper |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | Aluminum Split Bolt, (Run,Tap):: Al-Al: 1/0 AWG (Str), 1/0 AWG (Str) , Al-Cu: 2 AWG (Str), 8 AWG (Sol) , Cu-Cu: 1/0 AWG (Str), 8 AWG (Sol), Tin Plated. |
| Description Short | Aluminum Split Bolt, (Run, Tap):: Al-Al: 1/0 AWG (Str), 1/0 AWG (Str), Al-Cu: 2 AWG (Str), 8 AWG (Sol), Cu-Cu: 1/0 AWG (Str), 8 AWG (Sol), Tin Plated |
| Description Slang | AL SERVIT KSA |
| Dimension B Length Fraction | 1-1/3 in |
| Dimension B Length Inch | 1.33 in |
| Dimension Bolt Size Inch | 0.75 in |
| Dimension Cross Flats Inch | 1.00 in |
| Dimension Height Fraction | 6/7 in |
| Dimension Height Inch | 0.85 in |
| Dimension L Length Overall Mm | 49 mm |
| Dimension Length Overall Inch | 1.92 in |
| Dimension Width Inch | 0.75 in |
| Dimension Width Mm | 19 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Inhibits the reformation of oxides by producting a gas-tight seal;Low contact resistance, provides equal coefficient of expansion;No scratch brushing or oxide inhibitor required;Provides maximum pressure assuring a secure connection of run and tap conductors;UL486B Listed |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Product Family | MECHANICAL |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hardware Type | 3/4-16 UNF |
| Image Location | * Image |
| Industry | ELX |
| Installation | Split Bolt |
| Installation Torque Recommended In Lb | 385 LBS/in |
| InvoiceDescription | TRITAP SERVIT 1/0ST-8SOL;STR SPLIT BOLT CONN |
| Item Number | 15300 |
| Long Description | SPLIT BOLT CONNECTOR, TIN PLATED ALUMINUM ALLOY MATERIAL; 2 AWG (ALUMINUM), 2 AWG STRANDED (COPPER) MIN. RUN CONDUCTOR SIZE; 1/0 AWG (ALUMINUM), 1/0 AWG STRANDED (COPPER) MAX. RUN CONDUCTOR SIZE; 8 AWG (ALUMINUM/COPPER/SOLID) MIN. TAP CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Aluminum;Tin Plated Aluminum Alloy |
| Maximum Run Conductor Size | 1/0 AWG (Aluminum), 1/0 AWG Stranded (Copper) |
| Maximum Tap Conductor Size | 1/0 AWG (Aluminum/Copper/Solid) |
| Minimum Pack Quantity | 1 |
| Minimum Run Conductor Size | 2 AWG (Aluminum), 2 AWG Stranded (Copper) |
| Minimum Tap Conductor Size | 8 AWG (Aluminum/Copper/Solid) |
| Model | Type KSA |
| Noun | * |
| Pallet Quantity | 23200 |
| Plated | Y |
| Plating Type | Tin |
| Product Description | TRITAP SERVIT 1/0ST-8SOL |
| Product Keywords | WEBREADY |

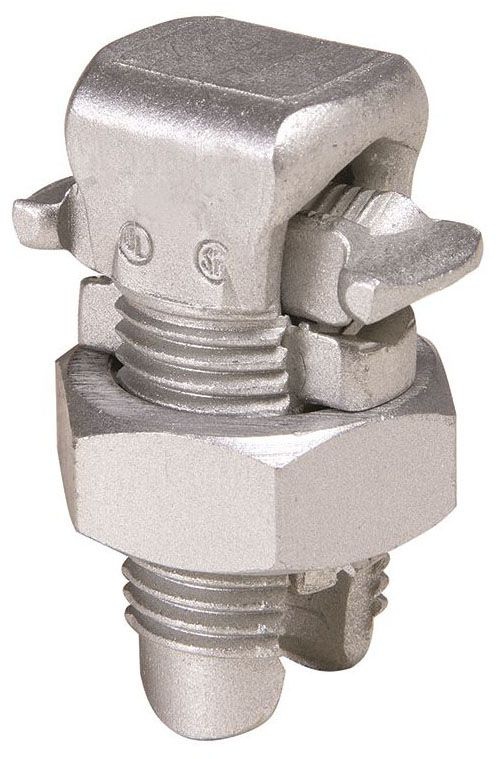

| Product Name | KSA1/0, Aluminum Split Bolt Connector, Tin Plated | |
| ProductLine | BUR |
| Special Features | Features: No Scratch Brushing Required, No Oxide Inhibitor Required, Orients The Conductor, Provides Maximum Pressure And Assures A Secure Connection Of Run And Tap Conductors, Facilitates Piercing The Aluminum Conductor Surface Oxides, UL 486B Listed, 90 DEG C Rated, Provides A Low Contact Resistance, Provides Equal Coefficient Of Expansion Inhibits The Reformation Of Oxides By Producing A Gas-Tight Seal, Provides Improved Retention Of Minimum To Maximum Conductor Combinations, Servit Cover: SC2/0, Conductor Type: Run: Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Tap: Commercial Stranded Aluminum, Commercial Stranded and Solid Copper, Installation Torque: 385 IN-LB, Width: 0.75 IN, Length: 1.92 IN, Cross Flats: 1 IN |
| Standard | UL 486A-486B |
| Temperature Rating | 194 |
| Type | KSA |
| UNSPSC | 39121408 |
| UPC | 78181015300 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
