| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | KVS31 |
| Additional Information | RoHS Compatible; Installation Torque 325 Lb-Inch |
| Application | For Copper, Copperweld |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Burndy;OKLIP[TM] |
| Catalog Number | KVS31 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Copperweld |
| CountryOfOrigin | MX |
| DDCATEGORY | 597 |

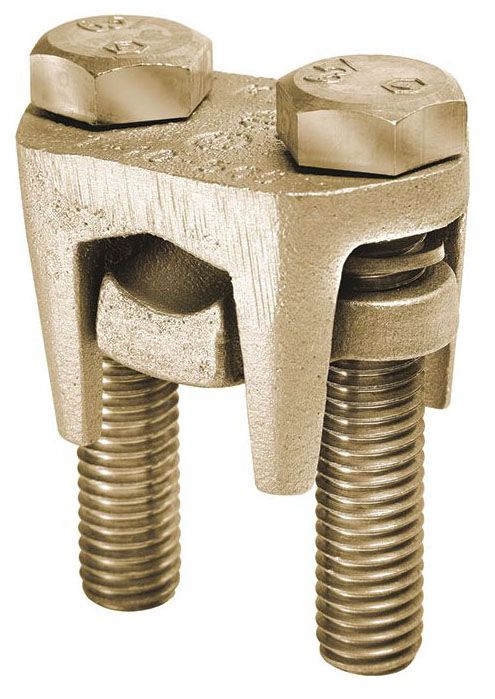

| Description Long | Compact, two-piece, high strength, high copper alloy BURNDY OKLIP recommended for heavy duty connections. Neoprene rings hold DURIUM bolts in place during installation.Installed with ordinary wrench.Recommended tightening torque:325 in-lb. |
| Description Short | Compact 2-piece, high strength, copper alloy with neoprene rings |
| Dimension Height Inch | 2.38 in |
| Dimension Stud Size Inch | 1/2 in |
| Dimension Width Inch | 2.12 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FV Product Family | Power Connectors>Split Bolts>KVS |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| Installation | Two Bolt |
| Installation Torque Recommended In Lb | 325 LBS/in |
| InvoiceDescription | 350R-350T CU 2BLT CONN;350MCM COP 2BLT CONN |
| Item Number | 06279 |
| Long Description | CABLE TAP CONNECTOR, HIGH STRENGTH COPPER ALLOY BODY, DURIUM BOLT, NEOPRENE RING MATERIAL; 250 KCMIL (COPPER) MIN. RUN CONDUCTOR SIZE; (19) 8 AWG STRANDED (COPPERWELD), 250 KCMIL TYPE V (COPPERWELD), 350 KCMIL (COPPER) MAX. RUN CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Copper;High Strength Copper Alloy Body, Durium Bolt, Neoprene Ring |
| Maximum Run Conductor Size | (19) 8 AWG Stranded (Copperweld), 250 KCMIL Type V (Copperweld), 350 KCMIL (Copper) |
| Maximum Tap Conductor Size | (19) 8 AWG Stranded (Copperweld), 250 KCMIL Type V (Copperweld), 350 KCMIL (Copper) |
| Minimum Pack Quantity | 11 |
| Minimum Run Conductor Size | 250 KCMIL (Copper) |
| Minimum Tap Conductor Size | 10 AWG Stranded (Copper) |
| Model | KVS |
| Noun | * |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 350R-350T CU 2BLT CONN |
| Product Keywords | WEBREADY |
| Product Name | KVS31 |
| Product Type | Mechanical |
| ProductLine | BUR |
| Special Features | Features: Compact, Two-Piece, High Strength, High Copper Alloy BURNDY OKLIP Recommended For Heavy Duty Connections, Neoprene Rings Hold DURIUM Bolts In Place During Installation, Installed With Ordinary Wrench, Conductor Type: Run And Tap: Copperweld, Commercial Stranded Copper, Solid Copperweld, Installation Torque: 325 IN-LB, Conductor Spacer: No |
| Standard | RUS |
| Standards Industry Standards Met | RUS |
| Standards RoHS Compliance Status | CM |
| Sub Brand | OKLIP |
| Trade Name | OKLIP |
| Type | KVS, Compact |
| UL Listed | Yes |
| UNSPSC | 39121408 |
| UPC | 78181006279 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
