| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | QDA26 |
| Additional Information | RoHS Compatible; Installation Torque 180 Lb-Inch |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Studs |
| Approval | UL 468-A, UL 468-B |
| Base Price | 0.0000 |
| Brand Name | QIKLUG[TM] |
| Catalog Number | QDA26 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| CountryOfOrigin | MX |
| DDCATEGORY | 597 |

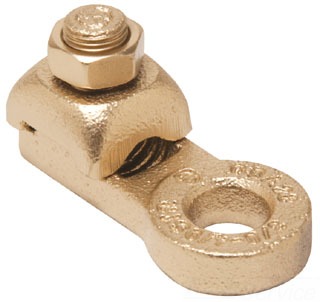

| Description Long | "Copper Terminal, 1 Hole, 1/0-2/0 AWG (Str), 1/2"" Stud, 1 Screw." |
| Description Short | "Copper Terminal, 1 Hole, 1/0-2/0 AWG (Str), 1/2"" Stud, 1 Screw" |
| Description Slang | Mechanical lugs for one or more cables |
| Dimension Bolt Size Fraction | 1/2 |
| Dimension Cross Flats Inch | 0.69 in |
| Dimension Height Fraction | 1-3/16 |
| Dimension Height Inch | 1.19 in |
| Dimension Hole Size Fraction | 9/16 |
| Dimension Hole Size Inch | 0.56 in |
| Dimension Hole Size Mm | 14 mm |
| Dimension L Length Overall Mm | 64 mm |
| Dimension Length Overall Inch | 2.50 in |
| Dimension Pad Width Inch | 1.25 in |
| Dimension Stud Size Inch | 1/2 |
| Dimension Width Inch | 1.25 in |
| Dimension Width Mm | 32 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Compact, high copper alloy terminal;Joins a wide range of cable to equipment studs;One-wrench installation;Provides low contact resistance when gripped between two contact nuts |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Product Family | MECHANICAL |
| FV Trade Name | QIKLUG |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 180 LBS/in |
| InvoiceDescription | 1/0 STR - 2/0 STR 1 HOLE;2/0AWG COP 1H TERM LUG |
| Item Number | 32516 |
| Long Description | CONDUCTOR TERMINAL LUG, COPPER ALLOY MATERIAL; 2.5 INCH OVERALL LENGTH; 1/0 AWG STRANDED, 100 NAVY MIN. CONDUCTOR SIZE; 2/0 AWG STRANDED, 125 NAVY MAX. CONDUCTOR SIZE; COPPER CONDUCTOR MATERIAL; UL 468-A, UL 468-B APPROVAL; 1 CONDUCTOR(S) |
| MSDS Form Number | * |
| Material | Copper;Copper Alloy |
| Maximum Conductor Size | 2/0 AWG Stranded, 125 Navy |
| Minimum Conductor Size | 1/0 AWG Stranded, 100 Navy |
| Minimum Pack Quantity | 1 |
| Model | QDA |
| Noun | * |
| Number Of Conductors | 1 |
| Number Of Pad Holes | 1 |
| Overall Length | 2.5 Inch |
| Pad Size | 1.25 Inch W x 0.25 Inch Thk |
| Pad Type | Equipment Stud |
| Pallet Quantity | 6720 |
| Physical Attribute Number Of Screws | 1 |
| Physical Attribute Screw Type | Hexagonal Bolt |
| Plated | N |
| Plating Type | Unplated | |
| Product Description | 1/0 STR - 2/0 STR 1 HOLE |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | BUR |
| Screw Type | Stud Hex Nut |
| Special Features | Features: Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Studs, Provides Low Contact Resistance When Gripped Between Two Contact Nuts, One Wrench Installation, Dimension T: 5/16 IN, Stud/bolt Hole Size: 1/2 IN, Dimension K: 9/16 IN, Tongue Width: 1-1/4 IN, Conductor Type: Run: Navy, Commercial Stranded Copper, Length: 2-1/2 IN, Installation Torque: 180 IN-LB, Height: 1-3/16 IN |
| Standard | UL 486A-486B |
| Stud Size | 1/2 Inch |
| Type | Bolted Lugs & Terminals |
| UNSPSC | 39121408 |
| UPC | 78181032516 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
