| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | QP10F25X03D |
| Additional Information | RoHS Compatible; Material Tin Plated Brass; Size 0.98 Inch L x 0.29 Inch W; Wire Strip Length 3/8 Inch |
| Application | For quickly connecting or disconnecting a terminal |
| Approval | UL (Canada and US) |
| Base Price | 0.0000 |
| Brand Name | FINGRIP[TM] |
| Catalog Number | QP10F25X03D |
| Certification CSA Approved | No |
| Certification CULus | Yes |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 64110 |
| Commodity Description | Small Terminals & Connectors |
| CountryOfOrigin | TW |
| DDCATEGORY | 596 |

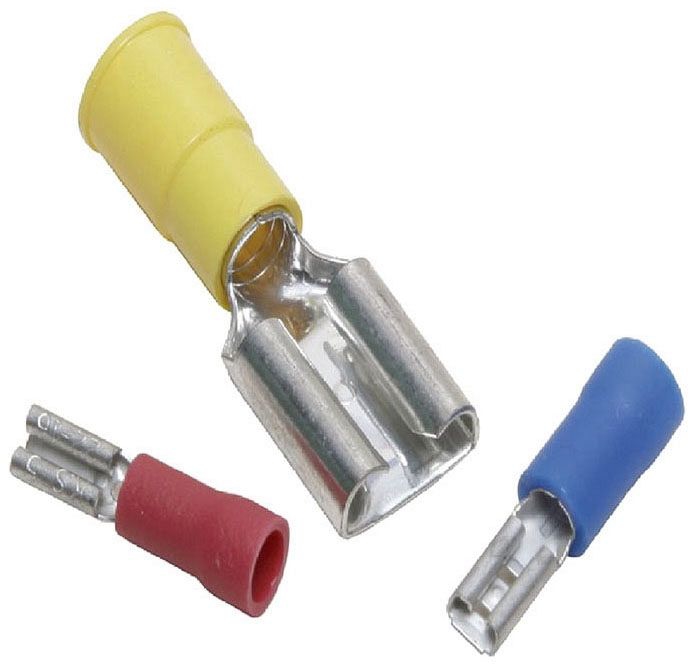

| Description Long | Brass Female Quick Disconnect, 10-12 AWG, Vinyl Insulated, Tin Plated. |
| Description Marketing Copy | QP10F25X03D. |
| Description Short | Vinyl Female Quick Disconnect For 12 - 10 AWG (.25 x .03) |
| Dimension Length Overall Inch | 0.98 in |
| Dimension Strip Length Inch | 3/8 in |
| Dimension Width Inch | 0.25 in |
| Dimension Width Mm | 6 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Sleeved barrel;Insulated connector eliminate the need for post installation insulation;Funnel entry barrrel opening assures quick and easy wire insertion;Dimpled female socket detent ensures firm grip |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Product Family | COMPRESSION |
| FV Standards Industry Standards Met | UL310 |
| FV Trade Name | FINGRIP |
| Families | 596 |
| Family Description | Small Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| Insulation | Y |
| Insulation Type | Vinyl;Vinyl Insulated |
| InvoiceDescription | FEM DISC-12-10AWG-VINYL;10-12 FEM DISCONN |
| Item Number | 29357 |
| Long Description | FEMALE DISCONNECT, BUTTED SEAM, FUNNEL ENTRY BARREL TYPE; YELLOW COLOR; 12 AWG MIN. CONDUCTOR SIZE; 10 AWG MAX. CONDUCTOR SIZE; UL (CANADA AND US) APPROVAL; 105 DEG C TEMPERATURE RATING; VINYL INSULATED INSULATION TYPE; 0.25 INCH X 0.03 INCH TAB SIZE |
| MSDS Form Number | * |
| Material | Brass |
| Maximum Conductor Size | 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Minimum Pack Quantity | 50 |
| Model | QP-F |
| Noun | * |
| Pallet Quantity | 99999 |
| Plated | Y |
| Plating Type | Tin |
| Product Description | FEM DISC-12-10AWG-VINYL |
| Product Keywords | WEBREADY |
| Product Name | QP10F25X03D, Vinyl Female Quick Disconnect For 12 - 10 AWG (.25 x .03) |
| Product Type | TERMINAL |
| ProductLine | BUR |
| Special Features | Features: Butted Seam, Insulated Connectors: Eliminate The Need For Post Installation Insulation, Funnel Entry Barrel Opening: Assures Quick And Easy Wire Insertion, Dimpled Female Socket Detent: Ensures Firm Grip, Mates With Type QP-M Male Disconnects, 600 V Maximum, 105 C Maximum, Size: 0.97 IN Overall Length X 0.23 IN Barrel Length X 0.29 IN Width, Installation Tool: Y10D Tool, Temperature: 105 DEG C Maximum, Nema Tab Size: 0.25 X 032 IN |
| Standard | UL467 |
| Standards Industry Standards Met | UL310 |
| Standards RoHS Compliance Status | CM |
| Tab Size | 0.25 Inch x 0.03 Inch |
| Temperature Rating | 105 Deg C |
| Trade Name | FINGRIP |
| Type | Disconnect Connectors;Butted Seam, Funnel Entry Barrel |
| UL Listed | No |
| UNSPSC | 39121447 |
| UPC | 78181029357 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Maximum | 600 V| |
