| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | SP14 |
| Additional Information | RoHS Compatible; Wire Strip Length 1/4 Inch |
| Application | For Accommodating A Broad Range Of 600 Volt Cables |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | VINYLINK[TM] |
| Cable Insulation Diameter Maximum | 0.180 in |
| Catalog Number | SP14 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Color | Blue |
| Color Code | Blue |
| Commerce Sector | Construction Materials |
| Commodity Code | 64110 |
| Commodity Description | Small Terminals & Connectors |
| Conductor Size | 16 to 14 AWG Solid/Stranded (Copper) |
| CountryOfOrigin | US |
| DDCATEGORY | 596 |
| Description Long | "Copper Splice, 16-14 AWG, 1"" Splice Length, Vinyl Insulated." |
| Description Marketing Copy | SP14. |
| Description Short | Vinyl Splice For 16 - 14 AWG |
| Dimension Diameter Max Size Inch | 0.18 in |
| Dimension L Length Overall Mm | 25 mm |
| Dimension Length Overall Inch | 1.00 in |
| Dimension Outside Diameter Inch | 0.18 in |
| Dimension Strip Length Inch | 1/4 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Manufactured from seamless electrolytic copper tubing to provide maximum conductivity and tensile strength in a high quality design with no seams to split;Funnel entry for easy wire insertion;Electro-tin plating provides durable, long lasting resistance to corrosion |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Product Family | COMPRESSION |
| Families | 596 |
| Family Description | Small Terminals & Connectors |
| Feature Barrel Style | Shrouded |

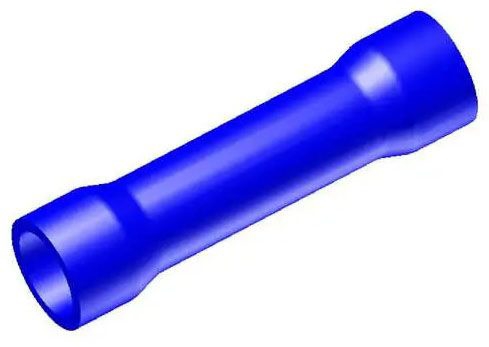

| Image Location | * Image |
| Industry | ELX |
| Insulation | Y |
| Insulation Type | Vinyl;Polyvinyl Chloride Insulated |
| InvoiceDescription | SPLICE- 16- 14 AWG-VINYL;16-14INS BUTT SPLICE |
| Item Number | 71201 |
| Length | 1 Inch |
| Long Description | BUTT SPLICE, BUTT TYPE; SEAMLESS ELECTROLYTIC TIN PLATED COPPER MATERIAL; BLUE COLOR; 1 INCH; 0.18 INCH MAX. INSULATION DIAMETER; UL, CSA APPROVAL; 600 V VOLTAGE RATING; 105 DEG C TEMPERATURE RATING; 16 TO 14 AWG SOLID/STRANDED (COPPER) CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Copper;Seamless Electrolytic Tin Plated Copper |
| Maximum Insulation Diameter | 0.18 Inch |
| Minimum Pack Quantity | 50 |
| Model | SP |
| Noun | * |
| Pallet Quantity | 99999 |
| Plated | Y |
| Plating Type | Tin |
| Product Description | SPLICE- 16- 14 AWG-VINYL |
| Product Keywords | WEBREADY |
| Product Name | SP14, Vinyl Splice For 16 - 14 AWG |
| Product Type | SPLICE |
| ProductLine | BUR |
| Special Features | Features: The Type SP VINYLINK Is A PVC Insulated Seamless Butt Splice, Type SP VINYLINK Is Designed To Accommodate A Broad Range Of 600 Volt Cables, Manufactured From Seamless Electrolytic Copper Tubing: Provides Maximum Conductivity And Tensile Strength, In A High Quality Design With NO Seams To Split, Funnel Entry: Provides Easy Wire Insertion, Electro-Tin Plated: Provides Durable Long Lasting Resistance To Corrosion, Expanded Insulation Support: Lower Inventory Requirements, Red Wire Range Of 22-16: Lower Inventory Requirements, Vinyl Insulator: Economical Means Of Providing High Dielectric Values And Cable Insulation Support, Insulation Support: Yes, Conductor Type: Commercial/Aircraft Stranded Copper, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: MR8G98, MR8-89-1, MR15 Tool, Color Code: Blue, Wire Strip Length: 1/4 IN |
| Standard | Buy American Act Compliant (All status valid till December 2024) |
| Standards Industry Standards Met | UL486 |
| Standards RoHS Compliance Status | CM |
| Temperature Rating | 105 C |;105 Deg C |
| Type | SP;Butt |
| UNSPSC | 39121449 |
| UPC | 78181071201 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 V |
