| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YA1CLBOX |
| Additional Information | RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 15/16 Inch; Temperature Rating 90 Deg C; With Inspection Window |
| Application | Wire Termination |
| Approval | UL, CSA |
| Barrel Length | 0.88 Inch |
| Barrel Type | Standard, Straight, Non-Insulated |
| Base Price | 0.0000 |
| Brand Name | HYLUG , HYDENT |
| Catalog Number | YA1CLBOX |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Color | Green |
| Color Code | Green |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 1 AWG Stranded (Code), 75 (Navy) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

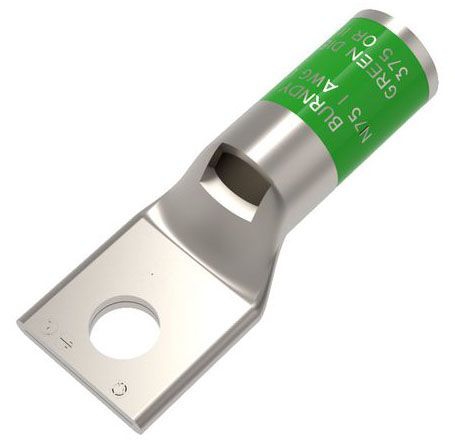

| Description Long | 1 AWG CU, One Hole, 5/16 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90 Up to 35kV, GREEN Color Code, 11 or 375 Die Index. |
| Description Short | 1 AWG, CU, 1 Hole, 5/16 Stud, Standard Barrel, Inspection Window |
| Description Slang | TERM CODE STD BBL TNBULK |
| Die Index | 11;11/375 |
| Dimension B Length Fraction | 7/8 in |
| Dimension B Length Inch | 0.88 in |
| Dimension Bolt Hole Size Inch | 0.33 in |
| Dimension Bolt Size Fraction | 5/16 |
| Dimension Bolt Size Inch | 0.3125 |
| Dimension Hole Size Fraction | 5/16 |
| Dimension Hole Size Inch | 0.38 |
| Dimension Hole Size Mm | 10 mm |
| Dimension L Length Overall Mm | 49 mm |
| Dimension Length Overall Inch | 1.94 in |
| Dimension N Inch | 0.34 in |
| Dimension Outside Diameter Inch | 0.46 in |
| Dimension Pad Width Inch | 0.68 in |
| Dimension Strip Length Inch | 15/16 |
| Dimension Stud Size Fraction | 5/16 |
| Dimension Stud Size Inch | 5/16 |
| Dimension Z Inch | 0.36 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands;Standard barrel length is recommended for installations with limited space availability;Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements;Connectors are clearly marked with stamping and barrel color coding |
| FV BuyAmericanCompliant | Yes | |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered |
| Feature Barrel Type | Standard |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1STR CU 1-HOLE SHORT, 5/;1AWG COP 1H LUG |
| Item Number | 55125 |
| Long Description | COMPRESSION TERMINAL, ELECTRO TIN PLATED COPPER MATERIAL; GREEN COLOR; 1.94 INCH OVERALL LENGTH; 0.88 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 35 KILOVOLT VOLTAGE RATING; 1 AWG STRANDED (CODE), 75 (NAVY) CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | COPPER;Electro Tin Plated Copper |
| Model | YA-L |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 1.94 Inch |
| Pad Size | 0.68 Inch Width x 0.1 Inch Thickness |
| Product Description | 1STR CU 1-HOLE SHORT, 5/ |
| Product Keywords | WEBREADY |
| Product Name | Cable or wire lugs |
| ProductLine | BUR |
| Special Features | Features: UL Listed 90 DEG C, 600 V To 35 KV 45 DEG, 90 DEG Angles Are Available, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, OUR840, MD7-34R Mechanical: W1CVT (1), W1CRT-1 (1), X1CRT-1 (1), BCT500HS, Y500CTHS Hydraulic: W1CVT (1),W1CRT-1 (1), X1CRT-1 (1), W29VT (4), Y35, Y39, Y750, Y46, PAT750 Hydraulic: U1CRT-1 (1), U4CABT (1), Dieless: Y1MRTC (2), MY29-3 (1), MY29-11 (1), MRC840 (1), Y644HS (1), Y81KFT (1), Y81KFTMBH (1), PAT81KFT-18V (1), Wire Strip Length: 15/16 IN, Conductor Type: Commercial Stranded Copper, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Die Index: 11 Element A |
| Standard | UL 486A-486B |
| Stud Size | 5/16 Inch |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC | 78181055125 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 35 Kilovolt |
