BUR YA1CTC38

1 AWG CODE CU COMPRESSION TERMINAL

Page Loading...
BURNDY (FCI BURNDY)
1 AWG CODE CU COMPRESSION TERMINAL

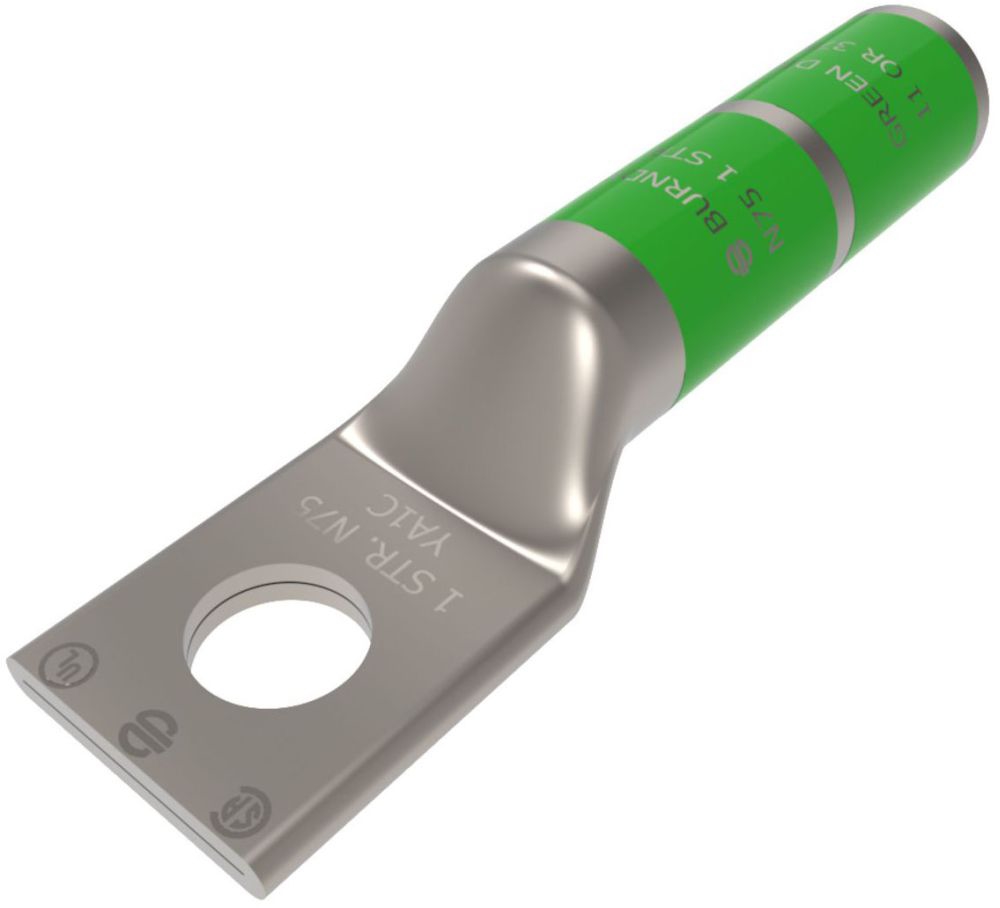

Mouse over image to zoom, click to enlarge

Description:
1 AWG CODE CU COMPRESSION TERMINAL

UPC:  78181053267

Part Number: YA1CTC38

Status:  UNKNOWN

Retail Price:  $17.61 / EA
Your Price:  $6.92 / EA


Quantity  EA

Specifications

Manufacturer Name BURNDY (FCI BURNDY)
MfgPartNo YA1CTC38
Application Wire Termination
Base Price 0.0000
Certification CSA Approved Yes
Certification CULus No
Certification ETL No
Certification UL Recognized No
Color Code Green
CountryOfOrigin US
DDCATEGORY 0
Description Long 1 AWG CU, One Hole, 3/8 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV,GREEN Color Code, 11 or 375 Die Index.
Description Short 1 AWG, CU, 1 Hole, 3/8 Stud, Long Barrel
Description Slang TERM CODE LG BBL TN TEL
Die Index 11
Dimension B Length Inch 1.38 in
Dimension Bolt Size Fraction 3/8
Dimension Bolt Size Inch 0.38
Dimension Hole Size Fraction 3/8
Dimension Hole Size Inch 0.41
Dimension Hole Size Mm 10.4 mm
Dimension L Length Overall Mm 66 mm
Dimension Length Overall Inch 2.58 in
Dimension Pad Width Inch 0.68 in
Dimension Strip Length Inch 1-7/16
Dimension Stud Size Fraction 3/8
Dimension Stud Size Inch 3/8
EU RoHS Indicator Contact Manufacturer
FEATURES Bullets Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands;Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection;Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements;Connectors are clearly marked with stamping and barrel color
FV BuyAmericanCompliant Contact Manufacturer
FV Conductor Copper Str Size Range 1 AWG
FV Dimension Hole Size Inch 0.41
FV Physical Attribute Tongue Angle Straight
FV Product Family COMPRESSION
FV Trade Name HYLUG
Families 0
Family Description UnCategorized
Feature Barrel Style Chamfered
Feature Barrel Type Long
InvoiceDescription 1 AWG CODE CU COMPRESSION TERMINAL;1AWG LUG
Material Copper
Minimum Pack Quantity 20 |
Product Description 1 AWG CODE CU COMPRESSION TERMINAL
Product Keywords WEBREADY
Product Name UnCategorized
ProductLine BUR
Special Features No inspection window is ideal for more corrosive environments as the barrel transition is not open
Standard UL 486A-486B
Type YA-TC
UPC 78181053267

Resources

CatalogNumber YA1CTC38
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
