BUR YA252N

1/0 CU 2-HOLE LONG NEMA

Page Loading...
BURNDY (FCI BURNDY)
1/0 CU 2-HOLE LONG NEMA

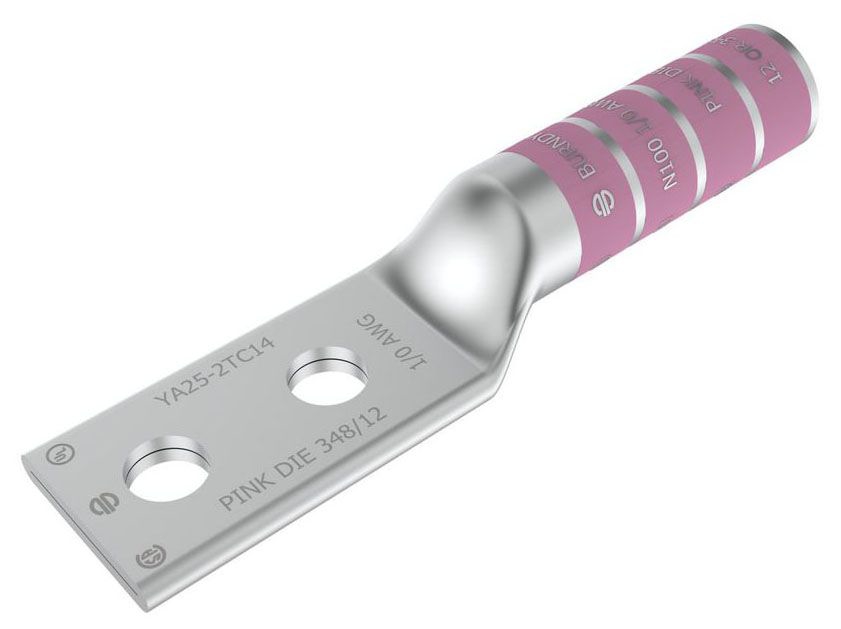

Mouse over image to zoom, click to enlarge

Description:
1/0 CU 2-HOLE LONG NEMA

UPC:  78181050226

Part Number: YA252N

UNSPSC: 39121405

Status:  UNKNOWN

Retail Price:  $21.17 / EA
Your Price:  $4.45 / EA


Quantity  EA

Specifications

Manufacturer Name BURNDY (FCI BURNDY)
MfgPartNo YA252N
Additional Information RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-7/16 Inch; Temperature Rating 90 Deg C; Less Inspection Window
Application Wire Termination
Approval UL, CSA
Barrel Length 1.38 Inch
Barrel Type Long, Straight
Base Price 0.0000
Brand Name Burndy;HYLUG , HYDENT
Catalog Number YA252N
Certification CSA Approved Yes
Certification CULus No
Certification ETL No
Certification UL Recognized No
Color Pink
Color Code Pink
Commerce Sector Construction Materials
Commodity Code 64120
Commodity Description Large Terminals & Connectors
Conductor Material Copper
Conductor Size 1/0 AWG Stranded (Code), 100 (Navy)
CountryOfOrigin US
DDCATEGORY 597
Die Index 12
Dimension L Length Overall Mm 122 mm
Dimension Length Overall Inch 4.81 in
Dimension N Inch 0.63 in
Dimension Outside Diameter Inch 0.51 in
Dimension Pad Width Inch 0.83 in
Directory CIS
EU RoHS Indicator Yes
FV Conductor Copper Str Size Range 1/0 AWG
FV Dimension Hole Size Inch 0.56
FV Physical Attribute Tongue Angle Straight
FV Physical Attribute Tongue Type Standard
FV Product Family COMPRESSION
FV Standards Industry Standards Met UL 486A-486B
FV Trade Name HYLUG
Families 597
Family Description Large Terminals & Connectors
Feature Barrel Type Long
Image Location * Image
Industry ELX
InvoiceDescription 1/0 CU 2-HOLE LONG NEMA;1/0AWG COP 2H LUG
Item Number 50226
Long Description COMPRESSION TERMINAL, ELECTRO TIN PLATED COPPER MATERIAL; PINK COLOR; 4.81 INCH OVERALL LENGTH; 1.38 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 35 KILOVOLT VOLTAGE RATING; 1/0 AWG STRANDED (CODE), 100 (NAVY) CONDUCTOR SIZE
MSDS Form Number *
Material Copper;Electro Tin Plated Copper
Minimum Pack Quantity 10
Model YA-2N
Noun *
Number Of Pad Holes 2
Overall Length 4.81 Inch
Pad Hole Spacing 1-3/4 Inch
Pad Size 0.83 Inch Width x 0.11 Inch Thickness
Plated Y
Plating Type Electro-Tin plated |
Product Description 1/0 CU 2-HOLE LONG NEMA
Product Keywords WEBREADY
Product Name Compression Terminal
Product Type TERMINAL
ProductLine BUR
Rating KVA 35 kV
Special Features Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Die Index: 12, Wire Strip Length: 1-7/16 IN, Finish: Electro-Tin Plated, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W25VT, W25RT, X25RT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W25VT, W25RT, X25RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U25RT, U2CABT Die, (2), Y46 Tool, U25RT, U2CABT Die With PUADP-1 Adapter, (2), Color Code: Pink, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), MRC840 Tool, (4), Conductor Type: Commercial Stranded Copper
Standard UL 486A-486B
Stud Size 1/2 Inch
Sub Brand HYLUG
Trade Name HYLUG
Type Long Barrel, Tin Plated
UL Listed Yes
UNSPSC 39121405
UPC 78181050226
Vendor Name BURNDY PRODUCTS
Vendor Number 781810
Vendor Short Name BUR
Voltage Maximum 35,000
Voltage Rating 35,000 V;35 Kilovolt

Resources

CatalogNumber YA252N
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
