BURNDY (FCI BURNDY)

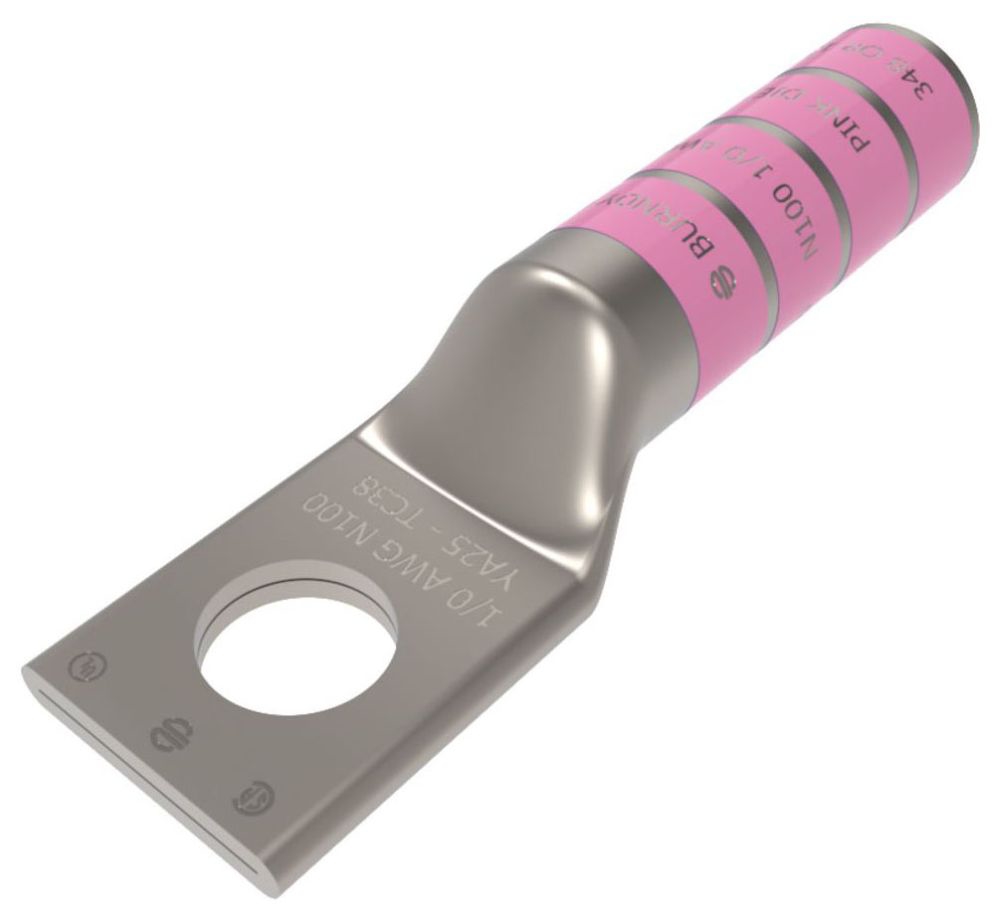

CU HYLUG - 1/0 STR - 3/8

Mouse over image to zoom, click to enlarge

Description:
CU HYLUG - 1/0 STR - 3/8

UPC:  78181001967

Part Number: YA25TC38

UNSPSC: 39121405

Status:  UNKNOWN

Retail Price:  $13.52 / EA
Your Price:  $6.37 / EA


Quantity  EA

Specifications

Manufacturer Name BURNDY (FCI BURNDY)
MfgPartNo YA25TC38
Additional Information UNINSULATED
Application Wire Termination
Approval UL 467, CSA
Barrel Length 1.38 Inch
Barrel Type Long, Standard, Straight
Base Price 0.0000
Brand Name Burndy;HYLUG[TM]
Catalog Number YA25TC38
Certification CULus No
Certification ETL No
Certification UL Recognized No
Color Pink
Color Code Pink
Commerce Sector Construction Materials
Commodity Code 64120
Commodity Description Large Terminals & Connectors
Conductor Material Copper
Conductor Size 1/0 AWG Stranded (Code)
CountryOfOrigin US
DDCATEGORY 597
Die Index 12
Dimension D Inch 0.83 in
Dimension Hole Size Fraction 3/8
Dimension Hole Size Inch 0.41
Dimension N Inch 0.41 in
Dimension Outside Diameter Inch 0.51 in
Dimension Pad Width Inch 0.75 in
Dimension Strip Length Inch 1-7/16 |
Directory CIS
EU RoHS Indicator Yes
FV Conductor Copper Str Size Range 1/0 AWG
FV Dimension Hole Size Inch 0.41
FV Physical Attribute Tongue Angle Straight
FV Physical Attribute Tongue Type Standard
FV Product Family COMPRESSION
FV Standards Industry Standards Met UL467
FV Trade Name HYLUG
Families 597
Family Description Large Terminals & Connectors
Feature Barrel Type Long
Image Location * Image
Industry ELX
InvoiceDescription CU HYLUG - 1/0 STR - 3/8;1/0AWG 1H LUG
Item Number 01967
Long Description COMPRESSION TERMINAL, ELECTRO TIN PLATED COPPER MATERIAL; PINK COLOR; 2.61 INCH OVERALL LENGTH; 1.38 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL 467, CSA APPROVAL; 600 VOLT TO 35 KILOVOLT VOLTAGE RATING; 1/0 AWG STRANDED (CODE) CONDUCTOR SIZE
MSDS Form Number *
Material Copper;Electro Tin Plated Copper
Minimum Pack Quantity 1
Model YA-TC
Noun *
Number Of Pad Holes 1
Overall Length 2.61 Inch
Pad Size 0.75 Inch Width x 0.12 Inch Thickness
Plated Y
Plating Type Tin - Electro Plated
Product Description CU HYLUG - 1/0 STR - 3/8
Product Keywords WEBREADY
Product Name Compression Terminal
Product Type TERMINAL
ProductLine BUR
Rating KVA 35 kV
Special Features Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 12, Finish: Electro-Tin Plated, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Wire Strip Length: 1-7/16 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W25VT, W25RT, X25RT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W25VT, W25RT, X25RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U25RT, U2CABT Die, (2), Y46 Tool, U25RT, U2CABT Die With PUADP-1 Adapter, (2), Color Code: Pink, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), MRC840 Tool, (4), Conductor Type: Commercial Stranded Copper
Standard UL 486A-486B
Stud Size 3/8 Inch
Sub Brand HYLUG
Trade Name HYLUG
Type Long Barrel, Tin Plated
UNSPSC 39121405
UPC 78181001967
Vendor Name BURNDY PRODUCTS
Vendor Number 781810
Vendor Short Name BUR
Voltage Maximum 35,000
Voltage Rating 35,000 V;600 Volt to 35 Kilovolt
